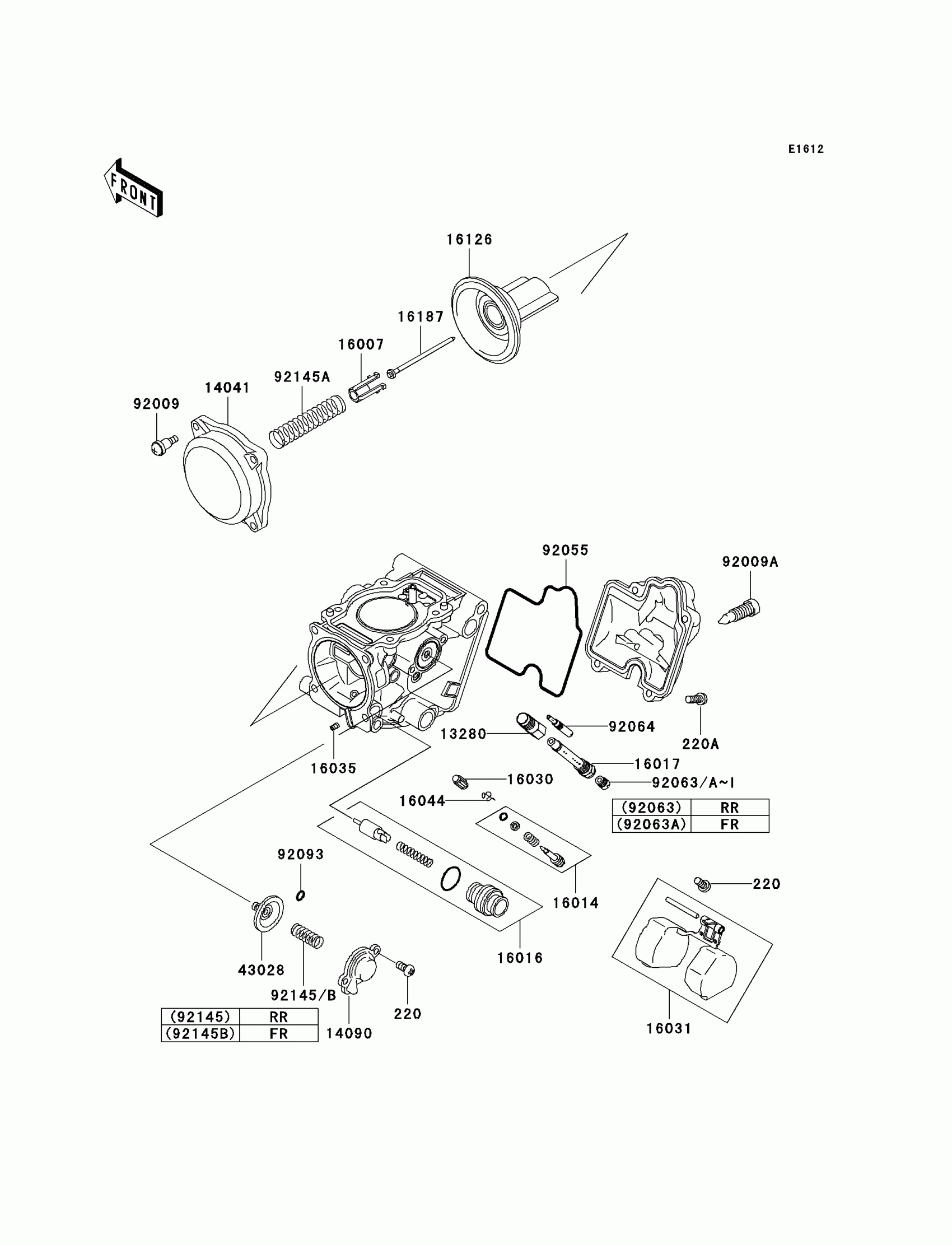

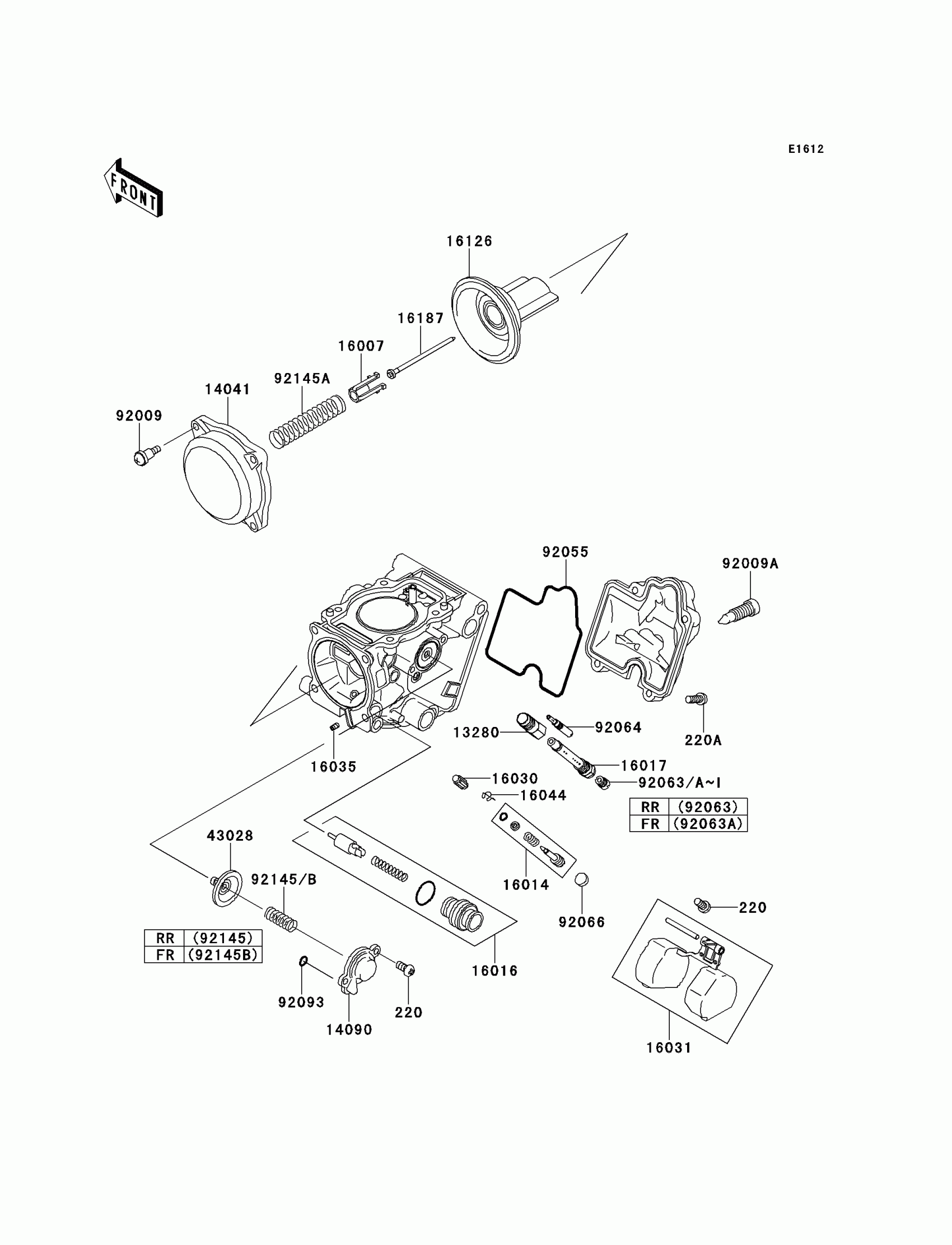

Find the part on the Carburetor Parts diagram for your 2005 Kawasaki KFX700, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki KFX700 Carburetor Parts Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

220

SCREW-PAN-CROS,4X8

220D0408

1
Out of stock

13280

HOLDER,JET

13280-1096

1
Out of stock

14041

CAP-CHAMBER,MIXING

14041-1090

1
Out of stock

14090

COVER,AIR CUT VALVE

14090-1984

1
Out of stock

16007

SEAT-SPRING,THROTTLE VALVE

16007-1120

1
Out of stock

16014

SCREW-PILOT AIR

16014-1105

1
Out of stock

16016

PLUNGER

16016-1117

1
Out of stock

16017

JET-NEEDLE

16017-1441

1
Out of stock

16030

VALVE-FLOAT

16030-1007

1
Out of stock

16031

FLOAT

16031-1097

1
Out of stock

16035

JET-AIR,LEAK

16035-1055

1
Out of stock

16044

CLAMP,FLOAT VALVE

16044-007

1
Out of stock

16126

VALVE,VACUUM

16126-1226

1
Out of stock

16187

NEEDLE-JET,NBZH

16187-0021

1
Out of stock

43028

DIAPHRAGM,AIR CUT VALVE

43028-1085

1
Out of stock

92009

SCREW,4X4.4

92009-1549

1
Out of stock

92009A

SCREW,DRAIN,M6X0.75

92009-1551

1
Out of stock

92055

RING-O,FLOAT CHAMBER

92055-1589

1
Out of stock

92063

JET-MAIN,#140

92063-1013

1
Out of stock

92063A

JET-MAIN,#135

92063-1014

1
Out of stock

92063B

JET-MAIN,#138

92063-1015

—
Out of stock

92063C

JET-MAIN,#142

92063-1016

—
Out of stock

92063D

JET-MAIN,#145

92063-1017

—
Out of stock

92063E

JET-MAIN,#125

92063-1069

—
Out of stock

92063F

JET-MAIN,#120

92063-1072

—
Out of stock

92063G

JET-MAIN,#128

92063-1074

—
Out of stock

92063H

JET-MAIN,#130

92063-1075

—
Out of stock

92063I

JET-MAIN,#132

92063-1076

—
Out of stock

92064

JET-PILOT,#40

92064-0005

1
Out of stock

92093

SEAL-"U"RING

92093-1046

1
Out of stock

92145

SPRING,AIR CUT VALVE,RR

92145-0097

1
Out of stock

92145A

SPRING,VACUUM VALVE

92145-1227

1
Out of stock

92145B

SPRING,AIR CUT VALVE

92145-1450

1
Out of stock

220A

SCREW-PAN-CROS,4X14

220D0414

1
Out of stock
