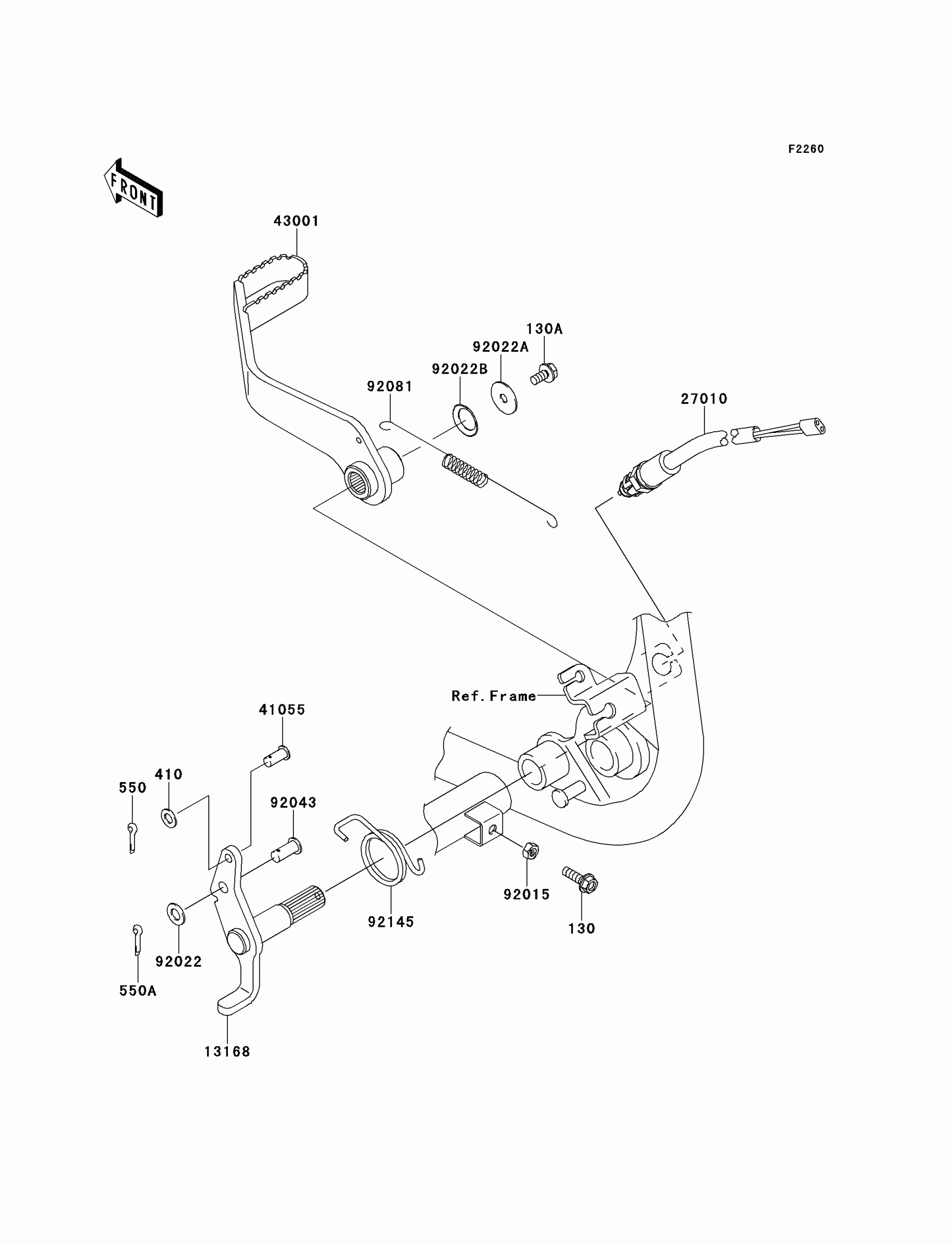

Kawasaki KFX700 Brake Pedal Diagram

Description

Price

130

BOLT-FLANGED,6X20

130G0620

Unavailable

130A

BOLT-FLANGED,6X12

130J0612

Unavailable

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

550

PIN COTTER 1.2X10

550D1210

$1.66

550A

PIN COTTER 2.0X15

550D2015

Unavailable

13168

LEVER

13168-0014

$53.35

27010

SWITCH,BRAKE

27010-1494

$51.47

41055

PIN BRAKE CONNECT ROD

41055-003

$8.78

43001

LEVER-BRAKE,PEDAL,G.GRAY

43001-0011-HN

$70.45

92015

NUT,6MM

92015-1410

$3.53

92022

WASHER,8.5X16X1.2

92022-1582

$0.81

92022A

WASHER,6.5X24X2

92022-1690

$2.99

92022B

WASHER,SPRING,T=0.3

92022-1943

$4.06

92043

PIN,8X16

92043-1013

Unavailable

92081

SPRING,BRAKE SWITCH

92081-1565

$7.47

92145

SPRING,BRAKE PEDAL RETURN

92145-1534

$5.69
