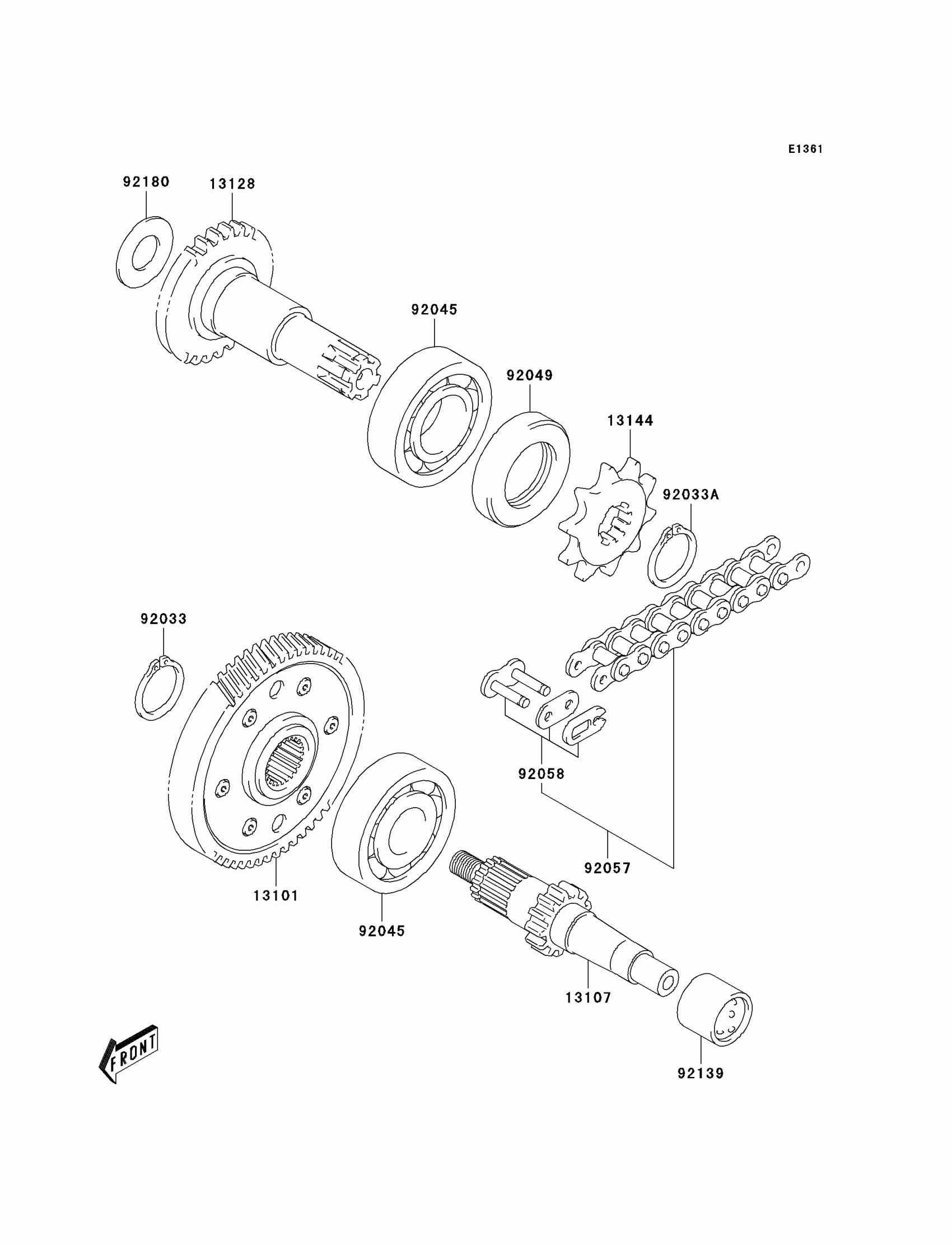

Kawasaki KFX50 Transmission Diagram

Description

Price

13101

GEAR-ASSY,PRIMARY DRIVEN

13101-S001

$270.79

13107

SHAFT,COUNTER

13107-S003

$110.72

13128

SHAFT-TRANSMISSION OUTPUT

13128-S006

$158.11

13144

SPROCKET-OUTPUT,10T

13144-S003

$16.34

92033

RING-SNAP,DRIVEN GEAR

92033-S026

Unavailable

92033A

RING-SNAP,ENGINE SPROCKET

92033-S027

Unavailable

92045

BEARING-BALL,17X40X12

92045-S035

$17.90

92049

SEAL-OIL,CRANKSHAFT OIL,LH

92049-S028

$7.56

92057

CHAIN,DRIVE 78LJ

92057-S008

$20.12

92058

JOINT-CHAIN

92058-S002

$5.90

92139

BUSHING,COUNTER SHAFT

92139-S009

$4.97

92180

SHIM,17X30X1.0

92180-S014

$2.81
