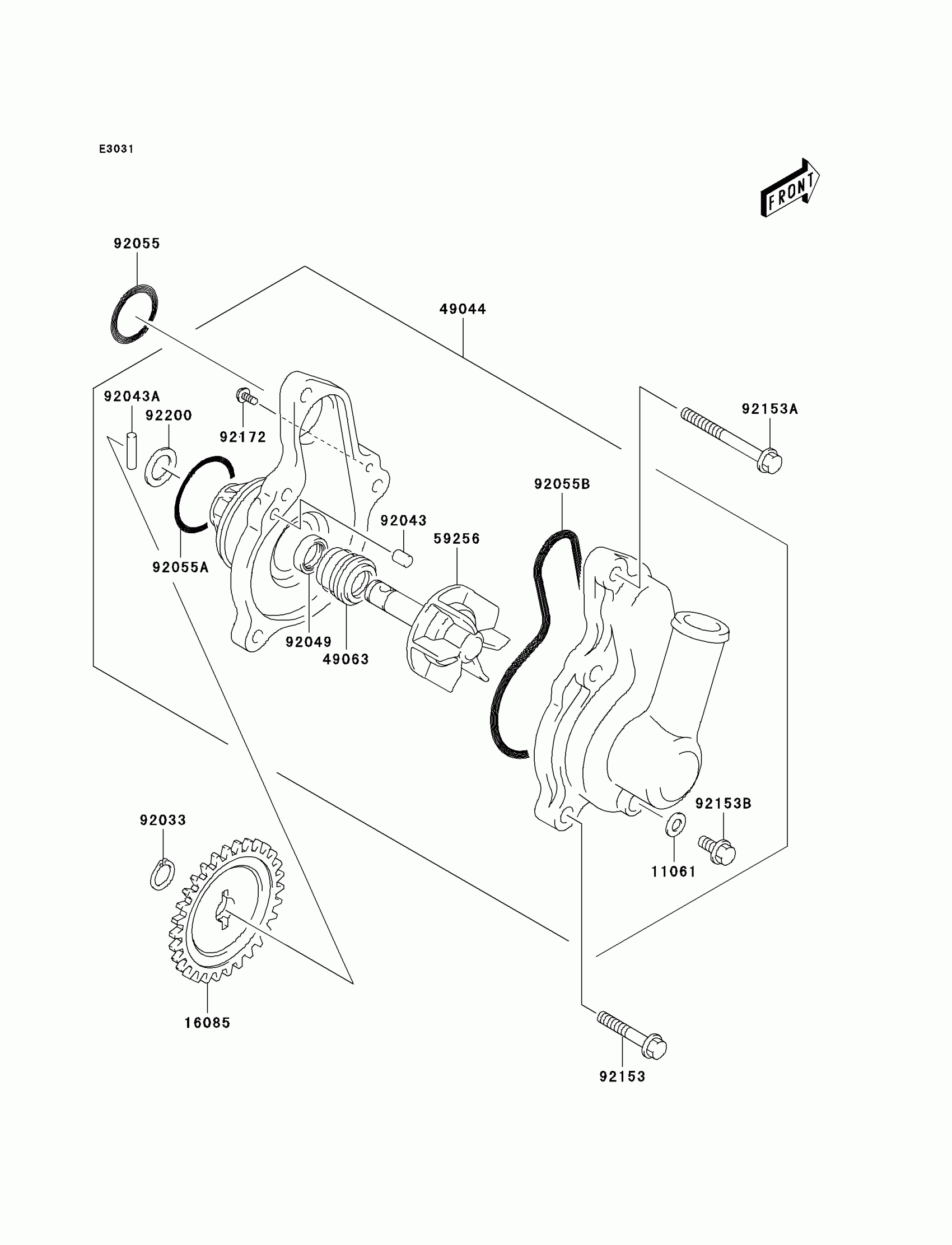

Kawasaki KFX400 Water Pump Diagram

#

Description
Price

11061

GASKET

11061-S111

$3.53

16085

GEAR,WATER PUMP

16085-S005

$39.66

49044

PUMP-WATER

49044-S007

$212.37

49063

SEAL-MECHANICAL,WATER PUMP

49063-S001

$33.69

59256

IMPELLER

59256-S005

$51.33

92033

RING-SNAP

92033-S001

$1.93

92043

PIN

92043-S071

$2.81

92043A

PIN

92043-S072

$3.53

92049

SEAL-OIL

92049-S071

$5.61

92055

RING-O,D=2.4

92055-S007

$1.88

92055A

RING-O

92055-S015

$18.76

92055B

RING-O

92055-S119

$8.54

92153

BOLT,6X30

92153-S261

$2.90

92153A

BOLT,CLUTCH COVER

92153-S262

$2.90

92153B

BOLT

92153-S468

$3.53

92172

SCREW

92172-S283

$2.81

92200

WASHER

92200-S275

$3.53
