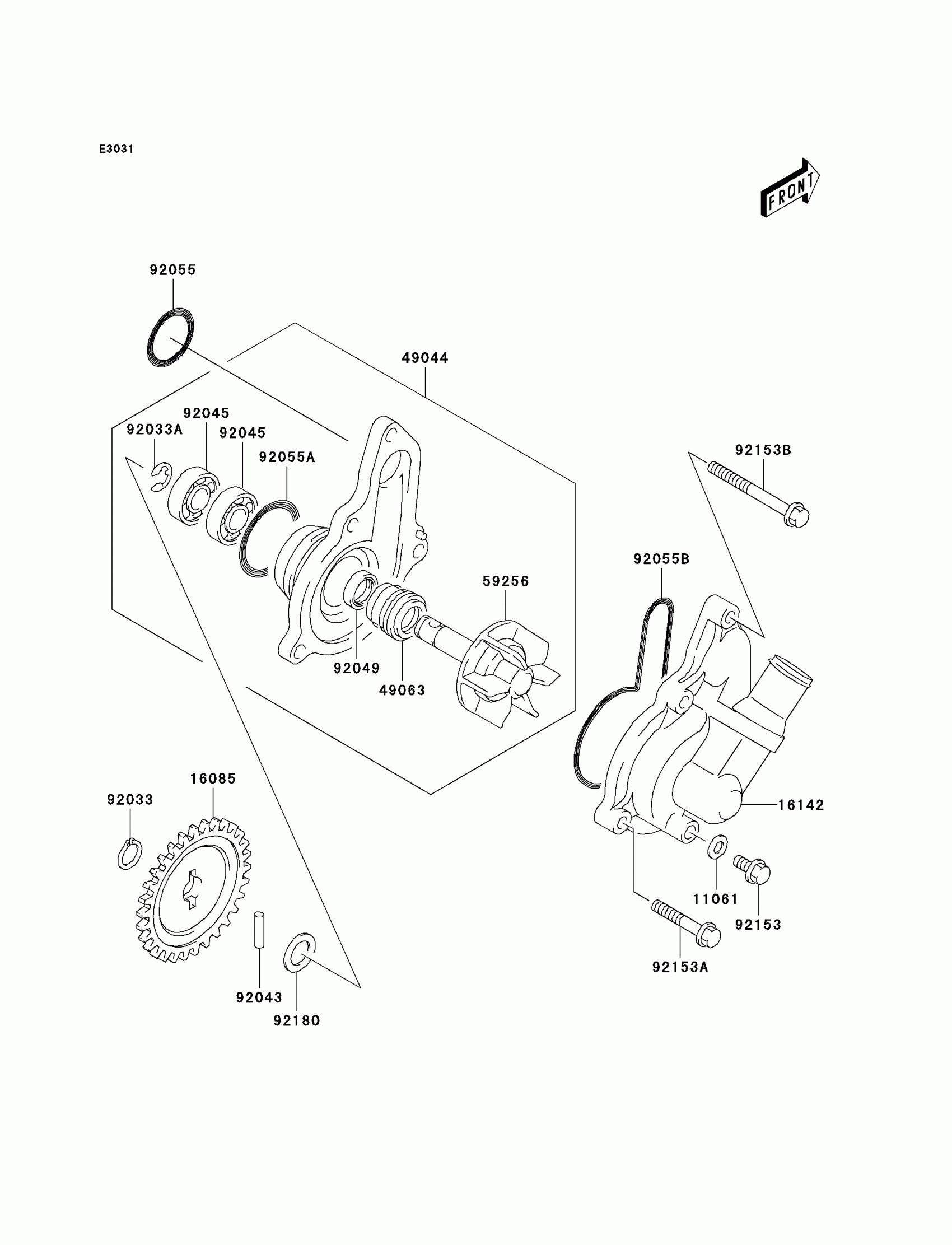

Kawasaki KFX400 Water Pump(A1/A2) Diagram

Description

Price

11061

GASKET

11061-S045

$1.28

16085

GEAR,WATER PUMP

16085-S005

Unavailable

16142

COVER-PUMP

16142-S002

$83.07

49044

PUMP-WATER

49044-S004

$195.95

49063

SEAL-MECHANICAL,WATER PUMP

49063-S004

$33.69

59256

IMPELLER

59256-S003

$44.24

92033

RING-SNAP

92033-S001

$1.93

92033A

RING-SNAP

92033-S006

Unavailable

92043

PIN,WATER PUMP

92043-S039

$1.49

92045

BEARING-BALL

92045-S046

$20.58

92049

SEAL-OIL

92049-S054

$8.04

92055

RING-O,D=2.4

92055-S007

$1.88

92055A

RING-O

92055-S015

$18.76

92055B

RING-O,WATER PUMP

92055-S066

$9.14

92153

BOLT

92153-S143

$1.42

92153A

BOLT,6X30

92153-S261

$2.90

92153B

BOLT,CLUTCH COVER

92153-S262

Unavailable

92180

SHIM,10X18X0.5

92180-S001

$2.05
