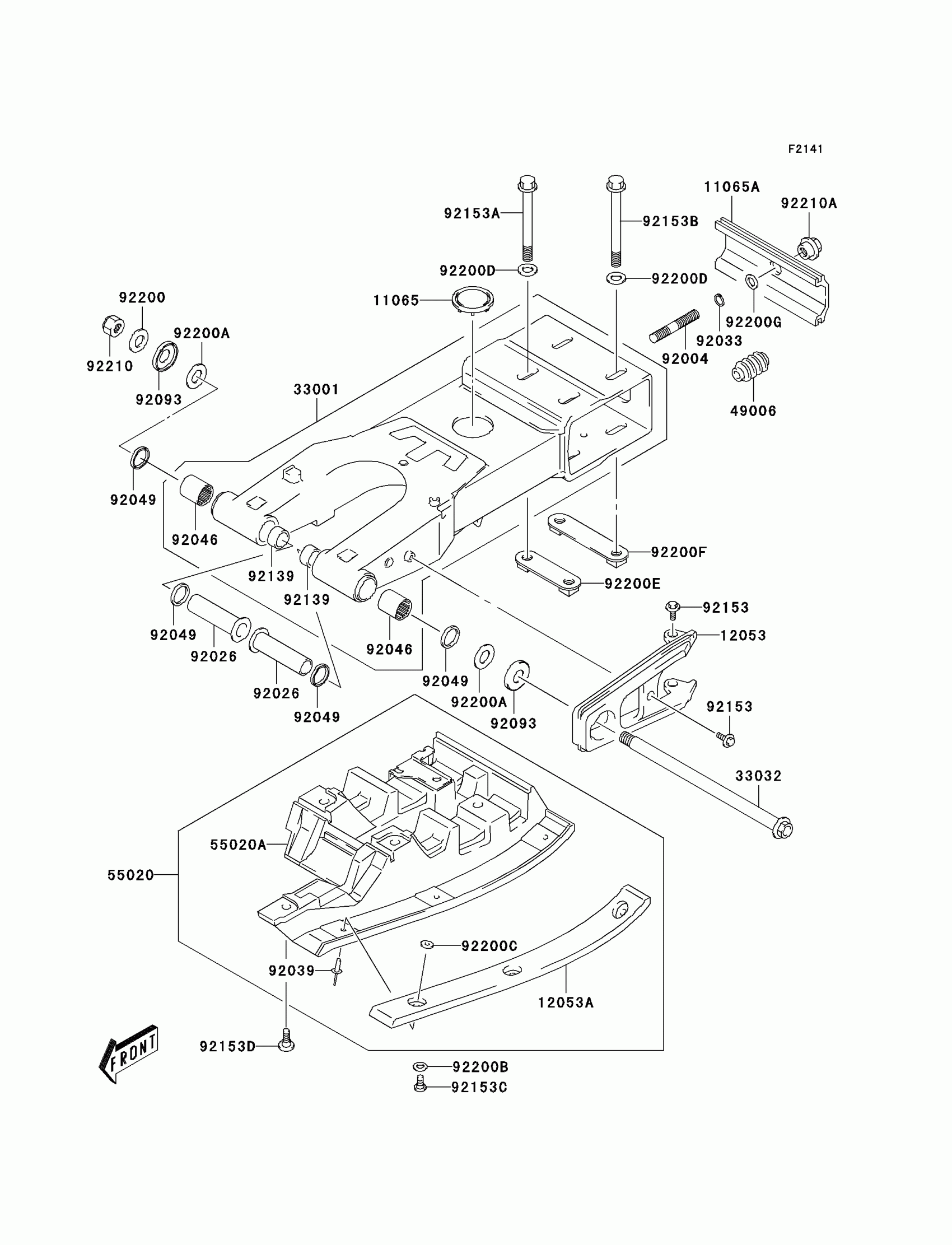

Kawasaki KFX400 Swingarm Diagram

#

Description
Price

11065

CAP,SWINGING ARM

11065-S038

$13.25

11065A

CAP,CHAIN ADJUSTER

11065-S064

$69.55

12053

GUIDE-CHAIN

12053-S017

$31.60

12053A

GUIDE-CHAIN

12053-S024

$71.71

33001

ARM-COMP-SWING

33001-S016

$1,027.91

33032

SHAFT-SWING ARM

33032-S007

$59.93

49006

BOOT

49006-S038

$6.17

55020

GUARD,SWING ARM

55020-S035

$159.67

55020A

GUARD,SWING ARM

55020-S036

$81.41

92004

STUD,CHAIN ADJUSTER

92004-S014

$5.32

92026

SPACER

92026-S100

$47.24

92033

RING-SNAP

92033-S002

$2.39

92039

RIVET

92039-S011

$3.68

92046

BEARING-NEEDLE,SWING ARM

92046-S019

$24.31

92049

SEAL-OIL,SWING ARM

92049-S053

$4.59

92093

SEAL

92093-S040

Unavailable

92139

BUSHING

92139-S029

$15.69

92153

BOLT

92153-S306

$2.17

92153A

BOLT

92153-S373

$9.12

92153B

BOLT

92153-S374

$9.12

92153C

BOLT,GUARD CENTER

92153-S398

$4.44

92153D

BOLT

92153-S399

$5.05

92200

WASHER,16.2X30X2.6

92200-S011

$2.85

92200A

WASHER

92200-S054

$2.38

92200B

WASHER,MAGNETO

92200-S092

$1.64

92200C

WASHER

92200-S215

$1.95

92200D

WASHER

92200-S225

$3.83

92200E

WASHER

92200-S226

Unavailable

92200F

WASHER

92200-S227

Unavailable

92200G

WASHER

92200-S234

$3.95

92210

NUT

92210-S133

$13.44

92210A

NUT

92210-S146

$25.00
