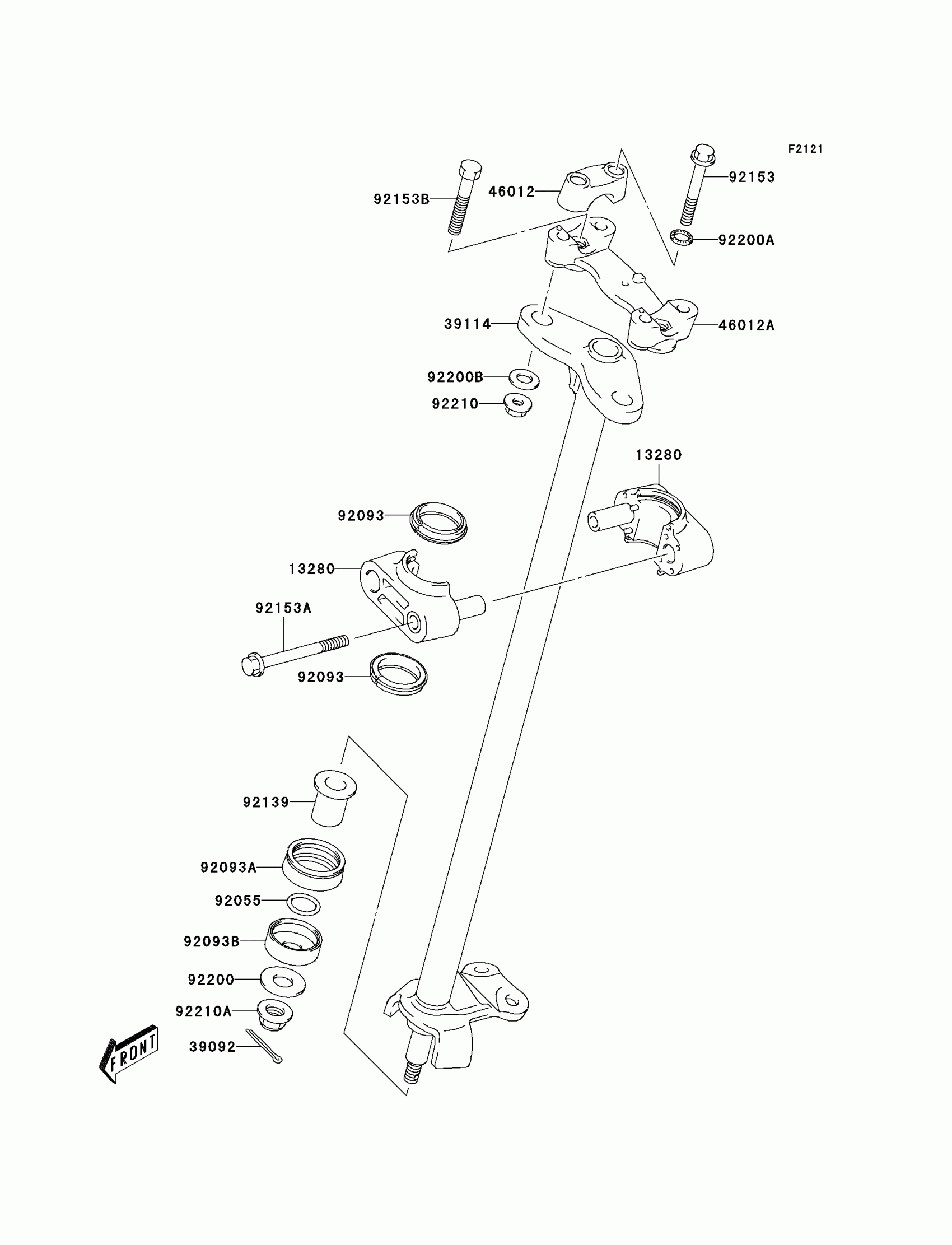

Kawasaki KFX400 Steering Shaft Diagram

Description

Price

13280

HOLDER

13280-S026

$23.05

39092

PIN-HAIR,COTTER

39092-S005

$1.42

39114

SHAFT-COMP-STRG

39114-S005

$256.90

46012

HOLDER-HANDLE,BLACK

46012-S005-504

$26.42

46012A

HOLDER-HANDLE,BLACK

46012-S011-504

$54.12

92055

RING-O,D=3.1

92055-S006

$2.07

92093

SEAL

92093-S038

$8.56

92093A

SEAL

92093-S052

$6.24

92093B

SEAL

92093-S053

$10.14

92139

BUSHING,STEERING SHAFT

92139-S030

$34.04

92153

BOLT

92153-S070

$1.90

92153A

BOLT,STEERING SHAFT HOLDER

92153-S250

$3.53

92153B

BOLT,10X35

92153-S324

Unavailable

92200

WASHER,STEERING SHAFT

92200-S137

$1.90

92200A

WASHER

92200-S233

$3.76

92200B

WASHER,10.5X25X3.2

92200-S280

Unavailable

92210

NUT

92210-S030

$4.00

92210A

NUT

92210-S032

$4.00
