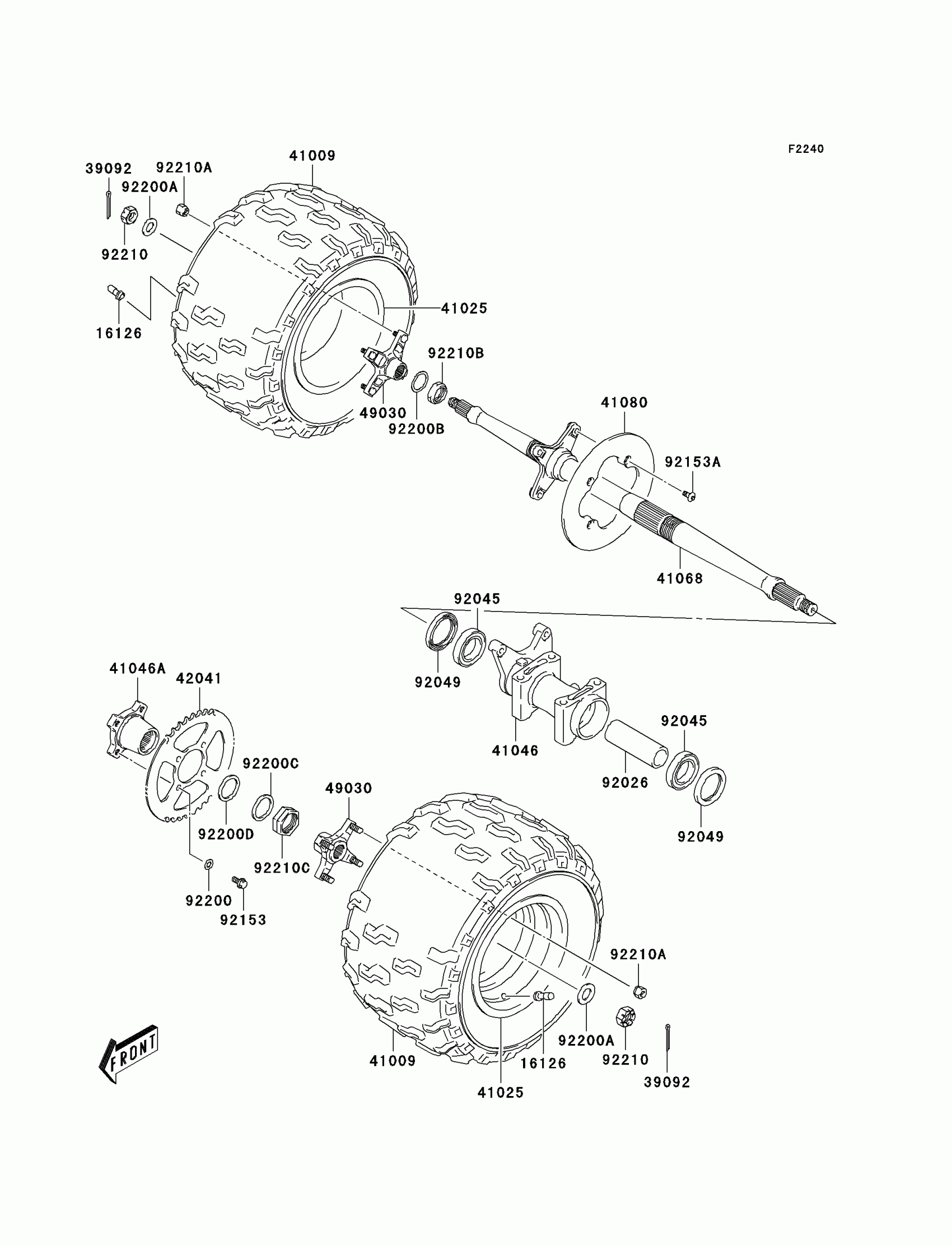

Kawasaki KFX400 Rear Hub Diagram

#

Description
Price

16126

VALVE,WHEEL RIM,TR412

16126-S002

$10.05

39092

PIN-HAIR,REAR HUB

39092-S010

Unavailable

41009

TIRE,RR

41009-S013

Unavailable

41025

RIM,REAR WHEEL

41025-S021

$347.74

41046

HOUSING-BEARING

41046-S007

$183.95

41046A

HOUSING-BEARING

41046-S009

$131.39

41068

AXLE,RR

41068-S019

Unavailable

41080

DISC,REAR BRAKE

41080-S006

$185.41

42041

SPROCKET-HUB

42041-S011

$64.69

49030

HUB,RR,BLACK

49030-S006-503

$150.34

92026

SPACER,REAR AXLE

92026-S106

$51.27

92045

BEARING-BALL,REAR AXLE

92045-S049

$47.00

92049

SEAL-OIL,AXLE

92049-S052

$18.06

92153

BOLT,REAR SPROCKET

92153-S277

$3.83

92153A

BOLT

92153-S283

$3.52

92200

WASHER,REAR SPROCKET

92200-S139

$4.05

92200A

WASHER,REAR HUB

92200-S141

$3.78

92200B

WASHER,REAR AXLE

92200-S143

$5.63

92200C

WASHER

92200-S278

$8.78

92200D

WASHER

92200-S279

$6.85

92210

NUT,REAR HUB

92210-S113

$4.69

92210A

NUT

92210-S179

$3.27

92210B

NUT

92210-S180

$26.58

92210C

NUT,REAR AXLE

92210-S181

$85.10
