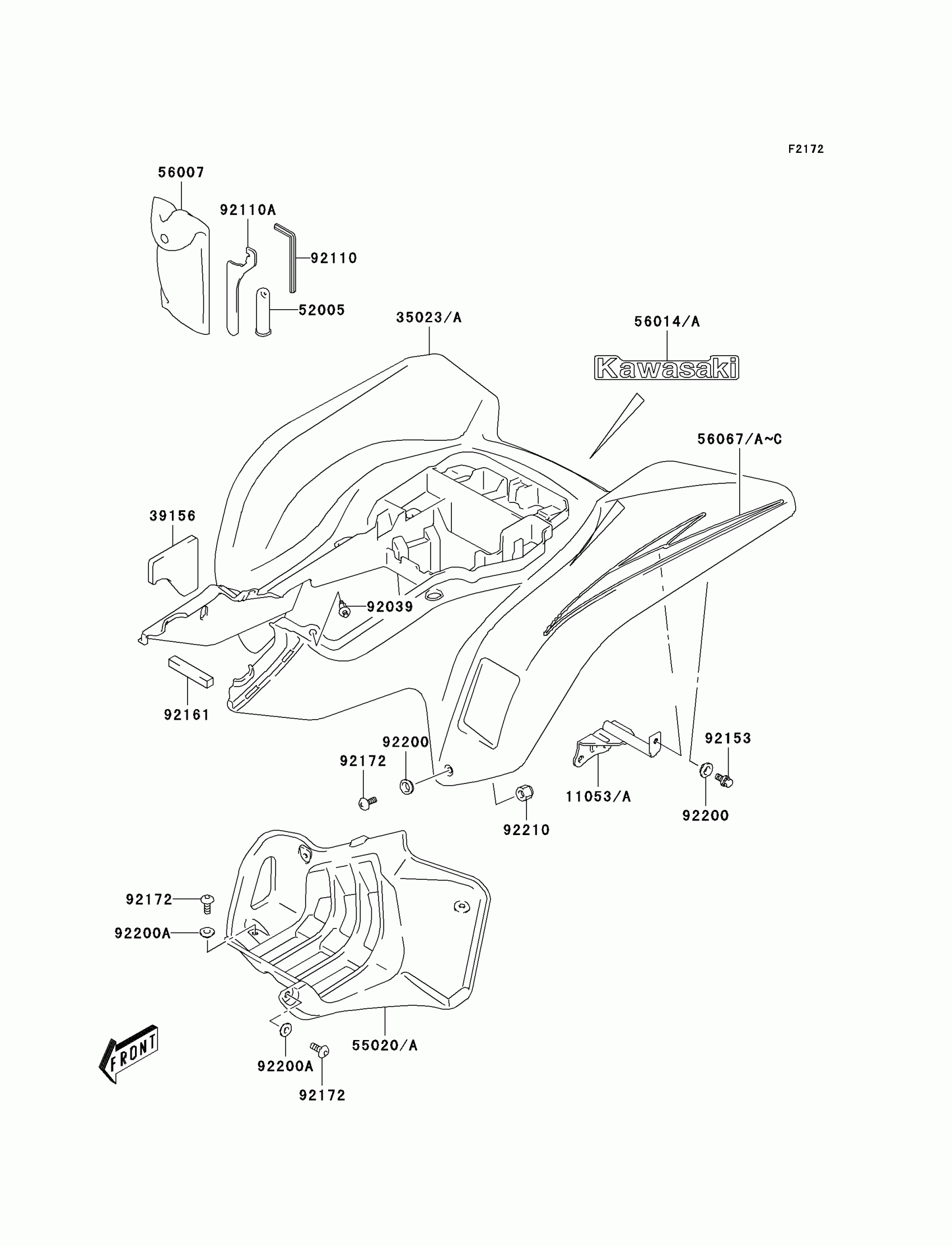

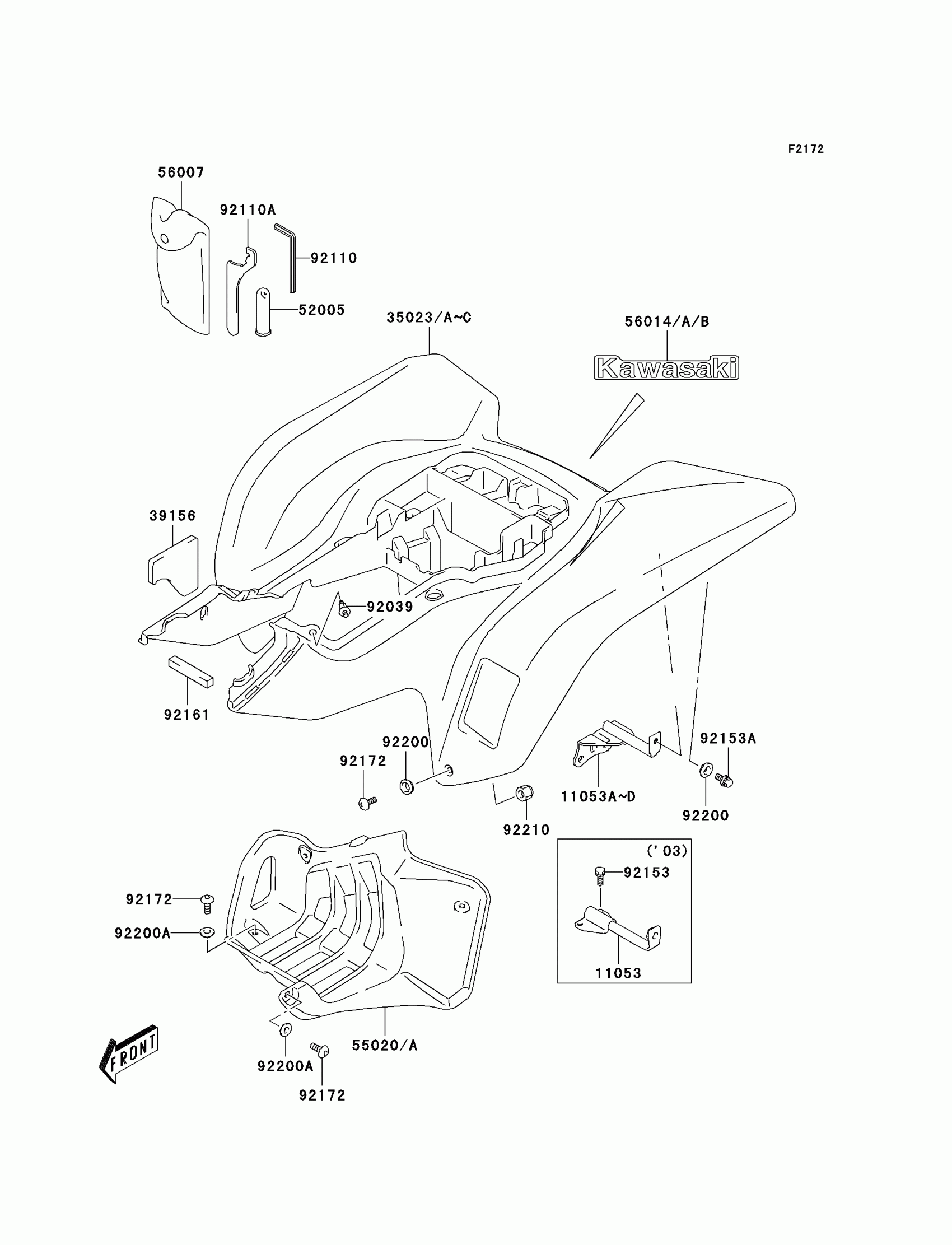

2005 Kawasaki KFX400 Rear Fender Diagram

← All diagrams

Find the part on the Rear Fender diagram for your 2005 Kawasaki KFX400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki KFX400 Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11053C

BRACKET,RH

11053-S083

1

$25.17

In stock

11053D

BRACKET,LH

11053-S084

1

$25.17

In stock

35023B

FENDER-REAR,B.ORANGE

35023-S020-268

1
Out of stock

35023C

FENDER-REAR,L.GREEN

35023-S020-908

1
Out of stock

39156

PAD,REAR FENDER

39156-S002

1

$12.85

In stock

52005

GAUGE,AIR

52005-S005

1
Out of stock

55020

GUARD,FOOTREST,RH,BLACK

55020-S020-504

1
Out of stock

55020A

GUARD,FOOTREST,LH,BLACK

55020-S021-504

1
Out of stock

56007

TOOL-KIT

56007-S005

1
Out of stock

56014A

EMBLEM,BLACK/ORANGE

56014-S016-576

1
Out of stock

56014B

EMBLEM,KAWASAKI,BLACK/GREEN

56014-S016-913

1
Out of stock

92039

RIVET

92039-S010

1
Out of stock

92110

TOOL-WRENCH

92110-S002

1
Out of stock

92110A

TOOL-WRENCH

92110-S003

1
Out of stock

92153A

BOLT,REAR FENDER

92153-S305

1
Out of stock

92161

DAMPER,REAR FENDER

92161-S107

1

$9.14

In stock

92172

SCREW,PIPE COVER

92172-S173

1
Out of stock

92200

WASHER

92200-S074

1
Out of stock

92200A

WASHER,FOOTREST GUARD

92200-S147

1
Out of stock

92210

NUT

92210-S024

1
Out of stock
