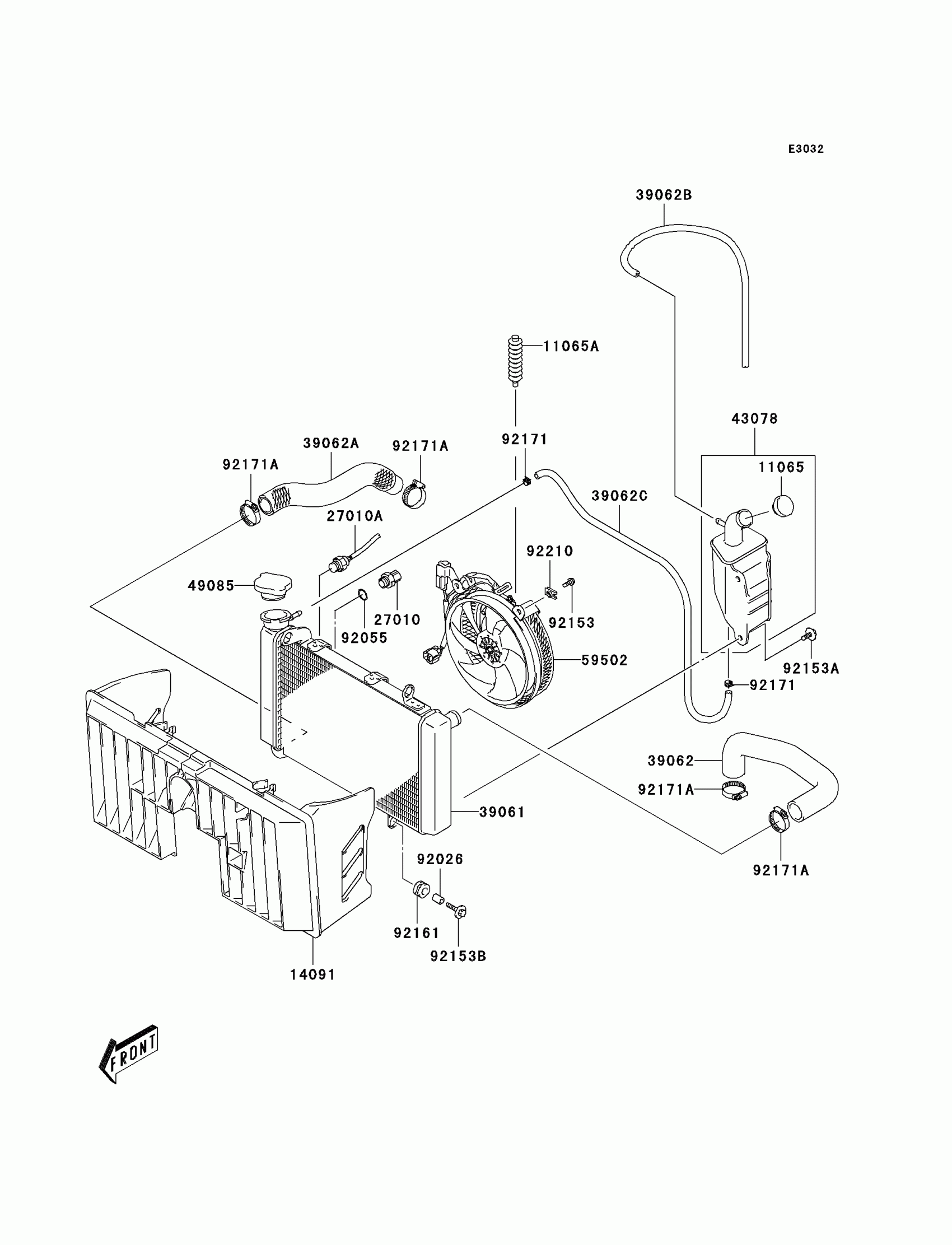

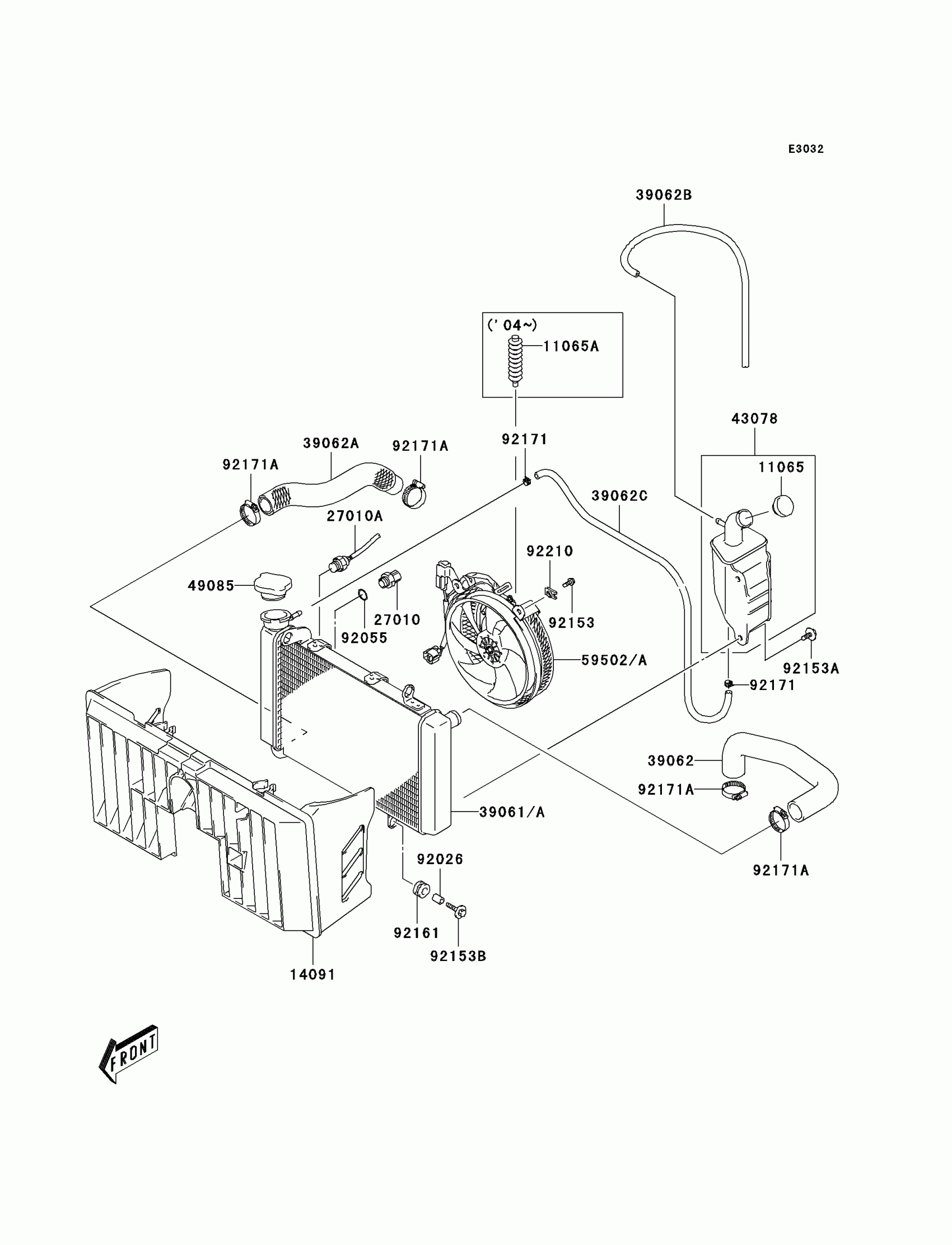

Kawasaki KFX400 Radiator Diagram

#

Description
Price

11065

CAP,RESERVOIR TANK

11065-S036

$5.53

11065A

CAP

11065-S063

$6.73

14091

COVER,RADIATOR

14091-S082

$56.15

27010

SWITCH,FAN

27010-S023

$70.80

27010A

SWITCH,WATER TEMP

27010-S025

Unavailable

39061A

RADIATOR-ASSY

39061-S009

$685.77

39062

HOSE-COOLING

39062-S016

$24.51

39062A

HOSE-COOLING

39062-S017

$36.23

39062B

HOSE-COOLING

39062-S018

Unavailable

39062C

HOSE-COOLING

39062-S019

$15.08

43078

RESERVOIR

43078-S003

$60.35

49085

CAP-ASSY-PRESSURE

49085-S002

$46.47

59502A

FAN-ASSY,RADIATOR

59502-S006

$434.60

92026

SPACER

92026-S081

$2.08

92055

RING-O

92055-S016

$2.53

92153

BOLT

92153-S010

$1.64

92153A

BOLT,6X16

92153-S050

$2.80

92153B

BOLT,OIL TANK

92153-S288

$2.76

92161

DAMPER,OIL TANK

92161-S089

$3.76

92171

CLAMP

92171-S002

Unavailable

92171A

CLAMP,RADIATOR HOSE

92171-S088

$9.35

92210

NUT

92210-S061

$3.81
