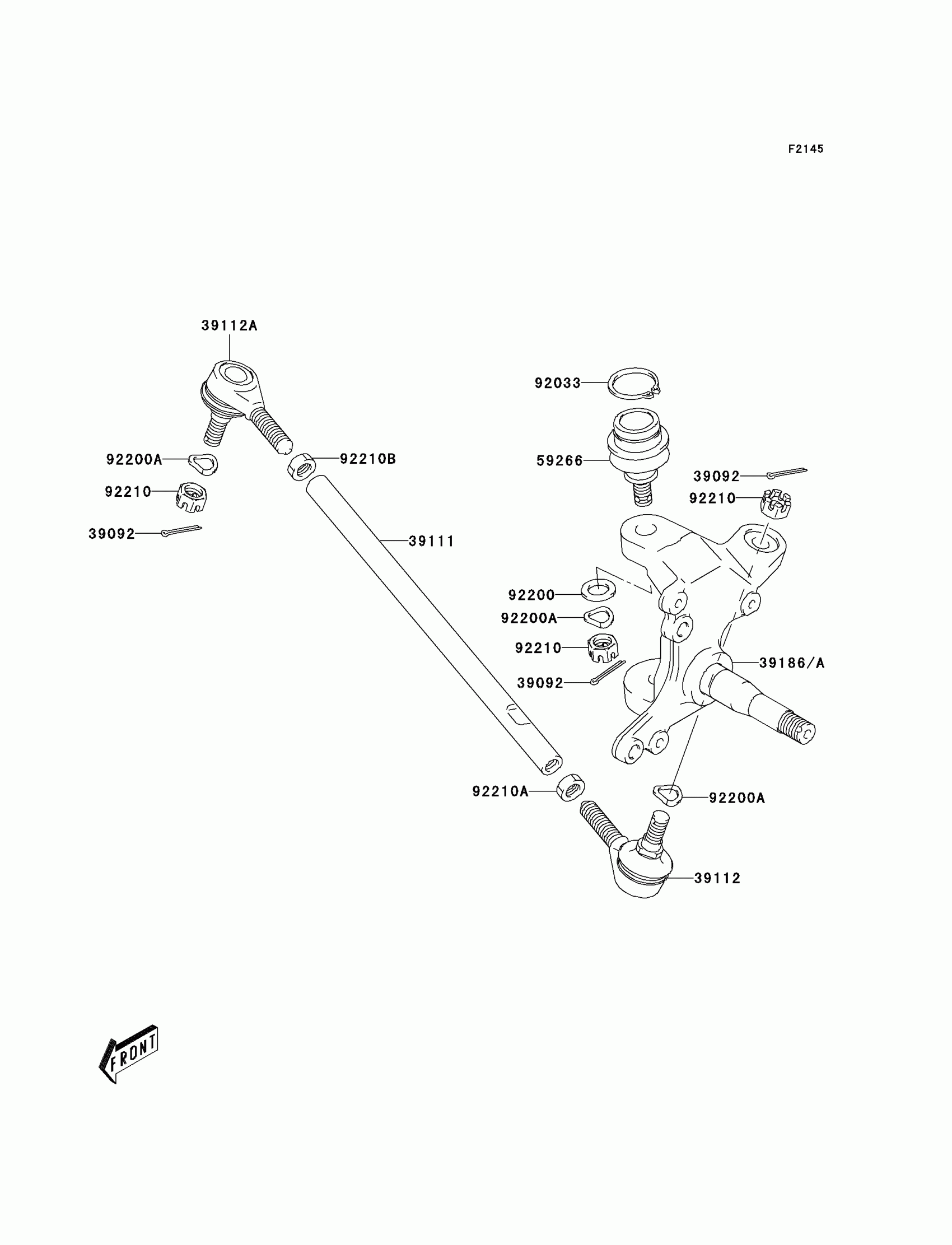

Kawasaki KFX400 Knuckle Arm Diagram

Description

Price

39092

PIN-HAIR,COTTER

39092-S005

$1.42

39111

ROD-TIE

39111-S004

$14.61

39112

RODEND-TIE,RH

39112-S009

$70.79

39112A

RODEND-TIE,LH

39112-S010

$70.79

39186

KNUCKLE,RH

39186-S011

$241.50

39186A

KNUCKLE,LH

39186-S012

$241.50

59266

JOINT-BALL

59266-S002

$56.82

92033

RING-SNAP

92033-S038

$3.53

92200

WASHER,MAGNETO

92200-S092

$1.64

92200A

WASHER,STEERING SHAFT,LWR

92200-S096

$3.13

92210

NUT

92210-S052

$1.90

92210A

NUT,TIE-ROD

92210-S072

$1.46

92210B

NUT,TIE-ROD

92210-S073

Unavailable
