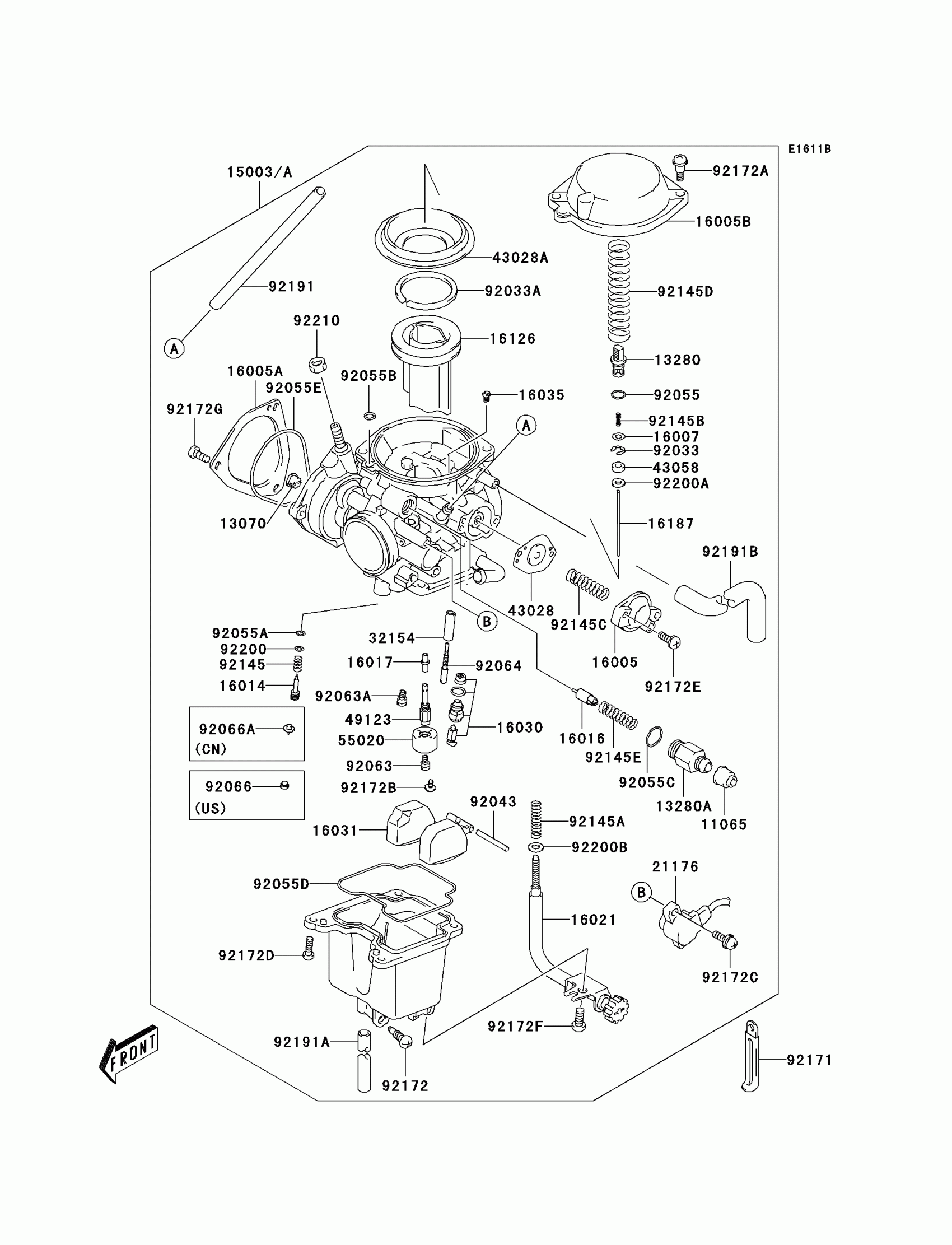

Kawasaki KFX400 Carburetor(A3) Diagram

#

Description
Price

11065

CAP

11065-S020

$2.73

13070

GUIDE

13070-S010

$9.02

13280

HOLDER

13280-S002

$5.40

13280A

HOLDER

13280-S038

$23.12

16005

TOP-CHAMBER

16005-S004

$33.07

16005A

TOP-CHAMBER,THROTTLE

16005-S005

$15.78

16005B

TOP-CHAMBER,DIAPHRAGM

16005-S011

$40.38

16007

SEAT-SPRING

16007-S005

$4.10

16014

SCREW-PILOT AIR

16014-S010

$9.86

16016

PLUNGER

16016-S007

$26.93

16017

JET-NEEDLE,P-0M

16017-S005

$40.15

16021

SCREW-THROTTLE STOP

16021-S005

$76.01

16030

VALVE-FLOAT

16030-S006

$71.05

16031

FLOAT

16031-S006

$35.22

16035

JET-AIR

16035-S006

$20.88

16126

VALVE

16126-S010

$61.52

16187

NEEDLE-JET,5E26-1

16187-S007

$17.64

21176

SENSOR

21176-S001

$124.50

32154

PIPE

32154-S004

$9.80

43028

DIAPHRAGM

43028-S008

$24.95

43028A

DIAPHRAGM

43028-S009

$36.27

43058

RING

43058-S001

$9.29

49123

HOLDER-MAIN JET

49123-S008

$31.33

55020

GUARD,JET

55020-S039

$33.13

92033

RING-SNAP,MULTIPLE JET

92033-S008

$1.81

92033A

RING-SNAP

92033-S041

$4.91

92043

PIN

92043-S034

$4.17

92055

RING-O,ID:4.8

92055-S003

$1.80

92055A

RING-O

92055-S013

$4.81

92055B

RING-O

92055-S044

$4.97

92055C

RING-O

92055-S048

$2.20

92055D

RING-O

92055-S058

$8.78

92055E

RING-O

92055-S065

$9.02

92063

JET-MAIN,#130

92063-S007

$15.66

92063A

JET-MAIN,#60

92063-S008

$15.66

92064

JET-PILOT,#22.5

92064-S008

$15.66

92145

SPRING,THROTTLE SCREW

92145-S010

$4.81

92145A

SPRING

92145-S095

$4.97

92145B

SPRING

92145-S097

$4.10

92145C

SPRING

92145-S098

$4.27

92145D

SPRING

92145-S099

$12.53

92145E

SPRING

92145-S109

$8.44

92171

CLAMP,L=45

92171-S132

$1.88

92172

SCREW,DRAIN

92172-S046

$5.23

92172A

SCREW

92172-S047

$2.81

92172B

SCREW

92172-S048

$3.78

92172C

SCREW

92172-S049

$3.69

92172D

SCREW

92172-S057

$1.44

92172E

SCREW

92172-S139

$2.76

92172F

SCREW

92172-S164

Unavailable

92172G

SCREW

92172-S180

$1.63

92191

TUBE,5X9X175

92191-S054

$5.29

92191A

TUBE

92191-S058

$22.88

92191B

TUBE

92191-S059

$41.47

92200

WASHER

92200-S019

$1.81

92200A

WASHER

92200-S083

$3.13

92200B

WASHER

92200-S151

$2.81

92210

NUT

92210-S121

$3.19

15003

CARBURETOR-ASSY

15003-S020

Unavailable

15003A

CARBURETOR-ASSY

15003-S021

$602.86

92066

PLUG

92066-S027

$5.10

92066A

PLUG

92066-S041

$4.42
