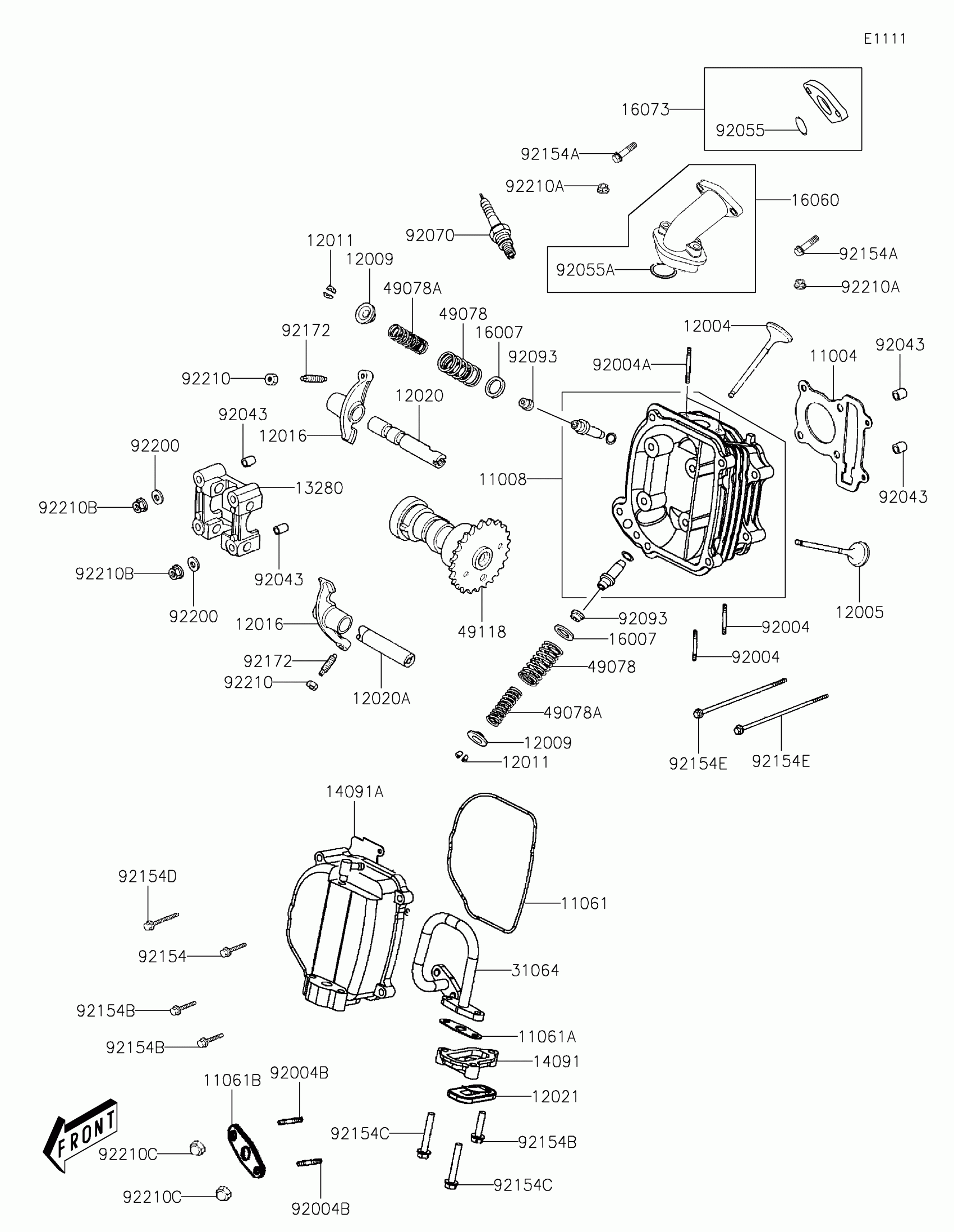

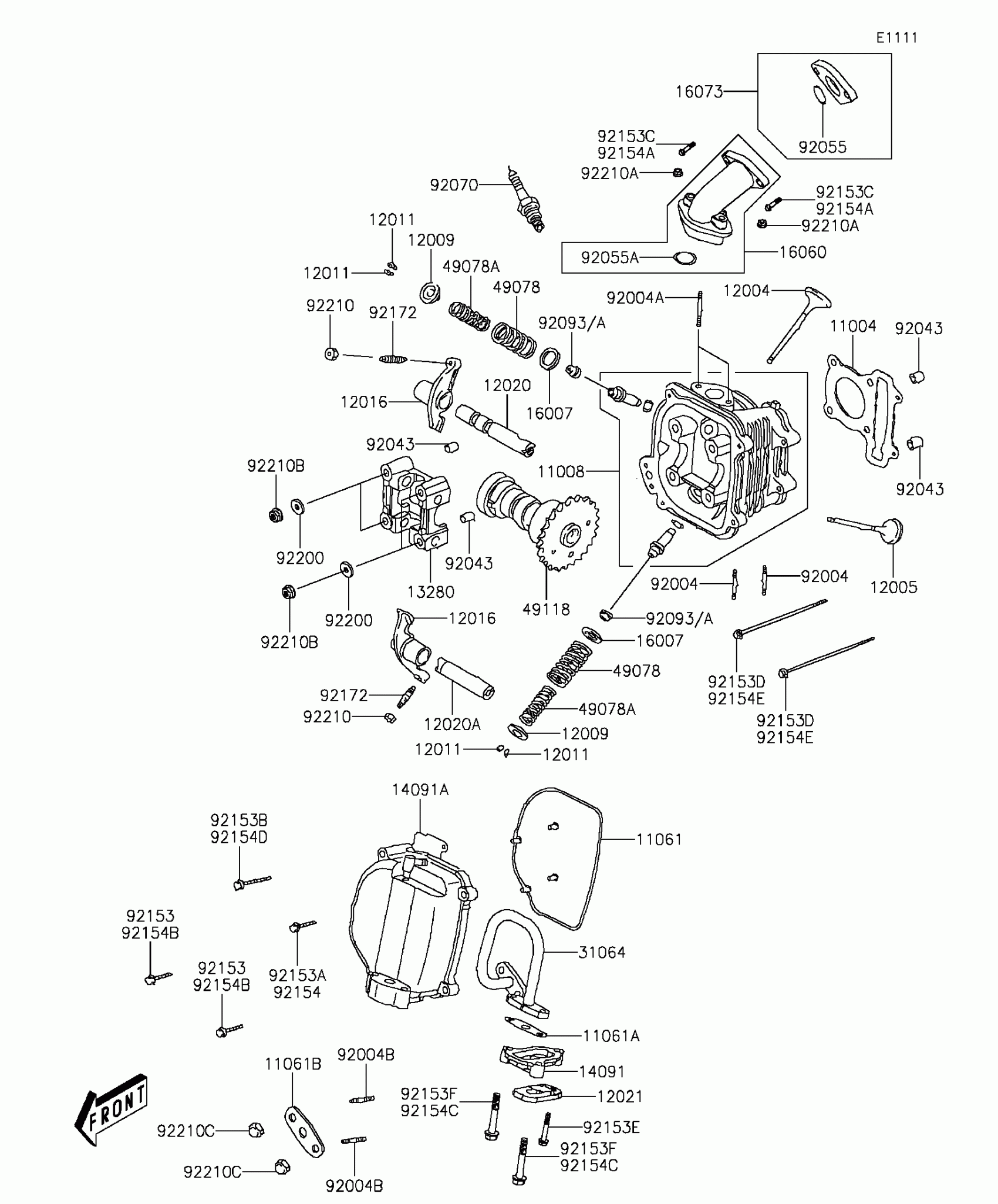

Kawasaki KFX®90 Cylinder Head Diagram

#

Description
Price

11004

GASKET-HEAD

11004-Y002

$11.97

11008

HEAD-COMP-CYLINDER

11008-Y004

$323.47

11061

GASKET,CYLINDER HEAD COVER

11061-Y010

$7.38

11061A

GASKET

11061-Y018

$1.23

11061B

GASKET

11061-Y020

$4.15

12004

VALVE-INTAKE

12004-Y002

$28.44

12005

VALVE-EXHAUST

12005-Y002

$45.69

12009

RETAINER-VALVE SPRING

12009-Y001

$4.27

12011

COLLET

12011-Y001

$6.14

12016

ARM-ROCKER

12016-Y001

$58.80

12020

SHAFT-ROCKER,IN

12020-Y001

$12.69

12020A

SHAFT-ROCKER,EX

12020-Y003

$5.81

12021

VALVE-ASSY-REED

12021-Y002

$25.10

13280

HOLDER,CAMSHAFT

13280-Y002

$31.29

14091

COVER,REED VALVE

14091-Y015

$5.25

14091A

COVER,CYLINDER HEAD

14091-Y016

$29.78

16007

SEAT-SPRING

16007-Y001

$5.61

16060

PIPE-INTAKE

16060-Y004

$48.76

16073

INSULATOR

16073-Y002

$34.54

31064

PIPE-COMP

31064-Y003

$22.95

49078

SPRING-ENGINE VALVE,OUTER

49078-Y002

$6.24

49078A

SPRING-ENGINE VALVE,INNER

49078-Y003

$4.66

49118

CAMSHAFT-COMP

49118-Y002

$118.46

92004

STUD,8X32

92004-Y006

$1.29

92004A

STUD,6X50

92004-Y007

$2.54

92004B

STUD,6X28

92004-Y011

$1.32

92043

PIN,10X16

92043-Y013

$1.00

92055

RING-O,23X2.4

92055-Y007

$0.84

92055A

RING-O,22X2.0

92055-Y008

$0.84

92070

PLUG-SPARK,CR7HSA

92070-Y002

$3.83

92093A

SEAL

92093-Y025

$5.23

92153E

BOLT,FLANGE,6X25

92153-Y065

$0.67

92154

BOLT,FLANGE,6X35

92154-Y020

$1.92

92154A

BOLT,FLANGE,6X25

92154-Y066

$1.71

92154B

BOLT,FLANGE,6X25

92154-Y130

$0.63

92154C

BOLT,FLANGE,6X40

92154-Y131

$1.08

92154D

BOLT,FLANGE,6X50

92154-Y142

$3.93

92154E

BOLT,FLANGE,6X95

92154-Y143

$3.93

92172

SCREW

92172-Y003

$3.98

92200

WASHER,8MM

92200-Y009

$1.11

92210

NUT

92210-Y004

$1.29

92210A

NUT,6MM

92210-Y027

$0.80

92210B

NUT,8MM

92210-Y028

$0.68

92210C

NUT,6MM

92210-Y035

$2.07
