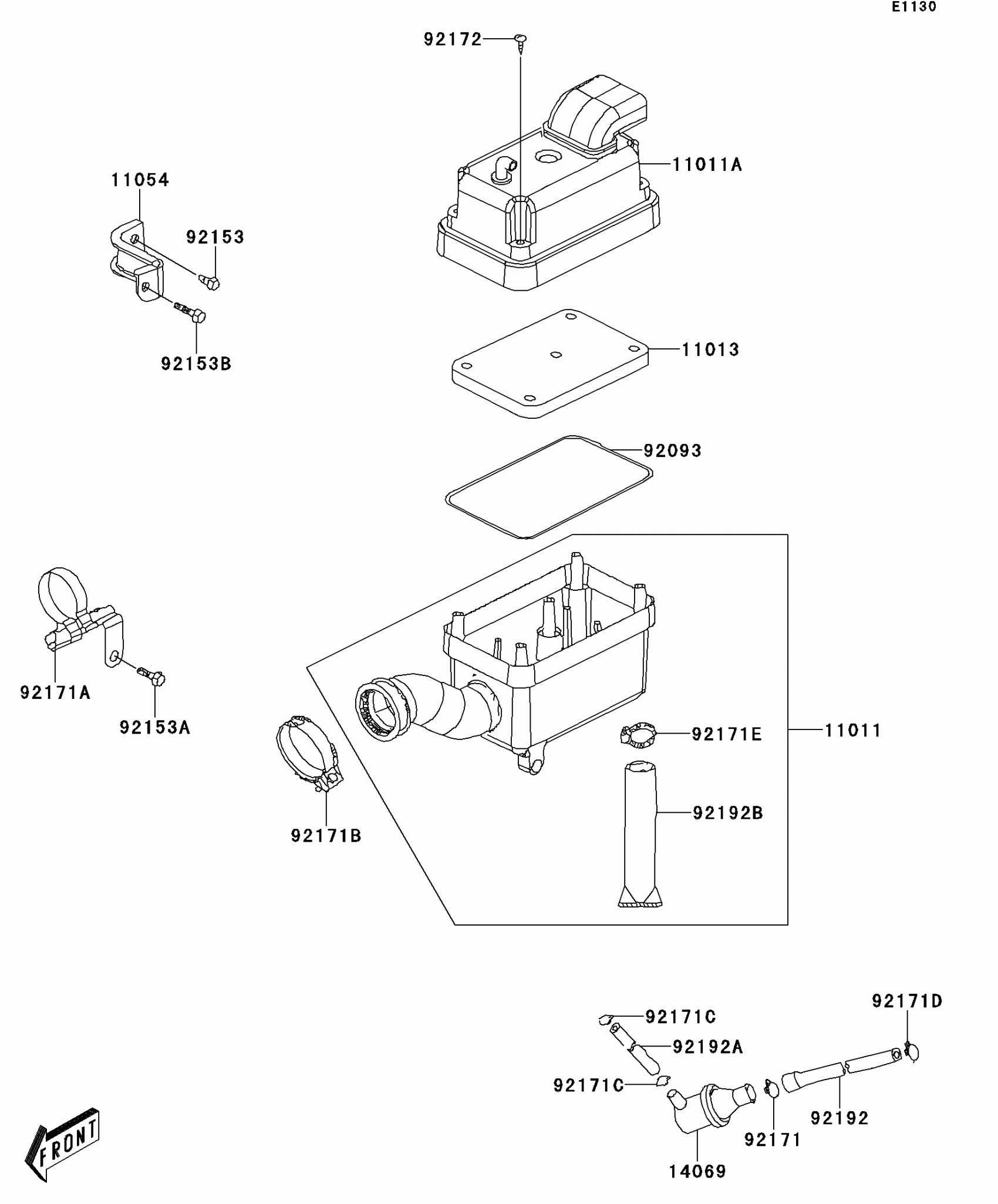

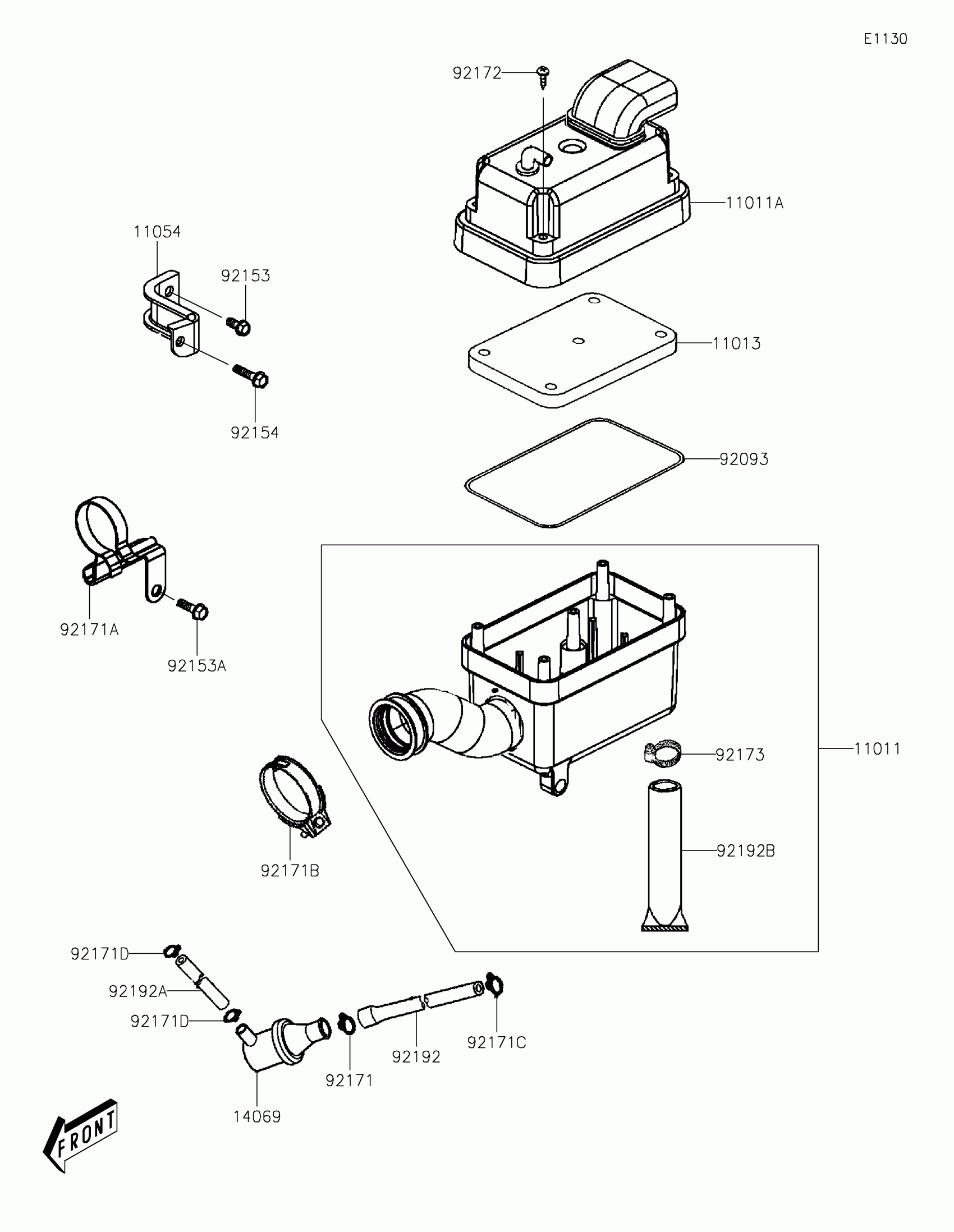

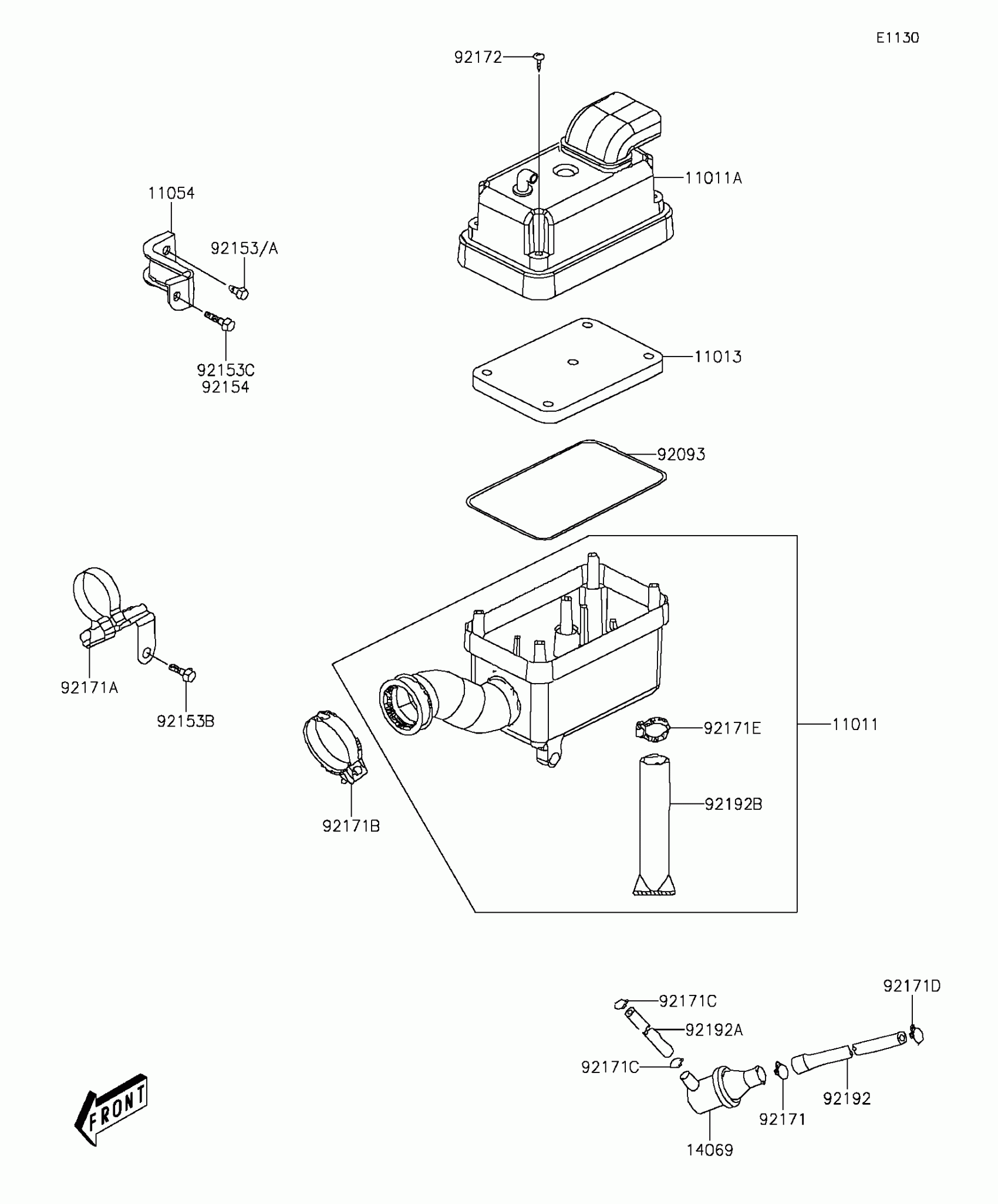

Kawasaki KFX®90 Air Cleaner Diagram

Description

Price

11011

CASE-AIR FILTER,LWR

11011-Y001

Unavailable

11011A

CASE-AIR FILTER,UPP

11011-Y002

Unavailable

11013

ELEMENT-AIR FILTER

11013-Y001

$6.03

11054

BRACKET

11054-Y002

$4.19

14069

BREATHER

14069-Y001

$5.29

92093

SEAL,AIR FILTER

92093-Y002

$3.85

92153

BOLT,FLANGE,6X12

92153-Y024

$0.83

92153A

BOLT,FLANGE,6X22

92153-Y026

$0.68

92153B

BOLT,FLANGE,6X30

92153-Y028

$3.93

92171

CLAMP

92171-Y003

$1.42

92171A

CLAMP

92171-Y007

$5.68

92171B

CLAMP

92171-Y008

$3.78

92171C

CLAMP

92171-Y012

$0.67

92171D

CLAMP

92171-Y014

$0.67

92171E

CLAMP

92171-Y015

$3.76

92172

SCREW,5X20

92172-Y018

$0.68

92192

TUBE

92192-Y001

$4.58

92192A

TUBE

92192-Y002

$1.86

92192B

TUBE,DRAIN

92192-Y004

$2.51
