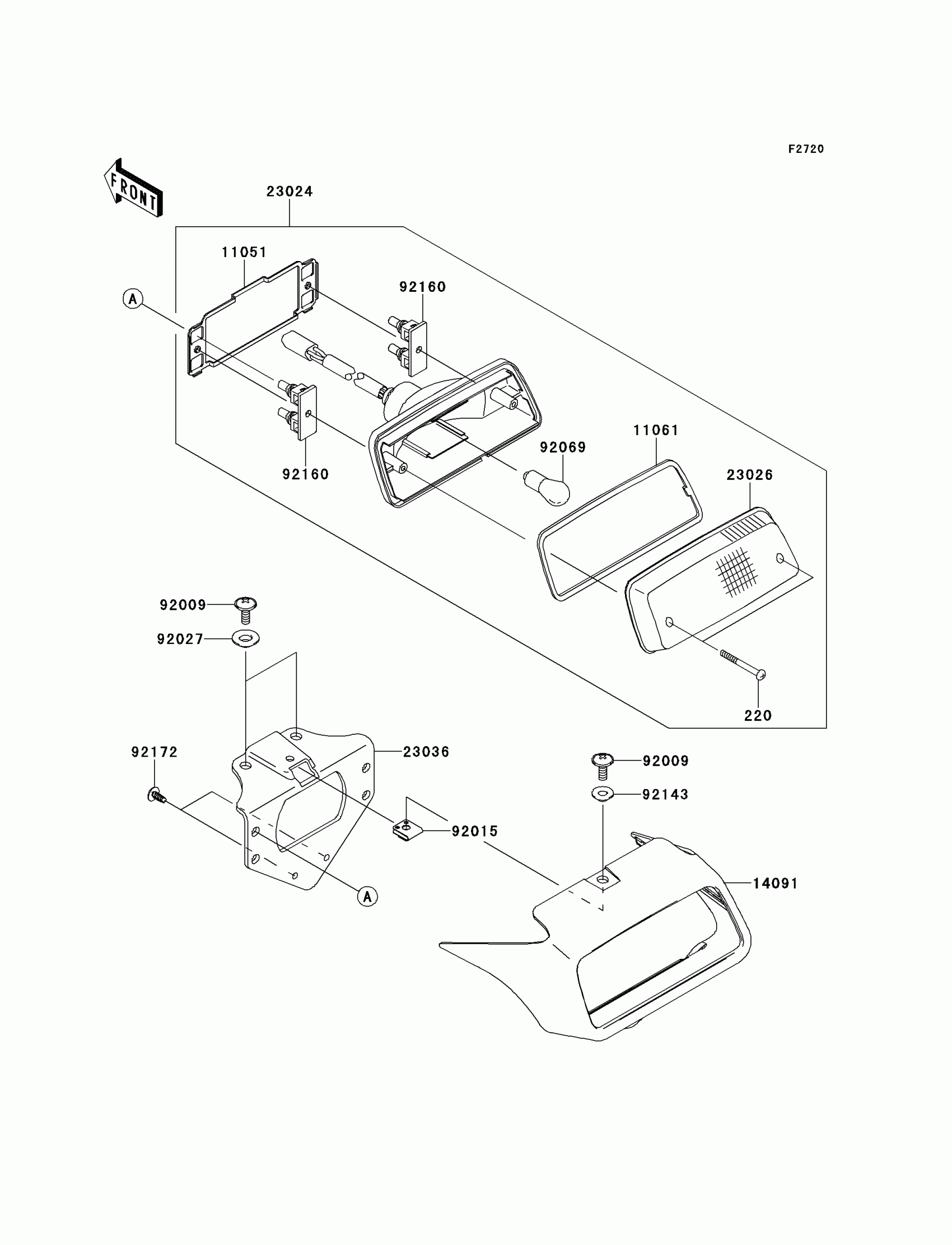

Kawasaki KFX®700 Taillight(s) Diagram

#

Description

Price

220

SCREW-PAN-CROS,4X40

220AA0440

Unavailable

11051

BRACKET,TAIL LAMP

11051-1870

Unavailable

11061

GASKET,TAIL LAMP LENS

11061-0055

Unavailable

14091

COVER,TAIL LAMP,F.BLACK

14091-0095-6Z

Unavailable

23024

LAMP-ASSY-TAIL

23024-1130

Unavailable

23026

LENS,TAIL LAMP

23026-1230

Unavailable

23036

BRACKET-TAIL LAMP

23036-0001

Unavailable

92009

SCREW,6X16

92009-1621

Unavailable

92015

NUT,CLAMP,6MM

92015-1678

Unavailable

92027

COLLAR,L=4.7

92027-1964

Unavailable

92069

BULB,12V 21/5W

92069-063

Unavailable

92143

COLLAR

92143-1087

Unavailable

92160

DAMPER,TAIL LAMP

92160-1053

Unavailable

92172

SCREW,TAPPING,5X10

92172-1061

Unavailable
