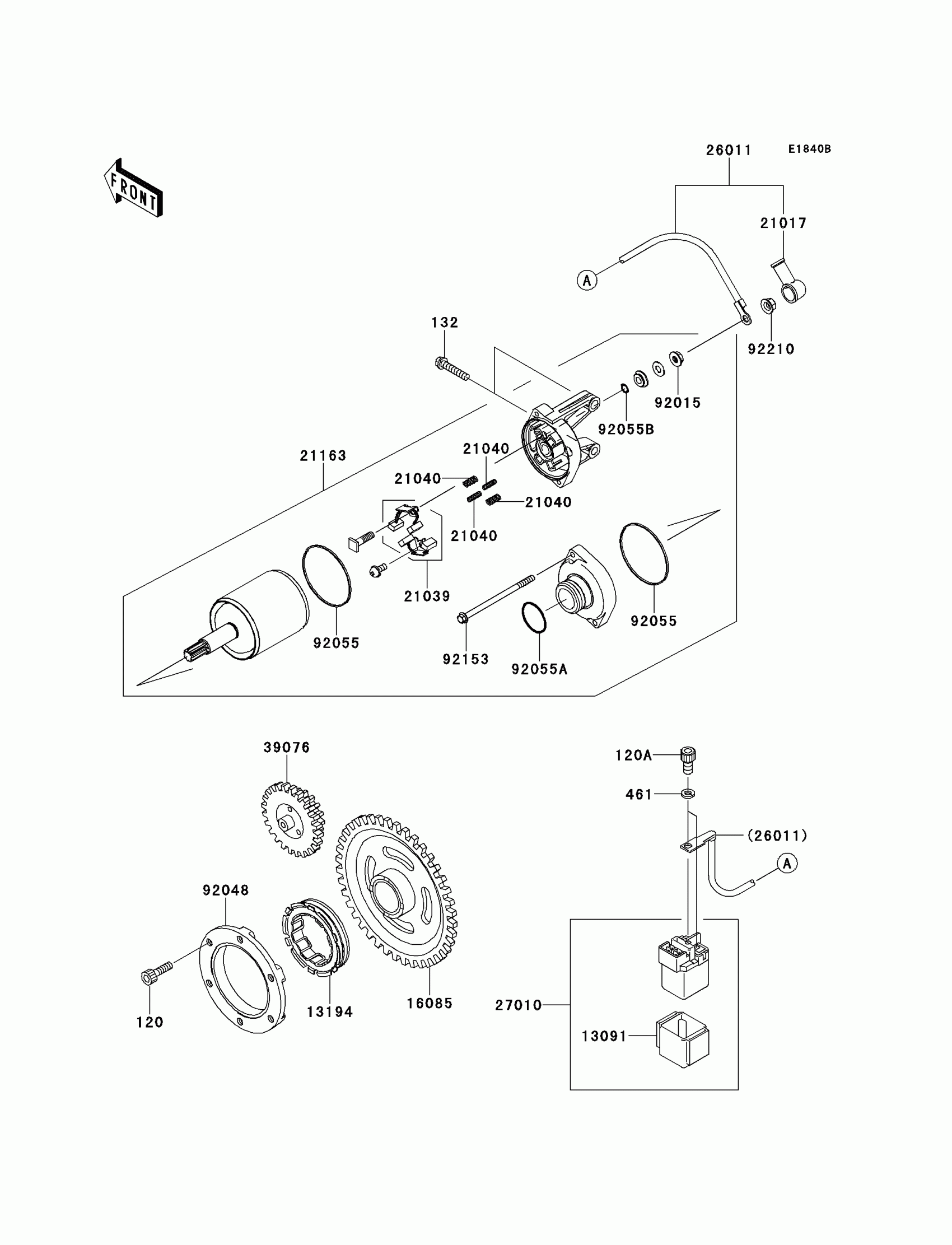

Kawasaki KFX®700 Starter Motor(B9F/BBF) Diagram

Description

Price

120

BOLT-SOCKET,8X16

120CA0816

$3.42

120A

BOLT-SOCKET,5X10

120CB0510

$1.23

132

BOLT-FLANGED-SMALL,6X30

132BD0630

$2.79

461

WASHER-SPRING,5MM

461DB0500

$1.29

13091

HOLDER

13091-1992

$7.47

13194

CLUTCH-ONEWAY

13194-1094

$121.07

16085

GEAR,STARTER

16085-1238

$120.08

21017

GROMMET,STARTER TERMINAL

21017-017

$7.18

21039

BRUSH,CARBON

21039-0004

$120.17

21040

SPRING-BRUSH

21040-0003

$9.47

21163

STARTER-ELECTRIC

21163-0037

$763.64

26011

WIRE-LEAD

26011-0112

$77.40

27010

SWITCH,MAGNETIC

27010-1376

Unavailable

39076

LIMITER,STARTER

39076-0005

$231.22

92015

NUT,STARTER MOTOR

92015-1476

$3.85

92048

RACE,ONE WAY CLUTCH

92048-0002

$103.98

92055

RING-O

92055-0136

$5.91

92055A

RING-O

92055-1276

$7.54

92055B

RING-O,4.5X2.0

92055-1370

$4.17

92153

BOLT

92153-1850

$11.42

92210

NUT,6MM

92210-0188

$1.81
