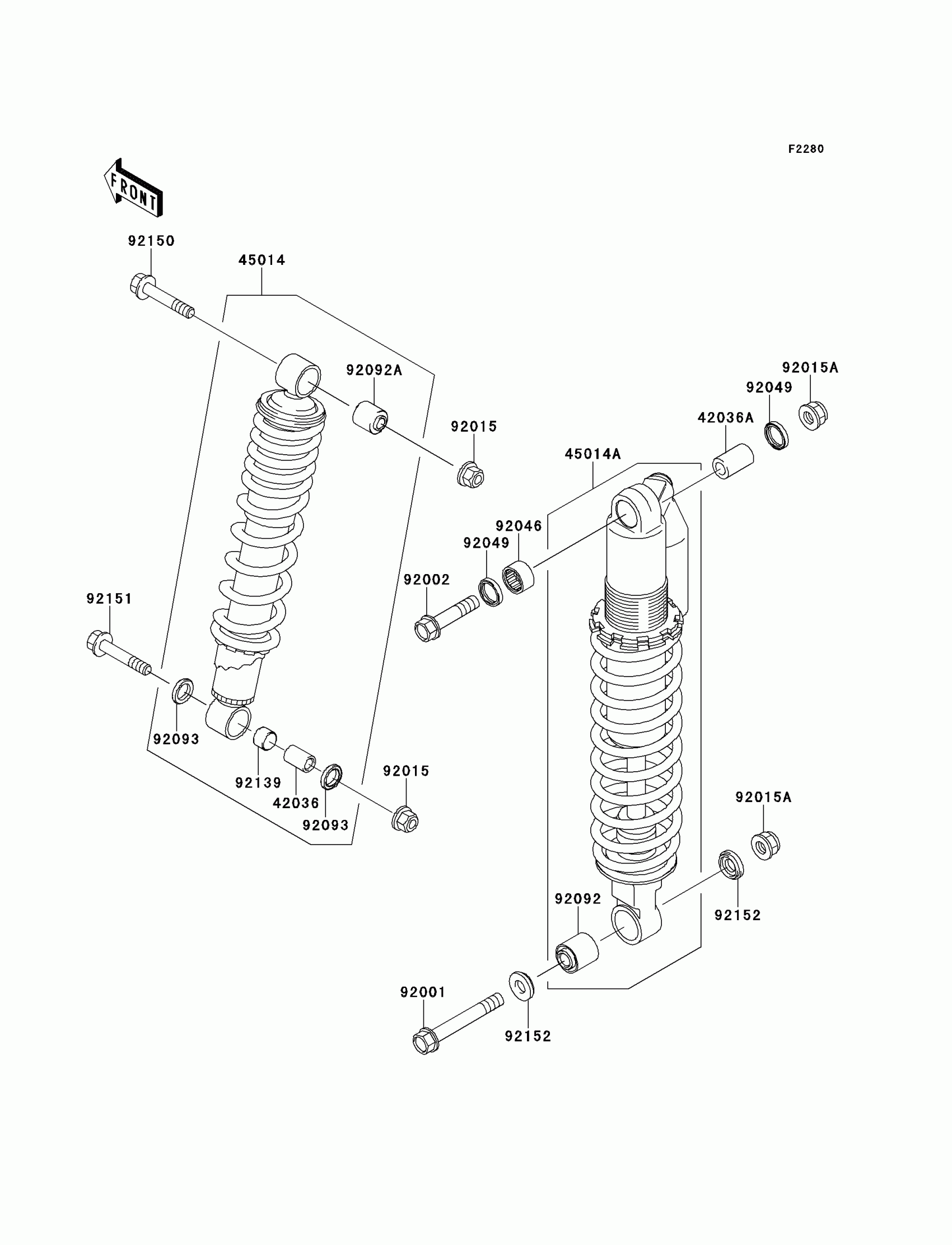

Kawasaki KFX®700 Shock Absorber(s) Diagram

#

Description

Price

42036

SLEEVE

42036-0012

Unavailable

42036A

SLEEVE,12X20X32

42036-1378

Unavailable

45014

SHOCKABSORBER,FR,P.WHITE

45014-0004-EH

Unavailable

45014A

SHOCKABSORBER,RR,P.WHITE

45014-0005-EH

Unavailable

92001

BOLT,FLANGED,12X88

92001-1693

Unavailable

92002

BOLT,FLANGED,12X55

92002-1840

Unavailable

92015

NUT,LOCK,10MM

92015-1597

Unavailable

92015A

NUT,LOCK,12MM

92015-1617

Unavailable

92046

BEARING-NEEDLE

92046-1239

Unavailable

92049

SEAL-OIL,GD20X26X4

92049-1108

Unavailable

92092

BUSHING-RUBBER,SHOCKABSORBER

92092-1054

Unavailable

92092A

BUSHING-RUBBER

92092-1079

Unavailable

92093

SEAL

92093-0010

Unavailable

92139

BUSHING

92139-0042

Unavailable

92150

BOLT,FLANGED,10X51

92150-1719

Unavailable

92151

BOLT,FLANGED,10X45

92151-1413

Unavailable

92152

COLLAR

92152-1293

Unavailable
