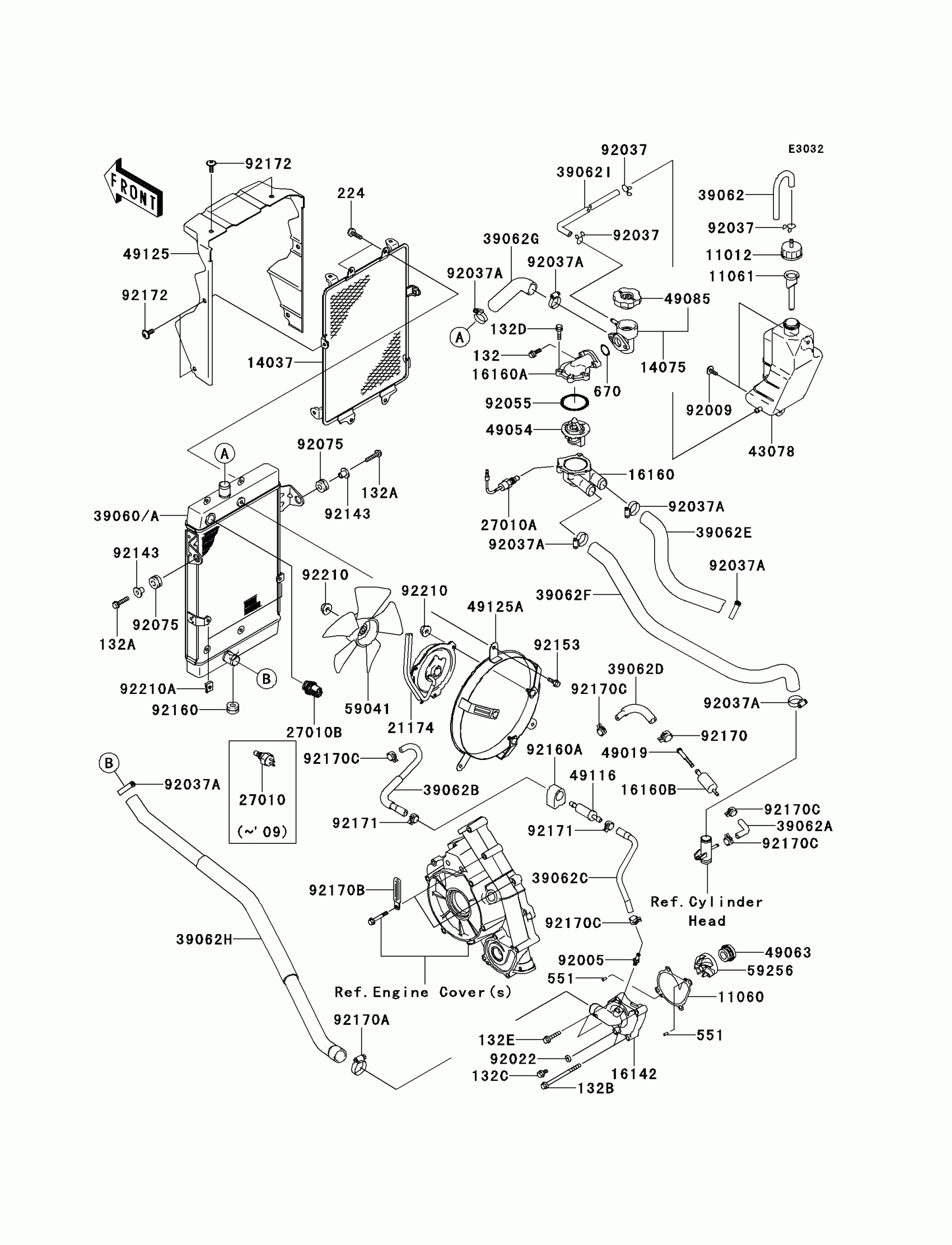

Kawasaki KFX®700 Radiator Diagram
#
11012
CAP
11012-1854
Unavailable
11060
GASKET,WATER PUMP
11060-1964
Unavailable
11061
GASKET
11061-0043
Unavailable
14037
SCREEN
14037-0017
Unavailable
14075
CAP-ASSY,PRESSURE
14075-1115
Unavailable
16142
COVER-PUMP,WATER
16142-0002
Unavailable
16160
BODY,THERMOSTAT,LWR
16160-1112
Unavailable
16160A
BODY,THERMOSTAT,UPP
16160-1113
Unavailable
16160B
BODY
16160-1359
Unavailable
21174
MOTOR-ELECTRIC
21174-0001
Unavailable
27010
SWITCH,FAN
27010-1202
Unavailable
27010A
SWITCH,SENSOR WATER
27010-1346
Unavailable
39060
RADIATOR
39060-0006
Unavailable
39062
HOSE-COOLING,BREATHER
39062-0002
Unavailable
39062A
HOSE-COOLING,HEAD-FILTER
39062-1816
Unavailable
39062B
HOSE-COOLING,CARB-VALVE
39062-1817
Unavailable
39062C
HOSE-COOLING,VALVE-WATER PUMP
39062-1818
Unavailable
39062D
HOSE-COOLING,FILTER-CARB
39062-1858
Unavailable
39062E
HOSE-COOLING,FR HEAD-THERMO
39062-1920
Unavailable
39062F
HOSE-COOLING,RR HEAD-THERMO
39062-1921
Unavailable
39062G
HOSE-COOLING,THERMO-RADIATOR
39062-1922
Unavailable
39062H
HOSE-COOLING,RAD-WATER PUMP
39062-1923
Unavailable
39062I
HOSE-COOLING,RESERVOIR-THERMO
39062-1924
Unavailable
43078
RESERVOIR,TANK
43078-0004
Unavailable
49019
FILTER-WATER
49019-1068
Unavailable
49054
THERMOSTAT
49054-1055
Unavailable
49063
SEAL-MECHANICAL
49063-1055
Unavailable
49085
CAP-ASSY-PRESSURE
49085-1067
Unavailable
49116
VALVE-ASSY
49116-1190
Unavailable
49125
SHROUD
49125-0003
Unavailable
49125A
SHROUD
49125-0007
Unavailable
59041
FAN
59041-0001
Unavailable
59256
IMPELLER
59256-1069
Unavailable
92005
FITTING,BLEED PIPE
92005-1337
Unavailable
92009
SCREW,6X16
92009-1621
Unavailable
92022
WASHER,6.2X11X1
92022-304
Unavailable
92037
CLAMP,TUBE
92037-147
Unavailable
92037A
CLAMP,COOLING HOSE
92037-1589
Unavailable
132
BOLT-FLANGED-SMALL,6X16
132BA0616
Unavailable
132A
BOLT-FLANGED-SMALL,6X25
132BA0625
Unavailable
132B
BOLT-FLANGED-SMALL,6X90
132BB0690
Unavailable
132C
BOLT-FLANGED-SMALL,6X12
132BD0612
Unavailable
132D
BOLT-FLANGED-SMALL,6X20
132BD0620
Unavailable
132E
BOLT-FLANGED-SMALL,6X30
132BD0630
Unavailable
224
SCREW-PAN-WP-CROS,6X12
224AB0612
Unavailable
551
PIN-DOWEL,4X8
551A0408
Unavailable
670
O RING,20MM
670B2020
Unavailable
92055
RING-O,44.7X2.4
92055-1279
Unavailable
92075
DAMPER RUBBER,RR FENR
92075-209
Unavailable
92143
COLLAR
92143-1353
Unavailable
92153
BOLT
92153-0456
Unavailable
92160
DAMPER
92160-1007
Unavailable
92160A
DAMPER,VALVE
92160-1451
Unavailable
92170
CLAMP
92170-1491
Unavailable
92170A
CLAMP
92170-1497
Unavailable
92170B
CLAMP
92170-1514
Unavailable
92170C
CLAMP
92170-2042
Unavailable
92171
CLAMP
92171-0515
Unavailable
92172
SCREW,6X10
92172-0005
Unavailable
92210
NUT
92210-0085
Unavailable
92210A
NUT
92210-0086
Unavailable
