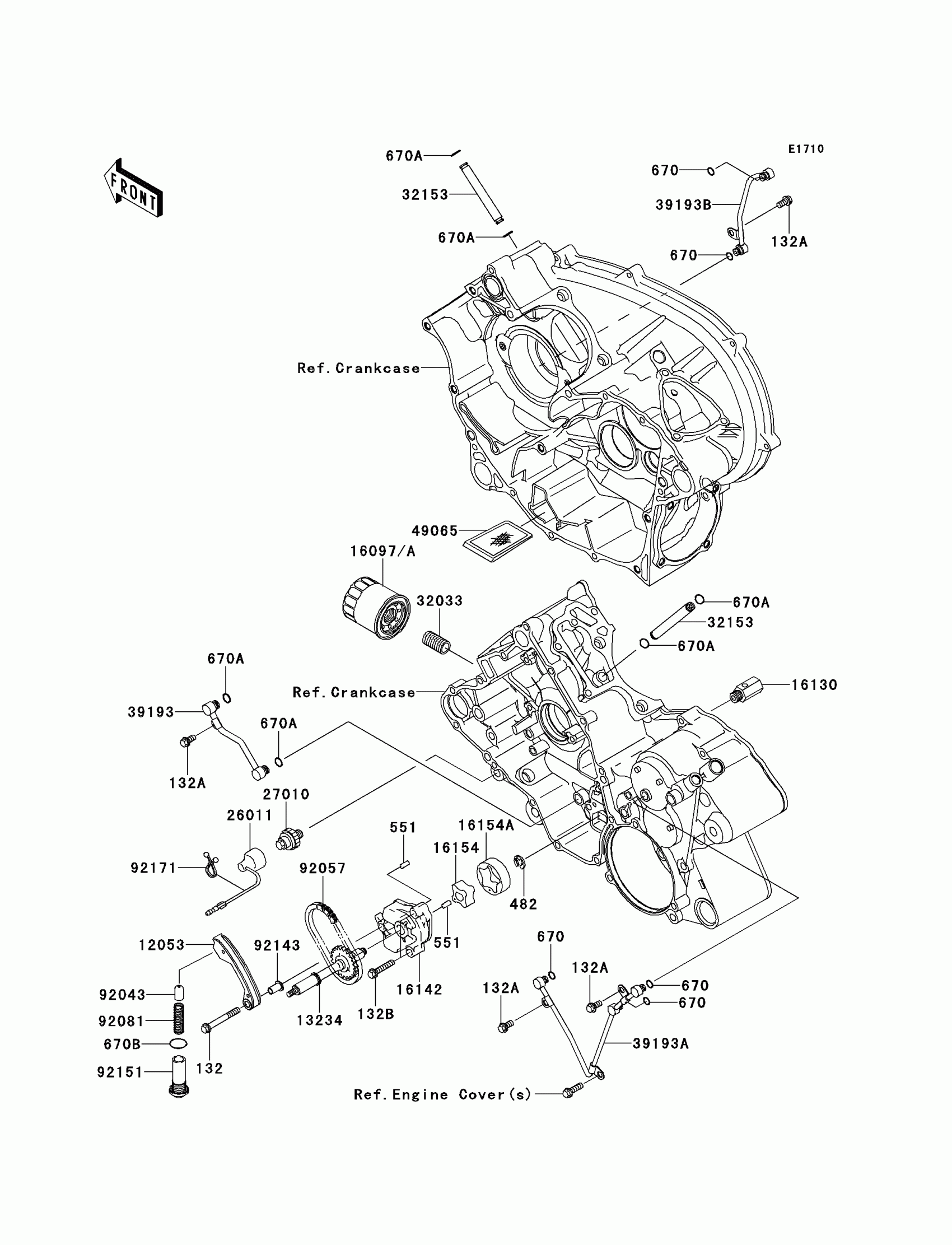

Kawasaki KFX®700 Oil Pump/Oil Filter Diagram
#
Description
Price
132
BOLT-FLANGED-SMALL,6X50
132BB0650
Unavailable
132A
BOLT-FLANGED-SMALL,6X12
132BD0612
Unavailable
132B
BOLT-FLANGED-SMALL,6X30
132BD0630
Unavailable
482
CIRCLIP-TYPE-E,6MM
482J6000
Unavailable
551
PIN-DOWEL,4X8
551A0408
Unavailable
670
O RING
670D1505
Unavailable
670A
O RING,7MM
670D1507
Unavailable
670B
O RING,16MM
670D2016
Unavailable
12053
GUIDE-CHAIN,SLACK
12053-1440
Unavailable
13234
SHAFT-COMP,OIL PUMP
13234-1112
Unavailable
16097
FILTER-ASSY-OIL
16097-0003
Unavailable
16130
VALVE-ASSY-RELIEF
16130-1058
Unavailable
16142
COVER-PUMP
16142-1162
Unavailable
16154
ROTOR-PUMP,INNER
16154-2059
Unavailable
16154A
ROTOR-PUMP,OUTER
16154-2060
Unavailable
26011
WIRE-LEAD
26011-1755
Unavailable
27010
SWITCH,OIL PRESSURE
27010-1313
Unavailable
32033
PIPE,OIL FILTER
32033-1535
Unavailable
32153
PIPE
32153-1189
Unavailable
39193
PIPE-OIL,CRANKSHAFT
39193-1052
Unavailable
39193A
PIPE-OIL,CRANKCASE,LH
39193-1053
Unavailable
39193B
PIPE-OIL,CRANKCASE,RH
39193-1054
Unavailable
49065
FILTER-OIL
49065-1086
Unavailable
92043
PIN
92043-076
Unavailable
92057
CHAIN,DID SCR-0409 SDH
92057-0075
Unavailable
92081
SPRING
92081-112
Unavailable
92143
COLLAR
92143-1857
Unavailable
92151
BOLT,16X41
92151-1781
Unavailable
92171
CLAMP
92171-1329
Unavailable
