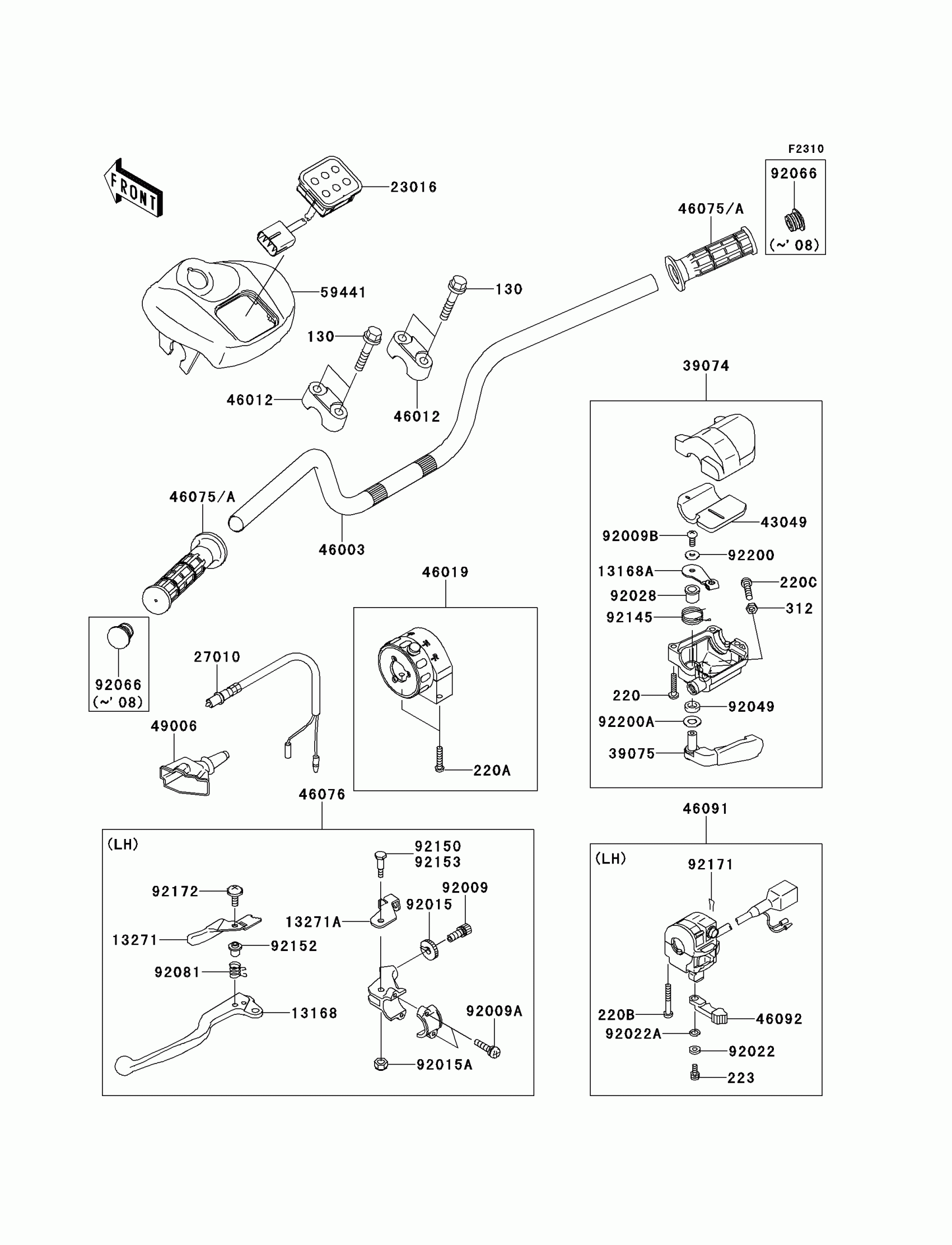

Kawasaki KFX®700 Handlebar Diagram
#
13168
LEVER,LH
13168-0002
Unavailable
13168A
LEVER
13168-1715
Unavailable
13271
PLATE,LEVER LOCK
13271-0011
Unavailable
13271A
PLATE,LOCK
13271-1259
Unavailable
23016
LAMP-ASSY
23016-0002
Unavailable
27010
SWITCH,BRAKE
27010-1294
Unavailable
39074
LEVER-ASSY-THROTTLE
39074-0001
Unavailable
39075
LEVER-THROTTLE
39075-1062
Unavailable
43049
PACKING
43049-1088
Unavailable
46003
HANDLE,G.GRAY
46003-0001-HN
Unavailable
46012
HOLDER-HANDLE
46012-1168
Unavailable
46019
GRIP-ASSY,SHIFT CONTROL
46019-0006
Unavailable
46075
GRIP
46075-0065
Unavailable
46076
LEVER-ASSY-GRIP,LH
46076-1258
Unavailable
46091
HOUSING-ASSY-CONTROL,LH
46091-1848
Unavailable
46092
LEVER-GRIP,CHOKE
46092-1217
Unavailable
49006
BOOT
49006-1261
Unavailable
59441
COVER-HANDLE,BLACK
59441-1173-6D
Unavailable
92009
SCREW,CABLE ADJUST,8MM
92009-1435
Unavailable
92009A
SCREW,6X20
92009-1841
Unavailable
92009B
SCREW
92009-1959
Unavailable
92015
NUT,CABLE ADJUST LOCK,8MM
92015-1596
Unavailable
92015A
NUT
92015-1829
Unavailable
92022
WASHER,5MM
92022-1837
Unavailable
92022A
WASHER,WAVE,5MM
92022-1838
Unavailable
92028
BUSHING
92028-1986
Unavailable
92049
SEAL-OIL
92049-1578
Unavailable
92081
SPRING,LOCK RETURN
92081-1358
Unavailable
92145
SPRING
92145-1392
Unavailable
92152
COLLAR
92152-1176
Unavailable
92153
BOLT
92153-1919
Unavailable
92171
CLAMP,CLIP
92171-1095
Unavailable
92172
SCREW,5X20
92172-0078
Unavailable
92200
WASHER
92200-1558
Unavailable
92200A
WASHER
92200-1559
Unavailable
130
BOLT-FLANGED,8X60
130CA0860
Unavailable
220
SCREW-PAN-CROS,5X20
220AB0520
Unavailable
220A
SCREW-PAN-CROS,5X25
220AB0525
Unavailable
220B
SCREW-PAN-CROS,5X35
220AB0535
Unavailable
220C
SCREW-PAN-CROS,6X25
220AB0625
Unavailable
223
SCREW-PAN-WS-CROS,5X12
223AB0512
Unavailable
312
NUT-HEX,6MM,BLACK
312AB0600
Unavailable
