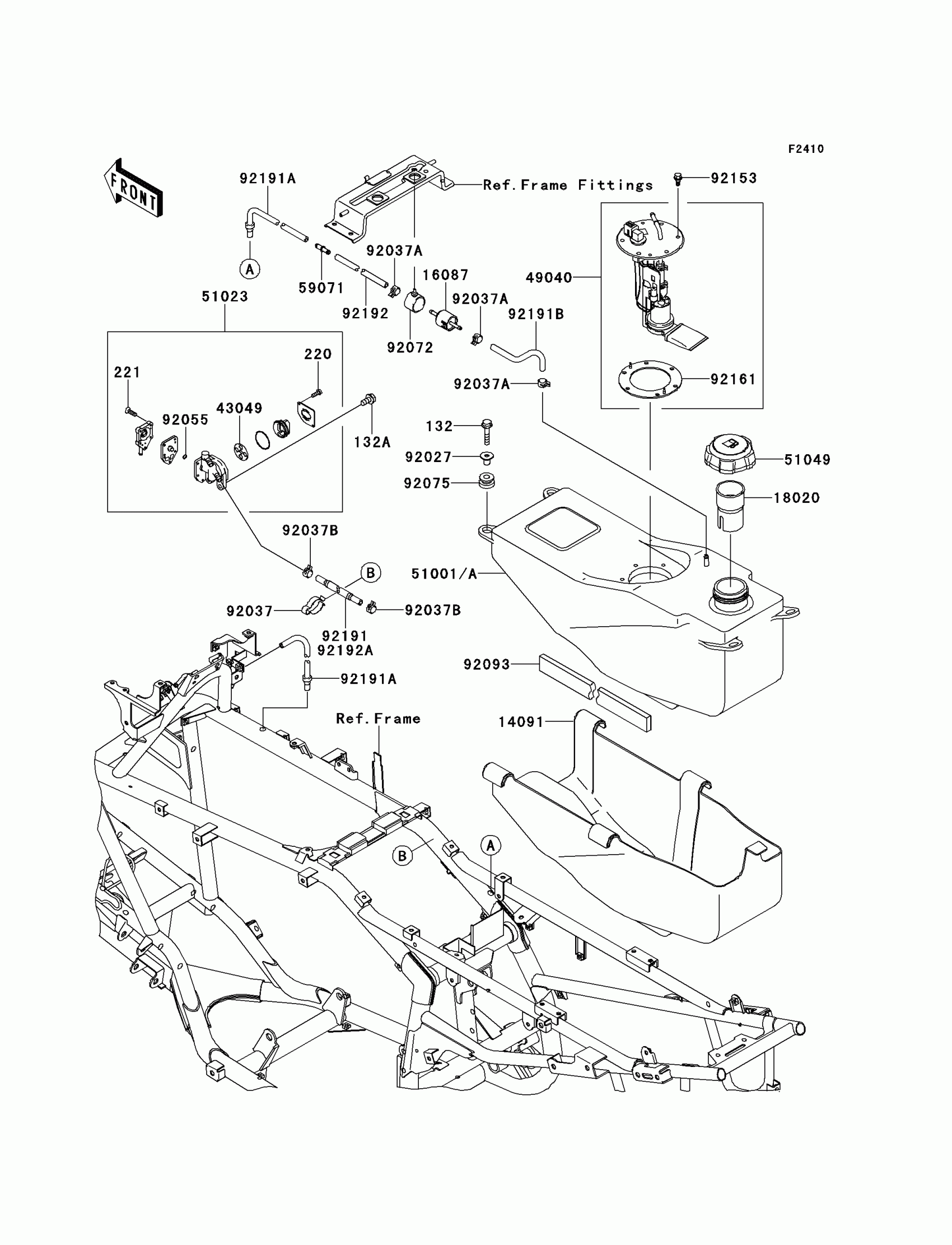

Kawasaki KFX®700 Fuel Tank Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X30

132BA0630

$1.87

132A

BOLT-FLANGED-SMALL,6X12

132BB0612

$1.49

220

SCREW-PAN-CROS,3X8

220AA0308

$0.54

221

SCREW-CSK-CROS,4X14

221AA0414

$3.24

14091

COVER,FUEL TANK

14091-1513

$44.85

16087

VALVE-CHECK

16087-0003

$54.25

18020

BAFFLE

18020-1307

$10.76

43049

PACKING

43049-1103

$4.33

49040

PUMP-FUEL

49040-1080

$312.99

51001A

TANK-COMP-FUEL

51001-0205

$234.42

51023

TAP-ASSY,FUEL

51023-1406

$121.16

51049

CAP-TANK,FUEL

51049-1128

$70.13

59071

JOINT

59071-3717

$3.07

92027

COLLAR,L=16.1

92027-1847

$4.67

92037

CLAMP

92037-093

$10.92

92037A

CLAMP,TUBE

92037-1461

$2.93

92037B

CLAMP,TUBE

92037-1505

$3.63

92055

RING-O

92055-1664

$3.96

92072

BAND

92072-1438

$4.42

92075

DAMPER

92075-1787

$4.93

92093

SEAL

92093-0007

$16.37

92153

BOLT,FLANGED,5MM

92153-0361

$3.75

92161

DAMPER,FUEL PUMP

92161-0027

$16.53

92191A

TUBE,TANK BREATHER

92191-1666

$10.86

92191B

TUBE,CHECK VALVE-TANK

92191-1773

$4.85

92192

TUBE,JOINT-CHECK VALVE

92192-0020

$3.76

92192A

TUBE

92192-0536

$96.45
