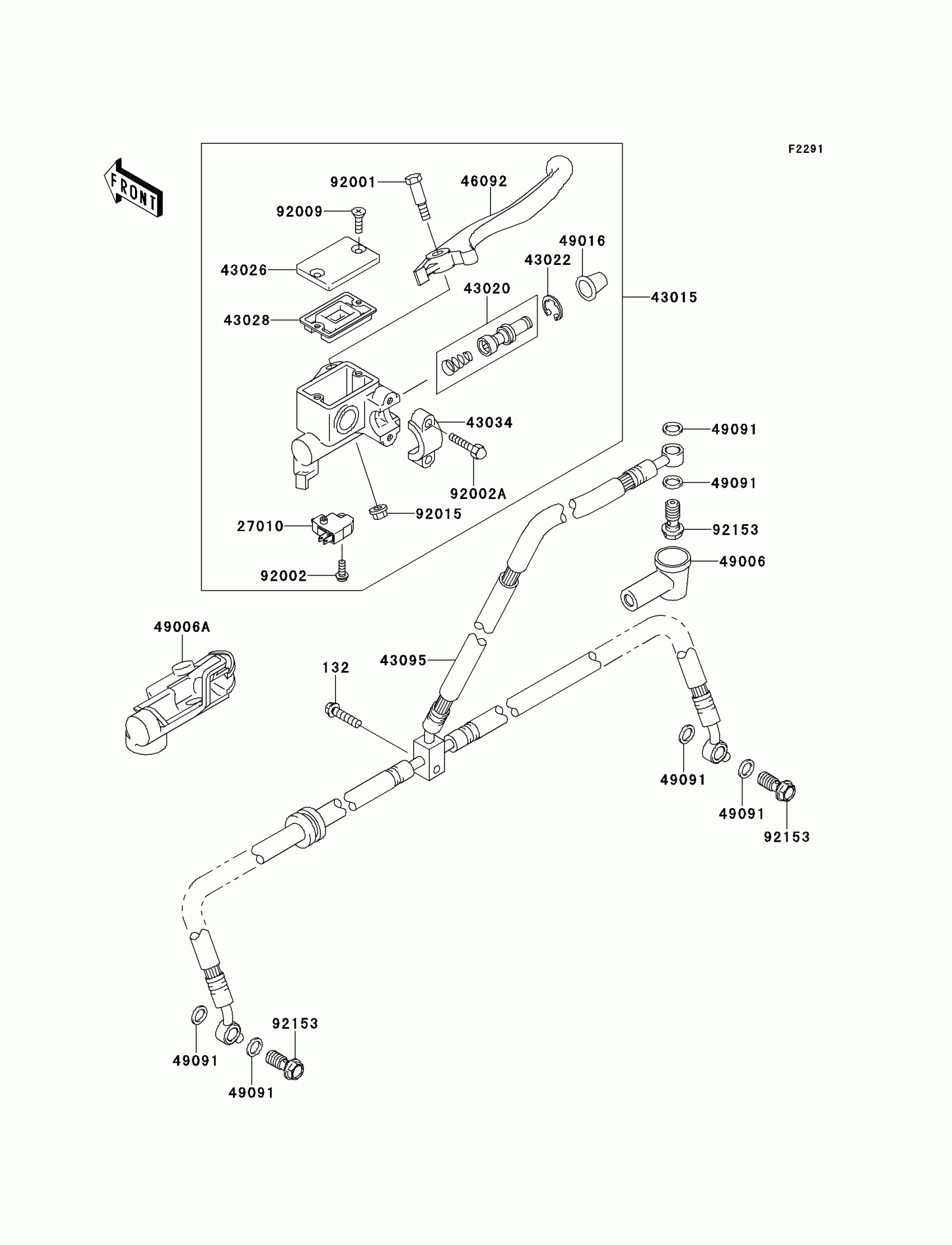

Kawasaki KFX®700 Front Master Cylinder Diagram

#

Description

Price

132

BOLT-FLANGED-SMALL,6X25

132BB0625

Unavailable

27010

SWITCH,BRAKE

27010-0025

Unavailable

43015

CYLINDER-ASSY-MASTER,FR

43015-1646

Unavailable

43020

PISTON-COMP-BRAKE,FR

43020-1056

Unavailable

43022

STOPPER-BRAKE,PISTON

43022-1010

Unavailable

43026

CAP-BRAKE

43026-1074

Unavailable

43028

DIAPHRAGM

43028-1061

Unavailable

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1016

Unavailable

43095

HOSE-BRAKE,FR

43095-0030

Unavailable

46092

LEVER-GRIP,FRONT BRAKE

46092-1208

Unavailable

49006

BOOT,DUST

49006-1040

Unavailable

49006A

BOOT

49006-1338

Unavailable

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

Unavailable

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

Unavailable

92001

BOLT,FRONT BRAKE LEVER

92001-1728

Unavailable

92002

BOLT,SCREW,4X12

92002-1323

Unavailable

92002A

BOLT

92002-1894

Unavailable

92009

SCREW,4MM

92009-1458

Unavailable

92015

NUT,FLANGED,6MM,BLACK

92015-1233

Unavailable

92153

BOLT,OIL,L=23

92153-0627

Unavailable
