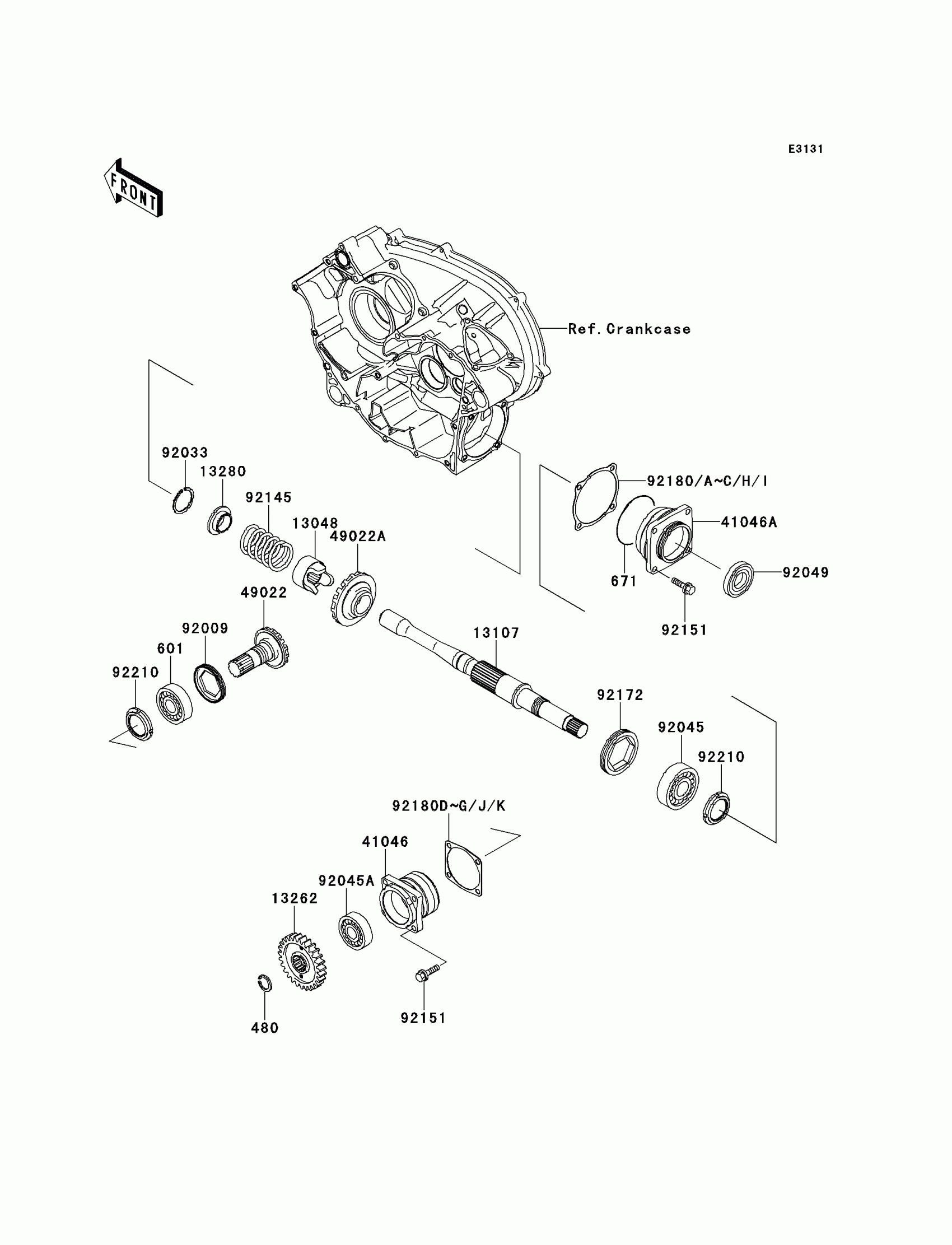

Kawasaki KFX®700 Front Bevel Gear Diagram
#
480
CIRCLIP-TYPE-C,28MM
480J2800
Unavailable
601
BALL BEARING,#6206
601B6206
Unavailable
671
O RING
671D2585
Unavailable
13048
CAM-DAMPER
13048-1088
Unavailable
13107
SHAFT
13107-1516
Unavailable
13262
GEAR,OUTPUT DRIVEN,27T
13262-0014
Unavailable
13280
HOLDER
13280-1169
Unavailable
41046
HOUSING-BEARING
41046-1101
Unavailable
41046A
HOUSING-BEARING
41046-1102
Unavailable
49022
GEAR-BEVEL,DRIVE,12T
49022-1192
Unavailable
49022A
GEAR-BEVEL,DRIVEN,20T
49022-1193
Unavailable
92009
SCREW,64MM
92009-1914
Unavailable
92033
RING-SNAP
92033-1320
Unavailable
92045
BEARING-BALL,6306SH2
92045-1190
Unavailable
92045A
BEARING-BALL,62/28
92045-1207
Unavailable
92049
SEAL-OIL
92049-0095
Unavailable
92145
SPRING
92145-1298
Unavailable
92151
BOLT-FLANGED-SMALL,8X30
92151-1688
Unavailable
92172
SCREW,SET,75X10
92172-0371
Unavailable
92180
SHIM,DRIVEN,T=0.15
92180-1307
Unavailable
92180A
SHIM,DRIVEN,T=0.20
92180-1308
Unavailable
92180B
SHIM,DRIVEN,T=0.50
92180-1309
Unavailable
92180C
SHIM,DRIVEN,T=0.80
92180-1310
Unavailable
92180D
SHIM,DRIVE,T=0.15
92180-1311
Unavailable
92180E
SHIM,DRIVE,T=0.20
92180-1312
Unavailable
92180F
SHIM,DRIVE,T=0.50
92180-1313
Unavailable
92180G
SHIM,DRIVE,T=0.80
92180-1314
Unavailable
92180H
SHIM,DRIVEN,T=1.00
92180-1349
Unavailable
92180I
SHIM,DRIVEN,T=1.20
92180-1350
Unavailable
92180J
SHIM,DRIVE,T=1.00
92180-1351
Unavailable
92180K
SHIM,DRIVE,T=1.20
92180-1352
Unavailable
92210
NUT,30MM
92210-1294
Unavailable
