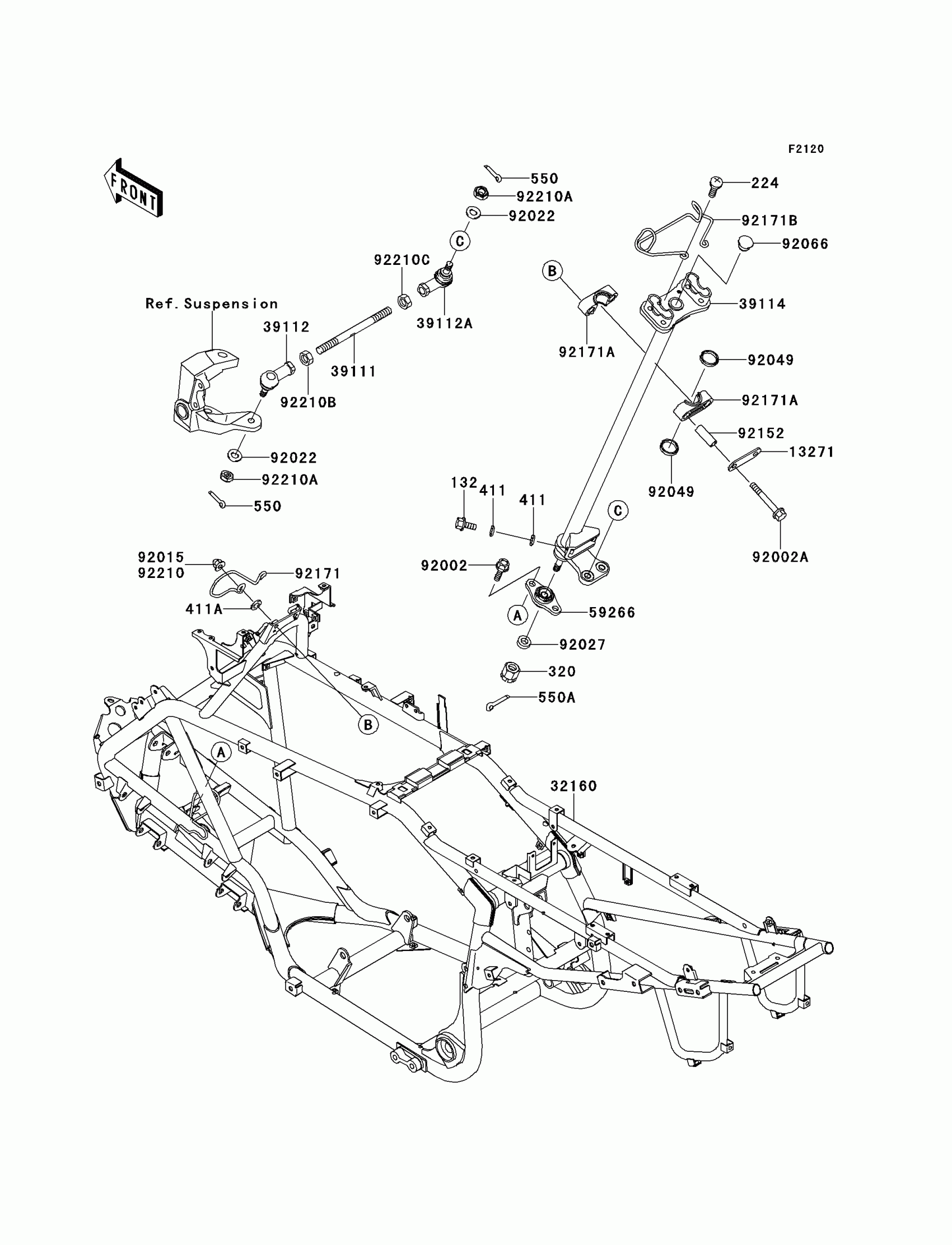

Kawasaki KFX®700 Frame Diagram
#
Description
Price
132
BOLT-FLANGED-SMALL,6X16
132BB0616
Unavailable
224
SCREW-PAN-WP-CROS,6X14
224AB0614
Unavailable
320
NUT-CASTLE
320BA1000
Unavailable
411
WASHER-PLAIN,6MM
411AA0600
Unavailable
411A
WASHER-PLAIN,8.5X18X1.6
411AB0800
Unavailable
550
PIN-COTTER,2.0X15
550AA2015
Unavailable
550A
PIN-COTTER,2.5X18
550AA2518
Unavailable
13271
PLATE
13271-1887
Unavailable
32160
FRAME-COMP,G.GRAY
32160-0028-HN
Unavailable
39111
ROD-TIE
39111-0010
Unavailable
39112
RODEND-TIE,RIGHT HANDED
39112-1087
Unavailable
39112A
RODEND-TIE,LEFT HANDED
39112-1088
Unavailable
39114
SHAFT-COMP-STRG
39114-0001
Unavailable
59266
JOINT-BALL
59266-0001
Unavailable
92002
BOLT,8X20
92002-1250
Unavailable
92002A
BOLT,FLANGED,8X65
92002-1349
Unavailable
92015
NUT,CAP,8MM,BLACK
92015-1174
Unavailable
92022
WASHER,10.2X20X1.5
92022-3742
Unavailable
92027
COLLAR,10X21.3X7
92027-1817
Unavailable
92049
SEAL-OIL,SR25.4X31X3.8
92049-1611
Unavailable
92066
PLUG
92066-1220
Unavailable
92152
COLLAR,9.1X13.9X39.2
92152-1456
Unavailable
92171
CLAMP,CABLE
92171-0066
Unavailable
92171A
CLAMP,STEERING SHAFT
92171-1542
Unavailable
92171B
CLAMP,CABLE&HARNESS
92171-1543
Unavailable
92210A
NUT,LOCK,10MM
92210-1184
Unavailable
92210B
NUT,RIGHT HANDED
92210-1385
Unavailable
92210C
NUT,LEFT HANDED
92210-1386
Unavailable
