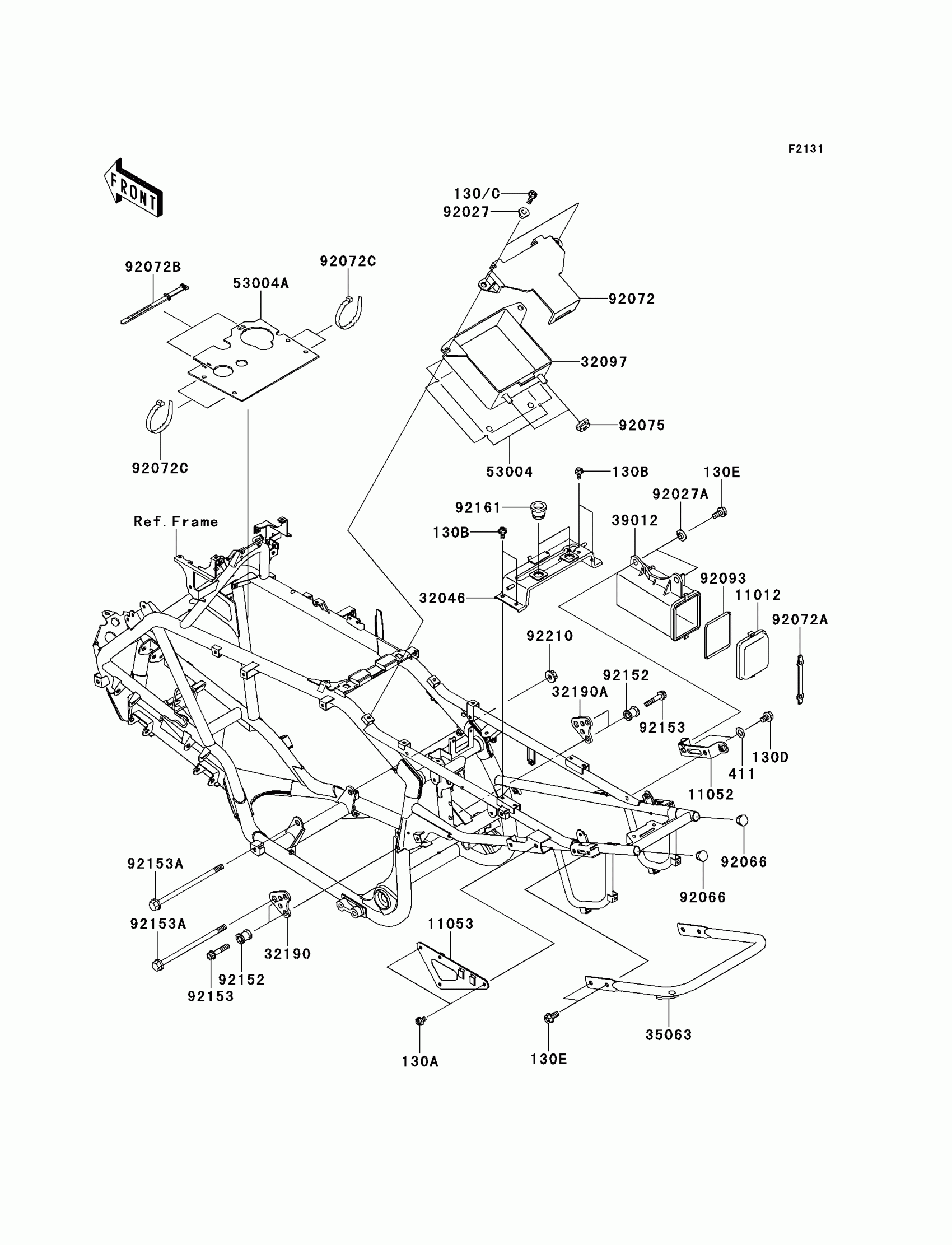

Kawasaki KFX®700 Frame Fittings Diagram
#
130A
BOLT-FLANGED,6X10
130BB0610
Unavailable
130B
BOLT-FLANGED,6X12
130BB0612
Unavailable
130C
BOLT-FLANGED,6X16
130BB0616
Unavailable
130D
BOLT-FLANGED,8X12
130BB0812
Unavailable
130E
BOLT-FLANGED,8X16
130BB0816
Unavailable
411
WASHER-PLAIN,8.5X18X1.6
411AB0800
Unavailable
11012
CAP,TOOL CASE
11012-1606
Unavailable
11052
BRACKET,TOOL CASE JOINT
11052-1930
Unavailable
11053
BRACKET,REGULATER,LH
11053-0301
Unavailable
32046
BRACKET-SEAT
32046-0006
Unavailable
32097
CASE-BATTERY
32097-0002
Unavailable
32190
BRACKET-ENGINE,RR,UPP,LH,GRAY
32190-1315-HN
Unavailable
32190A
BRACKET-ENGINE,RR,UPP,RH,GRAY
32190-1316-HN
Unavailable
35063
STAY,GLOVE BAR,G.GRAY
35063-0033-HN
Unavailable
39012
CASE-STORAGE
39012-1055
Unavailable
53004
MAT,BATTERY CASE
53004-0002
Unavailable
53004A
MAT,WATER PROTECT
53004-0009
Unavailable
92027
COLLAR
92027-1166
Unavailable
92027A
COLLAR
92027-1354
Unavailable
92066
PLUG
92066-1220
Unavailable
92072
BAND,BATTERY
92072-0006
Unavailable
92072A
BAND,TOOL CASE CAP
92072-0032
Unavailable
92072B
BAND,L=123
92072-030
Unavailable
92072C
BAND,L=188
92072-1239
Unavailable
92075
DAMPER
92075-1787
Unavailable
92093
SEAL,TOOL CASE CAP
92093-1247
Unavailable
92152
COLLAR,L=25
92152-0061
Unavailable
92153
BOLT,SOCKET,10X45
92153-0408
Unavailable
92153A
BOLT,FLANGED,12X190
92153-1272
Unavailable
92161
DAMPER
92161-0048
Unavailable
92210
NUT,LOCK,FLANGED,12MM
92210-1150
Unavailable
