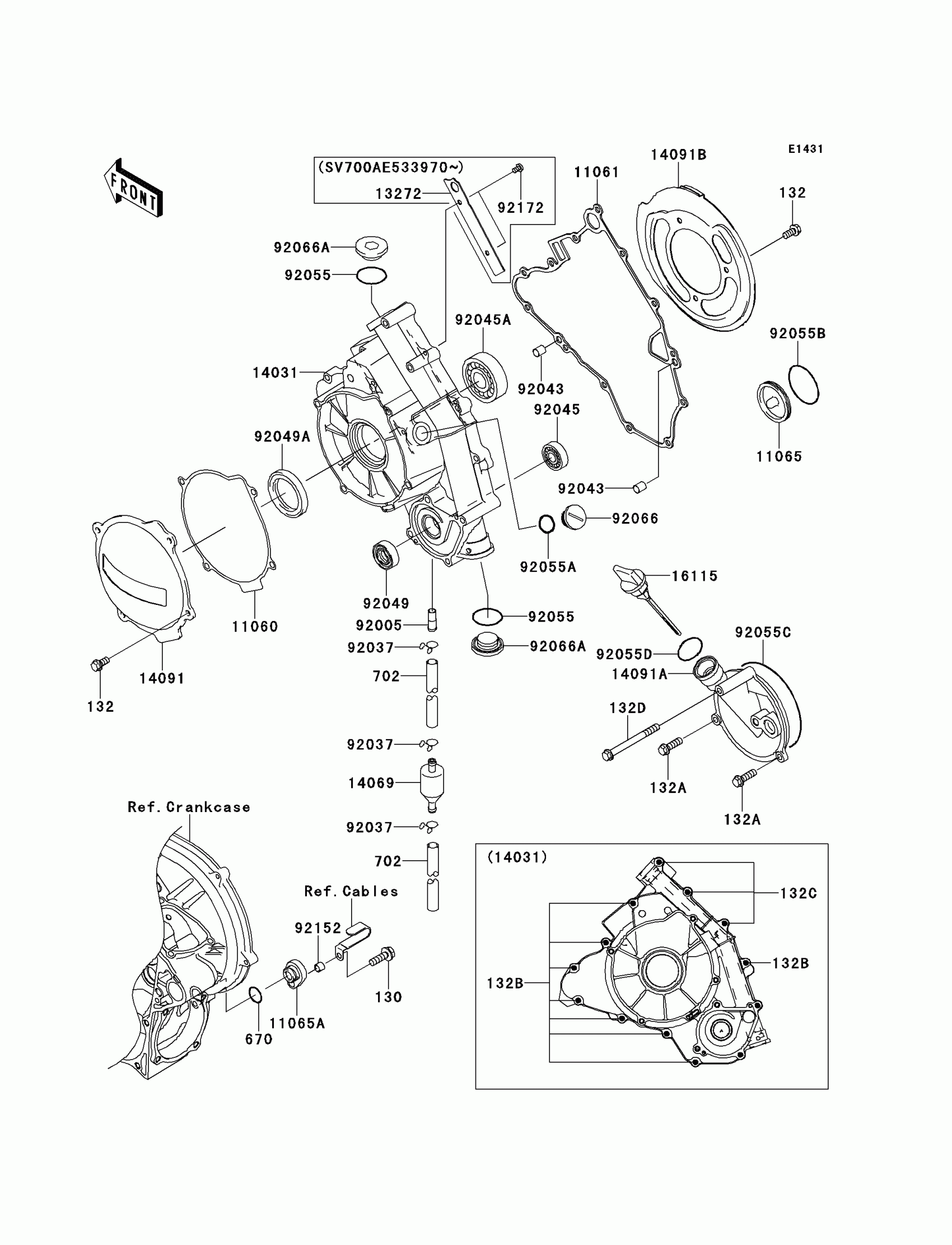

Kawasaki KFX®700 Engine Cover(s) Diagram
#
130
BOLT-FLANGED,6X20
130CD0620
Unavailable
132
BOLT-FLANGED-SMALL,6X12
132BD0612
Unavailable
132A
BOLT-FLANGED-SMALL,6X20
132BD0620
Unavailable
132B
BOLT-FLANGED-SMALL,6X30
132BD0630
Unavailable
132C
BOLT-FLANGED-SMALL,6X55
132BD0655
Unavailable
132D
BOLT-FLANGED-SMALL,6X65
132BD0665
Unavailable
670
O RING,14MM
670D2014
Unavailable
702
TUBE-RUBBER,7X10X35
702A07035
Unavailable
11060
GASKET
11060-1717
Unavailable
11061
GASKET
11061-1119
Unavailable
11065
CAP
11065-1151
Unavailable
11065A
CAP,OIL COVER
11065-1252
Unavailable
13272
PLATE
13272-0707
Unavailable
14031
COVER-GENERATOR
14031-0112
Unavailable
14069
BREATHER
14069-1051
Unavailable
14091
COVER,GENERATOR COVER
14091-1538
Unavailable
14091A
COVER,OIL
14091-1543
Unavailable
14091B
COVER,BELT CONVERTER
14091-1571
Unavailable
16115
CAP-OIL FILLER
16115-0001
Unavailable
92005
FITTING
92005-1369
Unavailable
92037
CLAMP,TUBE
92037-147
Unavailable
92043
PIN,6.2X8X14
92043-1263
Unavailable
92045
BEARING-BALL,6901
92045-1246
Unavailable
92045A
BEARING-BALL
92045-1403
Unavailable
92049
SEAL-OIL,SC 12X22X5
92049-1228
Unavailable
92049A
SEAL-OIL,HTC 28X45X7
92049-1576
Unavailable
92055
RING-O,25.7X2.4
92055-1136
Unavailable
92055A
RING-O,20X2
92055-1146
Unavailable
92055B
RING-O,44.7X2.4
92055-1279
Unavailable
92055C
RING-O,99.5X2.0
92055-1632
Unavailable
92055D
RING-O,20X3
92055-2185
Unavailable
92066
PLUG,COVER
92066-0011
Unavailable
92066A
PLUG,25X8
92066-0012
Unavailable
92152
COLLAR
92152-1332
Unavailable
92172
SCREW,5X8
92172-0119
Unavailable
