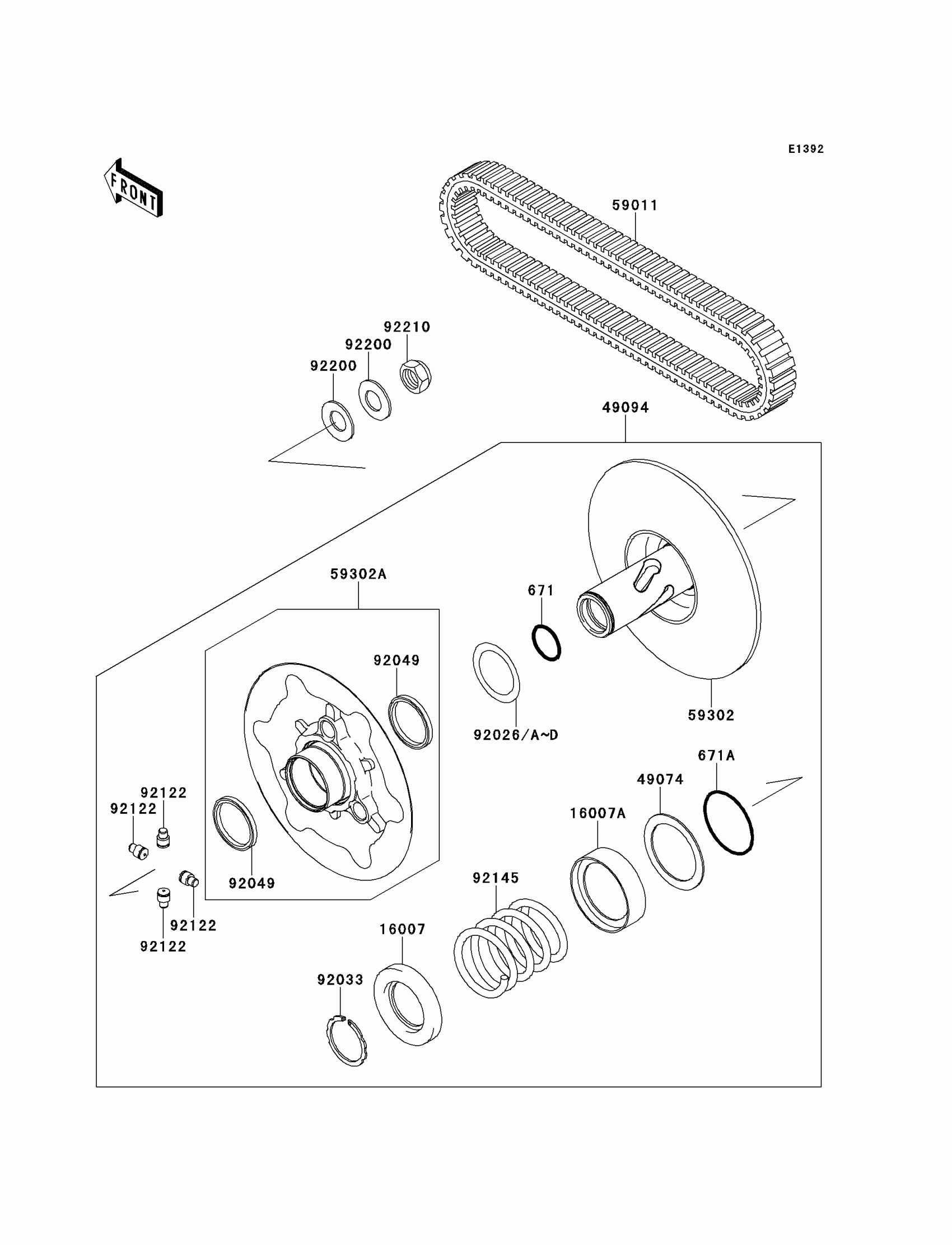

Kawasaki KFX®700 Driven Converter/Drive Belt Diagram

#

Description

Price

671

O RING

671D2530

Unavailable

671A

O RING

671D2550

Unavailable

16007

SEAT-SPRING

16007-1203

Unavailable

16007A

SEAT-SPRING,SHEAVE MOVABLE

16007-1221

Unavailable

49074

PLATE-THRUST

49074-1055

Unavailable

49094

CONVERTER-ASSY-DRIVEN

49094-0005

Unavailable

59011

BELT

59011-0003

Unavailable

59302

SHEAVE-COMP,FIXED

59302-0001

Unavailable

59302A

SHEAVE-COMP,MOVABLE

59302-0002

Unavailable

92026

SPACER,T=0.30

92026-0034

Unavailable

92026A

SPACER,T=1.00

92026-1565

Unavailable

92026B

SPACER,T=0.60

92026-1569

Unavailable

92026C

SPACER,T=1.40

92026-1570

Unavailable

92026D

SPACER,T=0.80

92026-1617

Unavailable

92033

RING-SNAP

92033-1317

Unavailable

92049

SEAL-OIL

92049-1528

Unavailable

92122

ROLLER

92122-1209

Unavailable

92145

SPRING,YELLOW

92145-1462

Unavailable

92200

WASHER

92200-1505

Unavailable

92210

NUT,18MM

92210-1367

Unavailable
