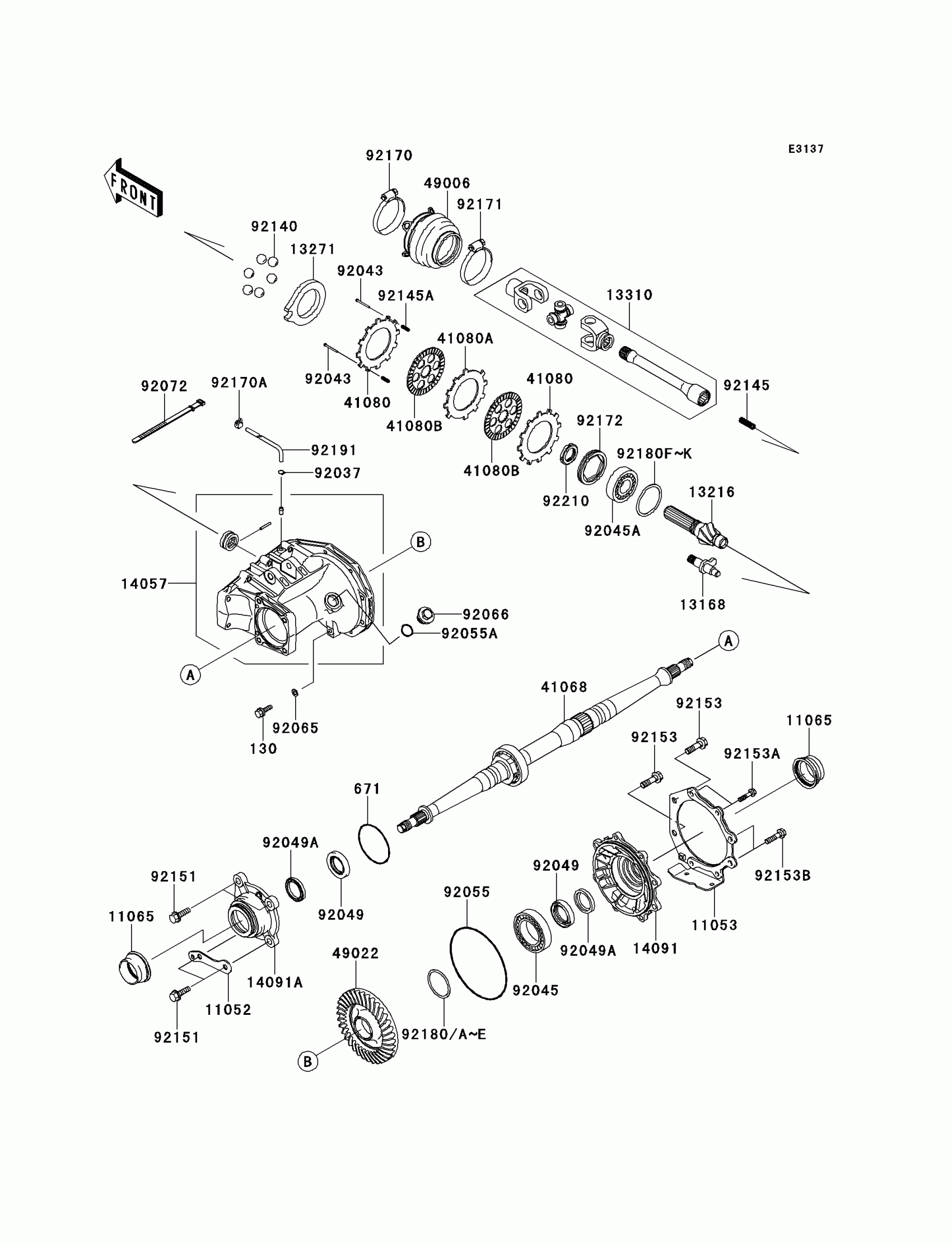

Kawasaki KFX®700 Drive Shaft-Rear Diagram
#
11052
BRACKET,REAR GUARD
11052-1348
Unavailable
11053
BRACKET
11053-0216
Unavailable
11065
CAP
11065-1260
Unavailable
13168
LEVER,BRAKE
13168-1687
Unavailable
13216
GEAR-COMP,RR,8T
13216-0002
Unavailable
13271
PLATE,CAM
13271-1938
Unavailable
13310
SHAFT-ASSY,RR DRIVE SHAFT
13310-1026
Unavailable
14057
CASE-COMP-GEAR
14057-0001
Unavailable
14091
COVER,RH
14091-0028
Unavailable
14091A
COVER,LH
14091-1422
Unavailable
41068
AXLE,RR,DRIVE SHAFT
41068-0003
Unavailable
41080
DISC,PRESSURE
41080-1483
Unavailable
41080A
DISC,SEPARATER
41080-1484
Unavailable
41080B
DISC,FRICTION
41080-1538
Unavailable
49006
BOOT,RR DRIVE SHAFT
49006-1358
Unavailable
49022
GEAR-BEVEL,RR,35T
49022-0004
Unavailable
92037
CLAMP-HOSE
92037-1104
Unavailable
92043
PIN,3X35
92043-1617
Unavailable
92045
BEARING-BALL,55X90X18
92045-0078
Unavailable
92045A
BEARING-BALL,BX30-1C3 UR3
92045-0099
Unavailable
92049
SEAL-OIL,HTC40X58X8
92049-0012
Unavailable
92049A
SEAL-OIL,SC40X52X7
92049-0013
Unavailable
92055
RING-O,156.3X3.7
92055-0004
Unavailable
92055A
RING-O,25.7X2.4
92055-1136
Unavailable
92065
GASKET,8.5X16X1
92065-023
Unavailable
92066
PLUG
92066-1303
Unavailable
92072
BAND,L=186
92072-056
Unavailable
92140
BALL,D/O#12
92140-1064
Unavailable
92145
SPRING,RR DRIVE SHAFT
92145-1300
Unavailable
92145A
SPRING,RETURN
92145-1553
Unavailable
92151
BOLT,10X35
92151-1909
Unavailable
92153
BOLT,12X40
92153-0394
Unavailable
92153A
BOLT,8X35
92153-0395
Unavailable
92153B
BOLT,10X40
92153-0397
Unavailable
92170
CLAMP
92170-1763
Unavailable
130
BOLT-FLANGED,8X16
130BA0816
Unavailable
671
O RING
671D2585
Unavailable
92170A
CLAMP
92170-2043
Unavailable
92171
CLAMP
92171-1383
Unavailable
92172
SCREW,SET,75X10
92172-0341
Unavailable
92180
SHIM,55X64X0.15
92180-1417
Unavailable
92180A
SHIM,55X64X0.20
92180-1418
Unavailable
92180B
SHIM,55X64X0.50
92180-1419
Unavailable
92180C
SHIM,55X64X0.80
92180-1420
Unavailable
92180D
SHIM,55X64X1.00
92180-1421
Unavailable
92180E
SHIM,55X64X1.20
92180-1422
Unavailable
92180F
SHIM,60X72X0.15
92180-1423
Unavailable
92180G
SHIM,60X72X0.20
92180-1424
Unavailable
92180H
SHIM,60X72X0.50
92180-1425
Unavailable
92180I
SHIM,60X72X0.80
92180-1426
Unavailable
92180J
SHIM,60X72X1.00
92180-1427
Unavailable
92180K
SHIM,60X72X1.20
92180-1428
Unavailable
92191
TUBE,BREATHER,L=1450
92191-0014
Unavailable
92210
NUT,30MM
92210-1294
Unavailable
