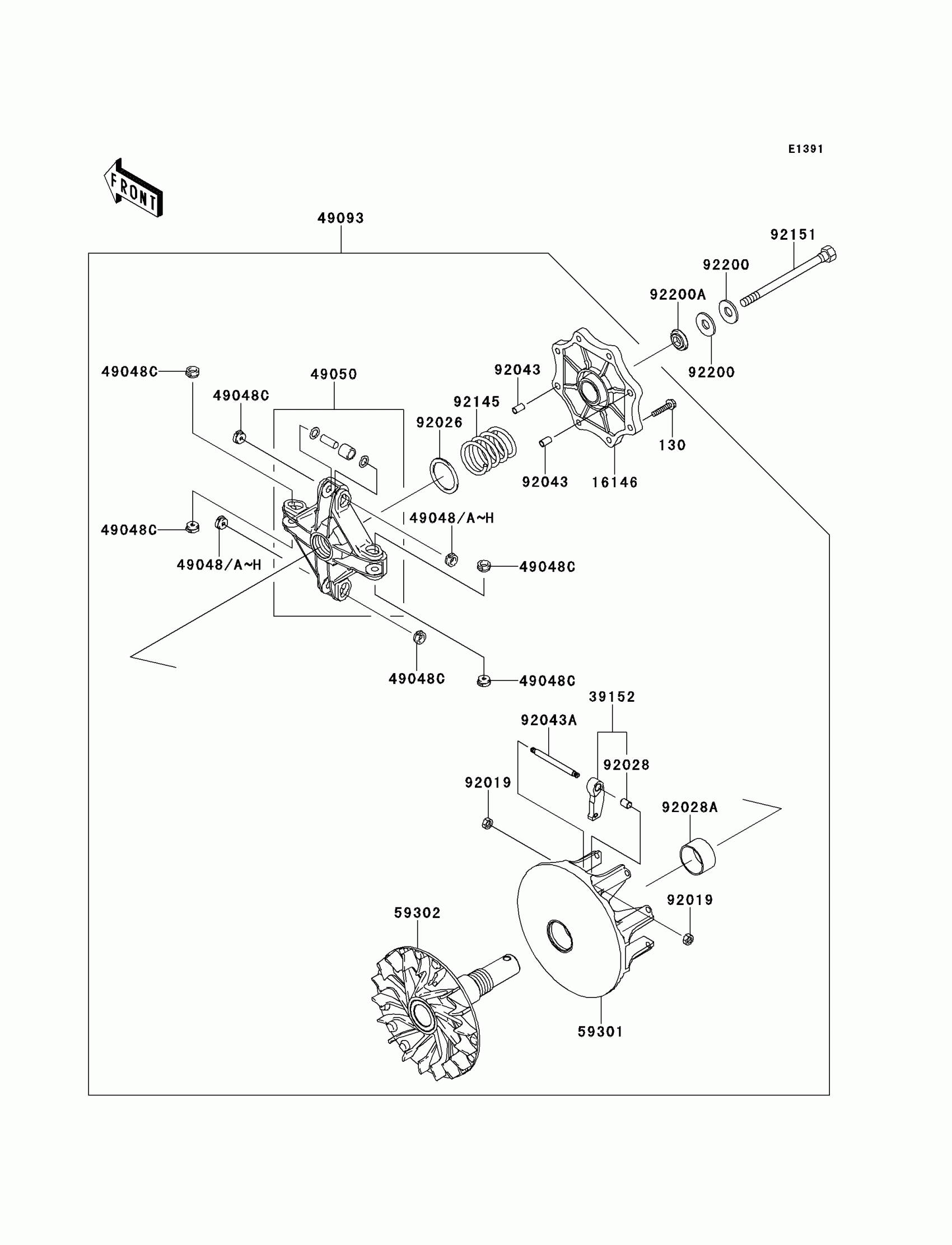

Kawasaki KFX®700 Drive Converter Diagram
#
Description
Price
130
BOLT-FLANGED,6X30
130CA0630
Unavailable
16146
COVER-ASSY
16146-1231
Unavailable
39152
WEIGHT-RAMP
39152-1088
Unavailable
49048
SHOE,T=7.2
49048-1087
Unavailable
49048A
SHOE,T=7.3
49048-1088
Unavailable
49048B
SHOE,T=7.4
49048-1089
Unavailable
49048C
SHOE,T=7.5
49048-1090
Unavailable
49048D
SHOE,T=7.6
49048-1091
Unavailable
49048E
SHOE,T=7.7
49048-1092
Unavailable
49048F
SHOE,T=7.8
49048-1093
Unavailable
49048G
SHOE,T=7.9
49048-1094
Unavailable
49048H
SHOE,T=8.0
49048-1095
Unavailable
49050
SPIDER
49050-1081
Unavailable
49093
CONVERTER-ASSY-DRIVE
49093-0010
Unavailable
59301
SHEAVE-MOVABLE
59301-1070
Unavailable
59302
SHEAVE-COMP
59302-0003
Unavailable
92019
NUT,LOCK,6MM
92019-008
Unavailable
92026
SPACER,39X49.5X1.0
92026-1603
Unavailable
92028
BUSHING
92028-1973
Unavailable
92028A
BUSHING
92028-1975
Unavailable
92043
PIN,6.2X8X14
92043-1263
Unavailable
92043A
PIN
92043-1688
Unavailable
92145
SPRING
92145-0021
Unavailable
92151
BOLT,12X165
92151-1393
Unavailable
92200
WASHER,SPRING
92200-1504
Unavailable
92200A
WASHER
92200-1634
Unavailable
