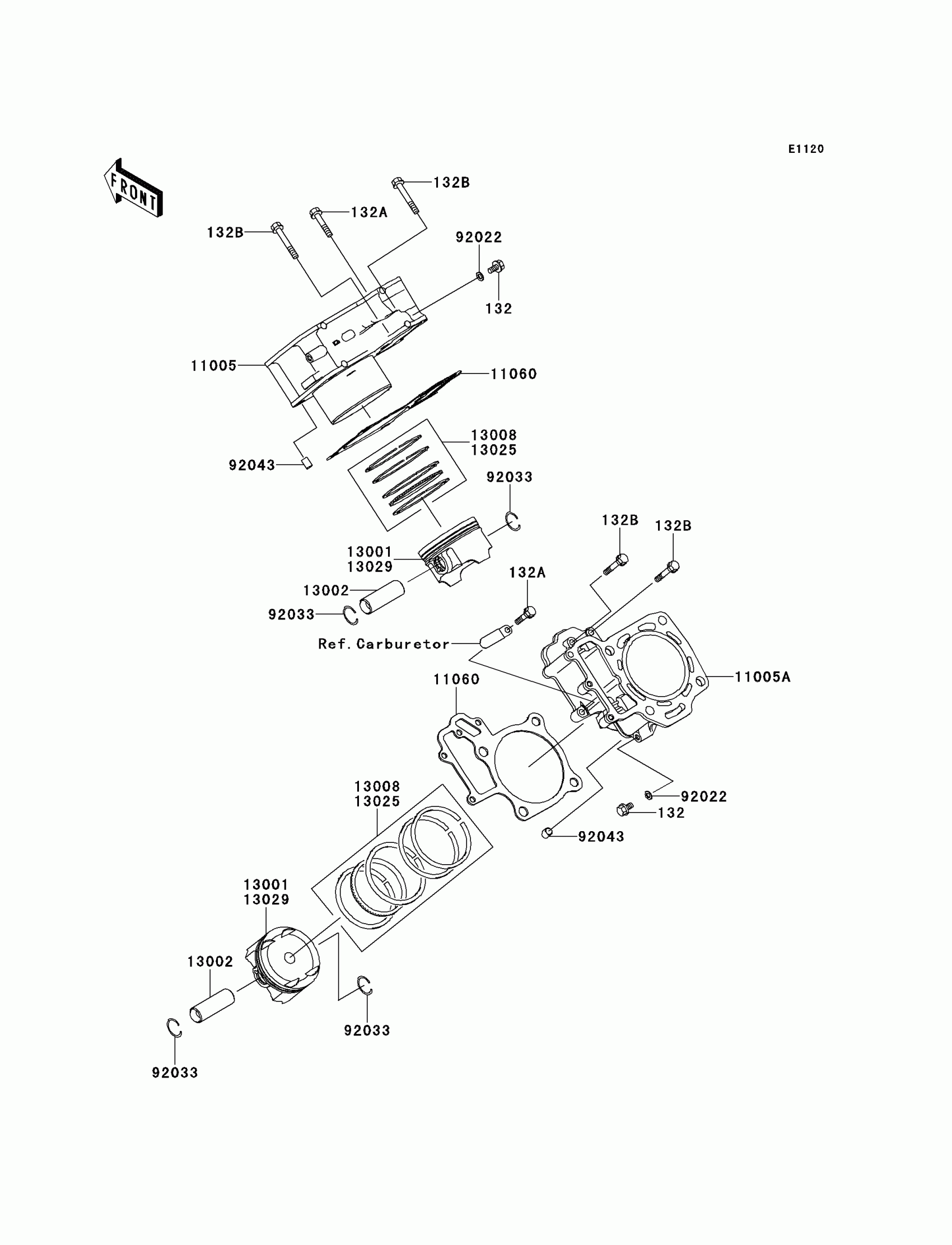

Kawasaki KFX®700 Cylinder/Piston(s) Diagram

#

Description

Price

132

BOLT-FLANGED-SMALL,6X12

132BD0612

Unavailable

132A

BOLT-FLANGED-SMALL,6X30

132BD0630

Unavailable

132B

BOLT-FLANGED-SMALL,6X40

132BD0640

Unavailable

11005

CYLINDER-ENGINE,FR

11005-1990

Unavailable

11005A

CYLINDER-ENGINE,RR

11005-1992

Unavailable

11060

GASKET,CYLINDER BASE

11060-1965

Unavailable

13001

PISTON-ENGINE,STD

13001-1658

Unavailable

13002

PIN-PISTON

13002-1060

Unavailable

13008

RING-SET-PISTON,STD

13008-1215

Unavailable

13025

RING-SET-PISTON L,O/S 0.50

13025-0005

Unavailable

13029

PISTON-ENGINE L,O/S 0.50

13029-0007

Unavailable

92022

WASHER,6.2X11X1

92022-304

Unavailable

92033

RING-SNAP

92033-1207

Unavailable

92043

PIN,10.1X12X14

92043-4009

Unavailable
