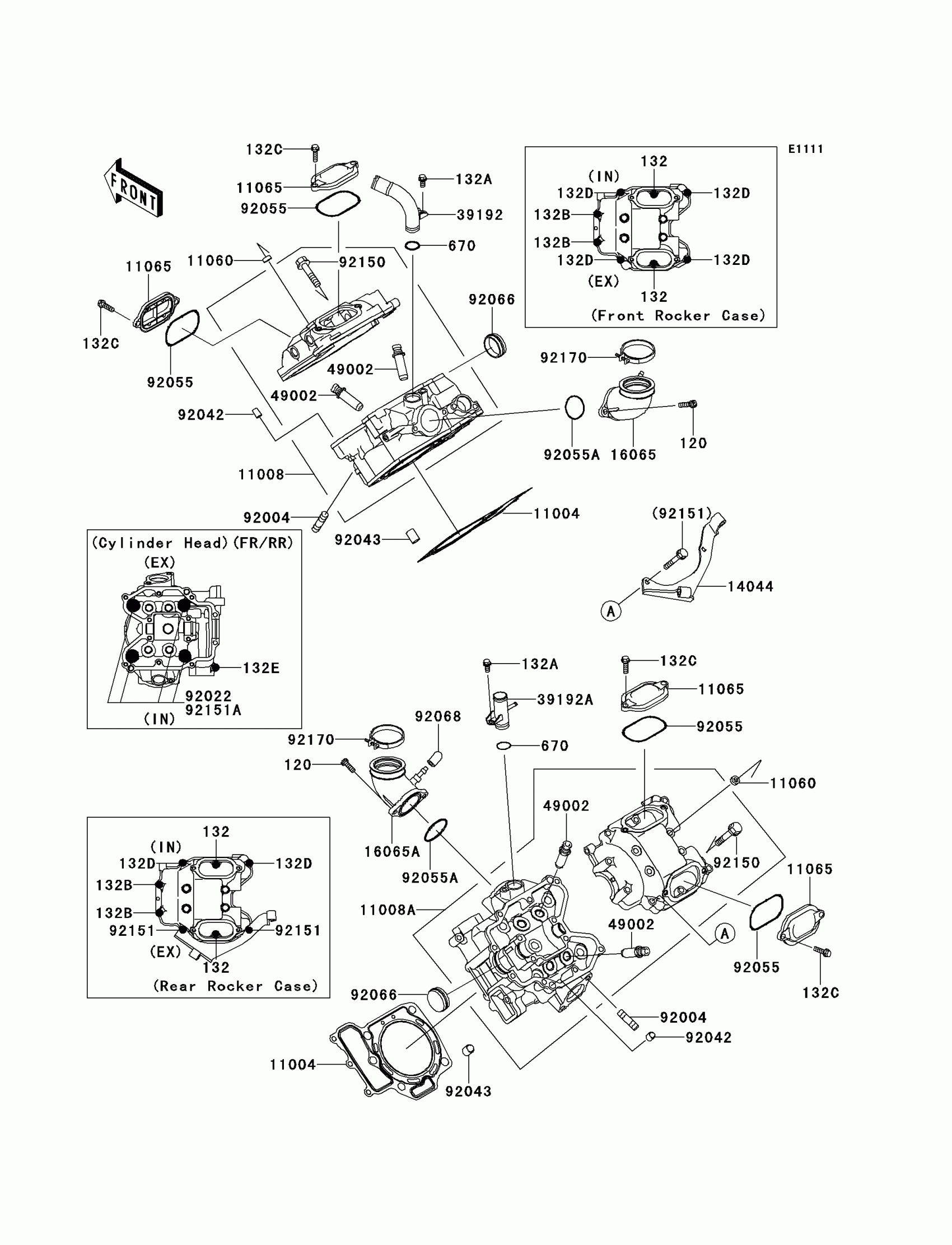

Kawasaki KFX®700 Cylinder Head Diagram
#
120
BOLT-SOCKET,6X20
120CD0620
Unavailable
132
BOLT-FLANGED-SMALL,6X25
132BA0625
Unavailable
132A
BOLT-FLANGED-SMALL,6X12
132BD0612
Unavailable
132B
BOLT-FLANGED-SMALL,6X130
132BD06130
Unavailable
132C
BOLT-FLANGED-SMALL,6X20
132BD0620
Unavailable
132D
BOLT-FLANGED-SMALL,6X30
132BD0630
Unavailable
132E
BOLT-FLANGED-SMALL,6X95
132BD0695
Unavailable
670
O RING,16MM
670B2016
Unavailable
11004
GASKET-HEAD
11004-0050
Unavailable
11008
HEAD-COMP-CYLINDER,FR
11008-0030
Unavailable
11008A
HEAD-COMP-CYLINDER,RR
11008-0031
Unavailable
11060
GASKET,6.2X12X0.3
11060-1994
Unavailable
11065
CAP,ROCKER CASE
11065-1152
Unavailable
14044
HOLDER-CABLE
14044-0001
Unavailable
16065
HOLDER-CARBURETOR,FR
16065-1370
Unavailable
16065A
HOLDER-CARBURETOR,RR
16065-1371
Unavailable
39192
PIPE-WATER
39192-1132
Unavailable
39192A
PIPE-WATER
39192-1133
Unavailable
49002
GUIDE-VALVE
49002-1097
Unavailable
92004
STUD,8X22
92004-1217
Unavailable
92022
WASHER,11.5X20.5X1.6
92022-1720
Unavailable
92042
PIN,DOWEL,6.3X8X14
92042-007
Unavailable
92043
PIN,10.1X12X14
92043-4009
Unavailable
92055
RING-O
92055-0112
Unavailable
92055A
RING-O,38MM
92055-1295
Unavailable
92066
PLUG
92066-1289
Unavailable
92068
PLUG,12X25
92068-006
Unavailable
92150
BOLT,6X55
92150-1302
Unavailable
92151
BOLT,FLANGED,6X34
92151-1209
Unavailable
92151A
BOLT,FLANGED,10X150
92151-1917
Unavailable
92170
CLAMP
92170-1722
Unavailable
