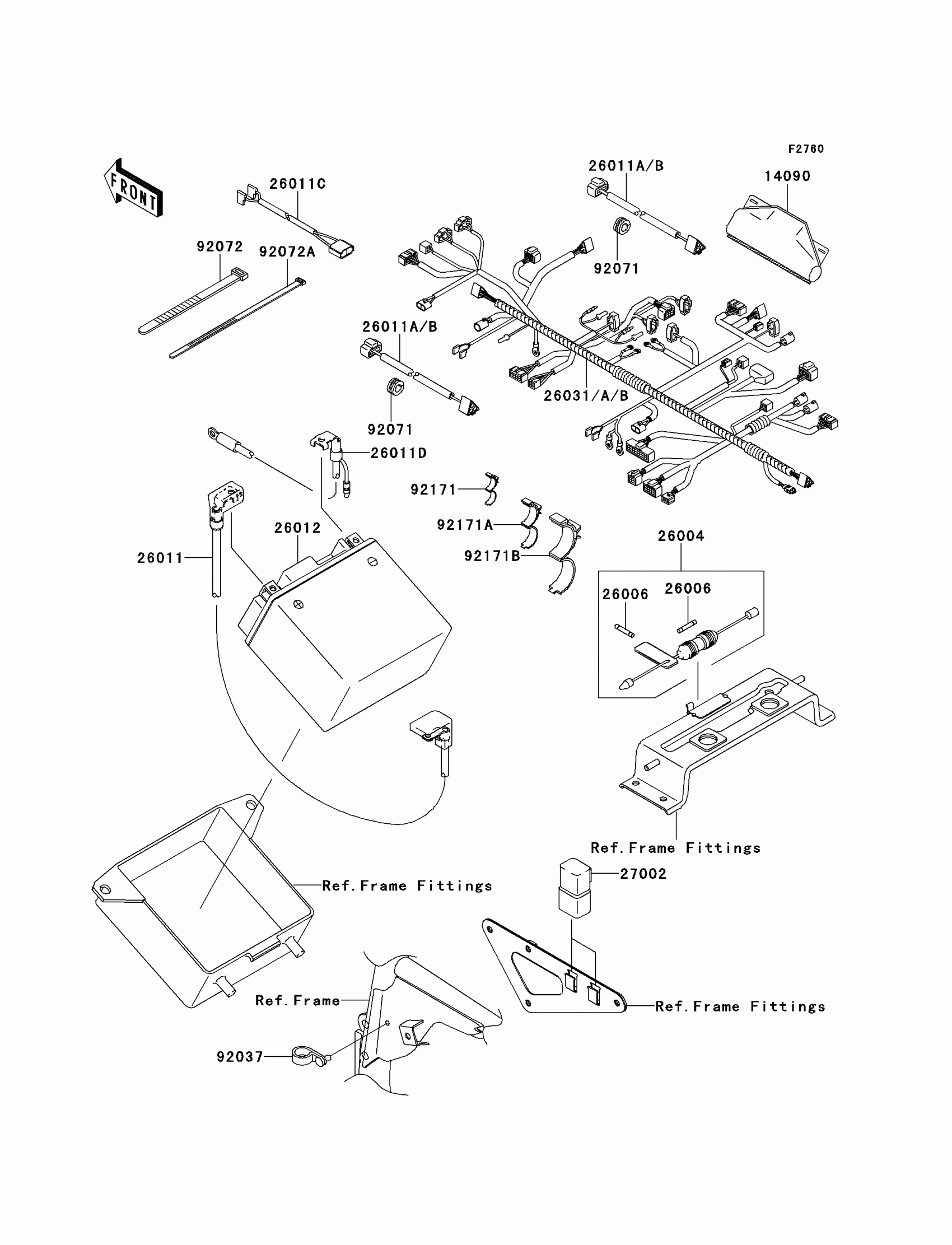

Kawasaki KFX®700 Chassis Electrical Equipment Diagram

#

Description

Price

14090

COVER,COUPLER

14090-1331

Unavailable

26004

FUSE-ASSY

26004-7501

Unavailable

26006

FUSE,GLASS TUBE,6.4X31.8,20A

26006-1064

Unavailable

26011

WIRE-LEAD,BATTERY(+)

26011-0009

Unavailable

26011A

WIRE-LEAD,HEAD LAMP

26011-0143

Unavailable

26011C

WIRE-LEAD,FRONT BRAKE

26011-1802

Unavailable

26011D

WIRE-LEAD,BATTERY(-)

26011-1847

Unavailable

26012

BATTERY,MF,KMX14-BS,12V 12AH

26012-1414

Unavailable

26031A

HARNESS,MAIN

26031-0711

Unavailable

27002

RELAY-ASSY

27002-1086

Unavailable

92037

CLAMP,SPEED,L=58

92037-1163

Unavailable

92071

GROMMET

92071-1128

Unavailable

92072

BAND,L=123

92072-030

Unavailable

92072A

BAND,L=188

92072-1239

Unavailable

92171

CLAMP,10MM DIA.

92171-1423

Unavailable

92171A

CLAMP,DIA=15

92171-1424

Unavailable

92171B

CLAMP,25MM DIA.

92171-1559

Unavailable
