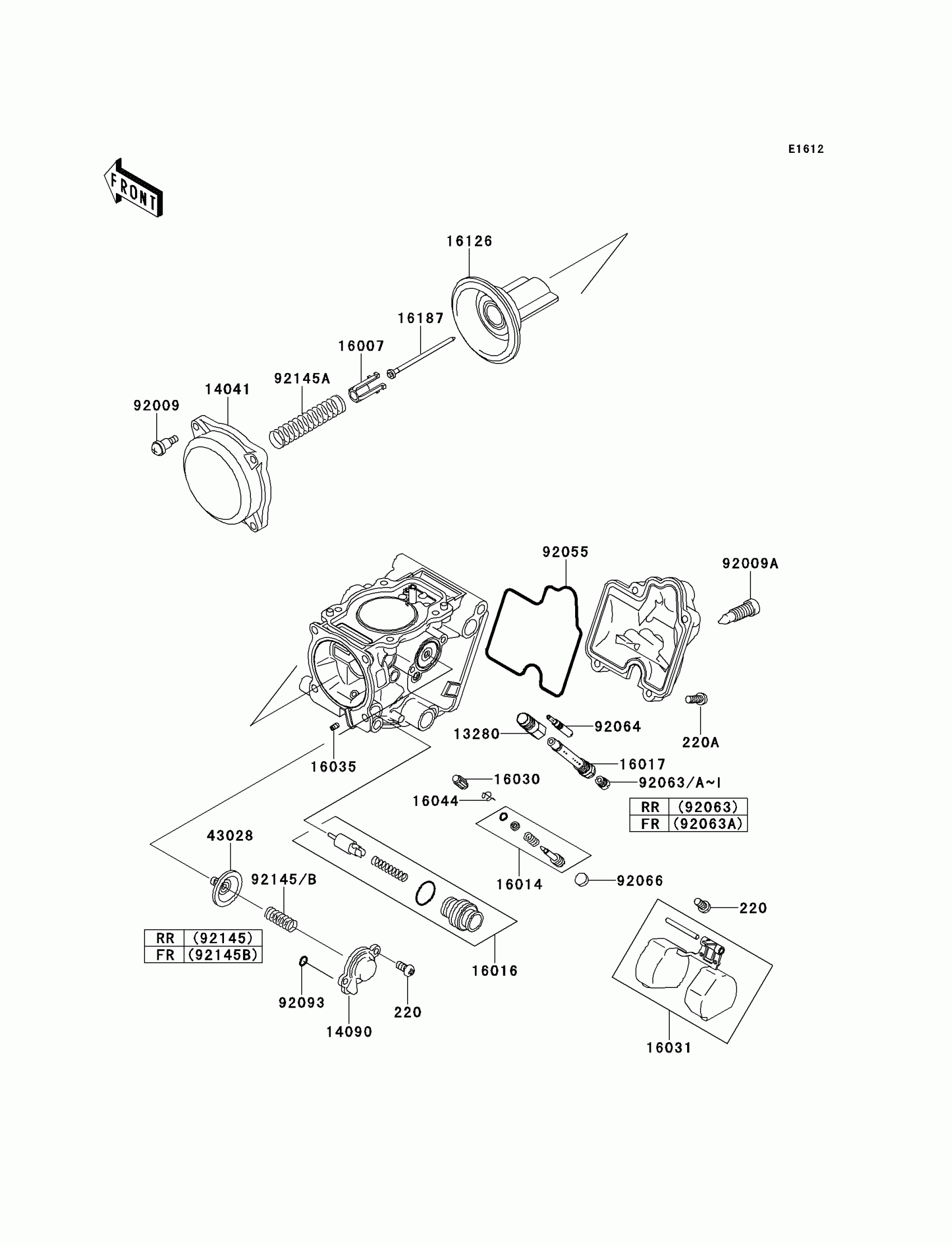

Kawasaki KFX®700 Carburetor Parts Diagram
#
13280
HOLDER,JET
13280-1096
Unavailable
14041
CAP-CHAMBER,MIXING
14041-1090
Unavailable
14090
COVER,AIR CUT VALVE
14090-1984
Unavailable
16007
SEAT-SPRING,THROTTLE VALVE
16007-1120
Unavailable
16014
SCREW-PILOT AIR
16014-1105
Unavailable
16016
PLUNGER
16016-1117
Unavailable
16017
JET-NEEDLE
16017-1441
Unavailable
16030
VALVE-FLOAT
16030-1007
Unavailable
16031
FLOAT
16031-1097
Unavailable
16035
JET-AIR,LEAK
16035-1055
Unavailable
16044
CLAMP,FLOAT VALVE
16044-007
Unavailable
16126
VALVE,VACUUM
16126-1226
Unavailable
16187
NEEDLE-JET,NBZH
16187-0021
Unavailable
43028
DIAPHRAGM,AIR CUT VALVE
43028-1085
Unavailable
92009
SCREW,4X4.4
92009-1549
Unavailable
92009A
SCREW,DRAIN,M6X0.75
92009-1551
Unavailable
92055
RING-O,FLOAT CHAMBER
92055-1589
Unavailable
92063
JET-MAIN,#140
92063-1013
Unavailable
92063A
JET-MAIN,#135
92063-1014
Unavailable
92063B
JET-MAIN,#138
92063-1015
Unavailable
92063C
JET-MAIN,#142
92063-1016
Unavailable
92063D
JET-MAIN,#145
92063-1017
Unavailable
92063E
JET-MAIN,#125
92063-1069
Unavailable
92063F
JET-MAIN,#120
92063-1072
Unavailable
92063G
JET-MAIN,#128
92063-1074
Unavailable
92063H
JET-MAIN,#130
92063-1075
Unavailable
92063I
JET-MAIN,#132
92063-1076
Unavailable
92064
JET-PILOT,#40
92064-0005
Unavailable
92066
PLUG,PILOT AIR SCREW,6.9X2
92066-1051
Unavailable
92093
SEAL-"U"RING
92093-1046
Unavailable
92145
SPRING,AIR CUT VALVE,RR
92145-0097
Unavailable
92145A
SPRING,VACUUM VALVE
92145-1227
Unavailable
220
SCREW-PAN-CROS,4X8
220AA0408
Unavailable
220A
SCREW-PAN-CROS,4X14
220AA0414
Unavailable
92145B
SPRING,AIR CUT VALVE
92145-1450
Unavailable
