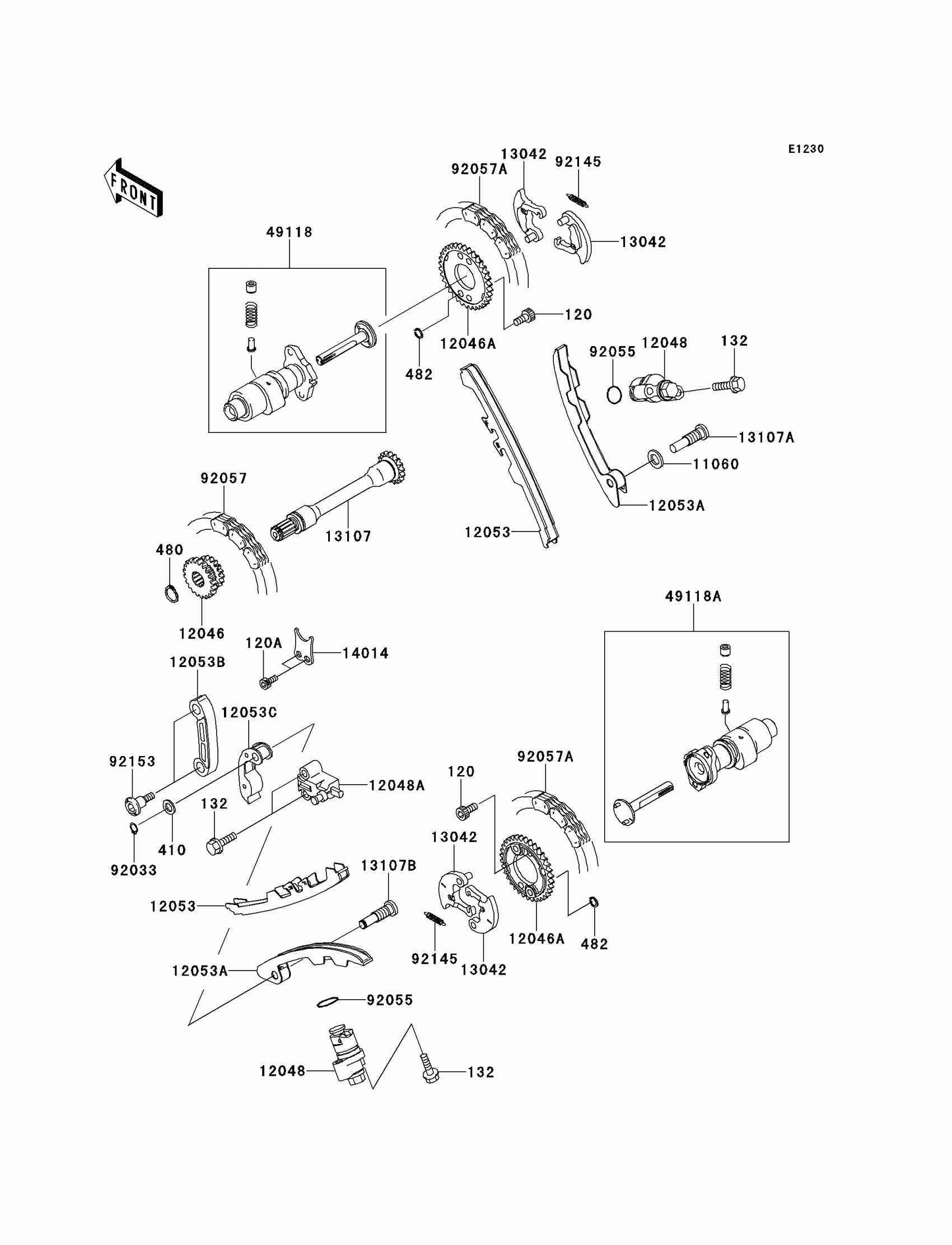

Kawasaki KFX®700 Camshaft(s)/Tensioner Diagram
#
Description
Price
120
BOLT-SOCKET,6X10
120CA0610
Unavailable
120A
BOLT-SOCKET,6X14
120CB0614
Unavailable
132
BOLT-FLANGED-SMALL,6X30
132BD0630
Unavailable
410
WASHER-PLAIN-SMALL,8MM
410AA0800
Unavailable
480
CIRCLIP-TYPE-C,14MM
480J1400
Unavailable
482
CIRCLIP-TYPE-E,5MM
482J5000
Unavailable
11060
GASKET
11060-1966
Unavailable
12046
SPROCKET,21T&17T
12046-0021
Unavailable
12046A
SPROCKET,CAMSHAFT,34T
12046-1203
Unavailable
12048
TENSIONER-ASSY,CAM
12048-1176
Unavailable
12048A
TENSIONER-ASSY,SECONDARY
12048-1177
Unavailable
12053
GUIDE-CHAIN,CAMSHAFT,TENSION
12053-1441
Unavailable
12053A
GUIDE-CHAIN,CAMSHAFT,SLACK
12053-1442
Unavailable
12053B
GUIDE-CHAIN,TENSION
12053-1443
Unavailable
12053C
GUIDE-CHAIN,SLACK
12053-1444
Unavailable
13042
WEIGHT,DECOMP
13042-1141
Unavailable
13107
SHAFT
13107-0029
Unavailable
13107A
SHAFT,CHAIN GUIDE,FR
13107-1443
Unavailable
13107B
SHAFT,CHAIN GUIDE,RR
13107-1444
Unavailable
14014
PLATE-POSITION,DRIVE
14014-1148
Unavailable
49118
CAMSHAFT-COMP,FR
49118-0001
Unavailable
49118A
CAMSHAFT-COMP,RR
49118-0002
Unavailable
92033
RING-SNAP,8MM
92033-1039
Unavailable
92055
RING-O,18.8X1.9
92055-086
Unavailable
92057
CHAIN,DID SCR-0412 SDH
92057-0073
Unavailable
92057A
CHAIN,DID SCR-0409 SDH
92057-0074
Unavailable
92145
SPRING,DECOMP
92145-1303
Unavailable
92153
BOLT,SOCKET,6X24.5
92153-1200
Unavailable
