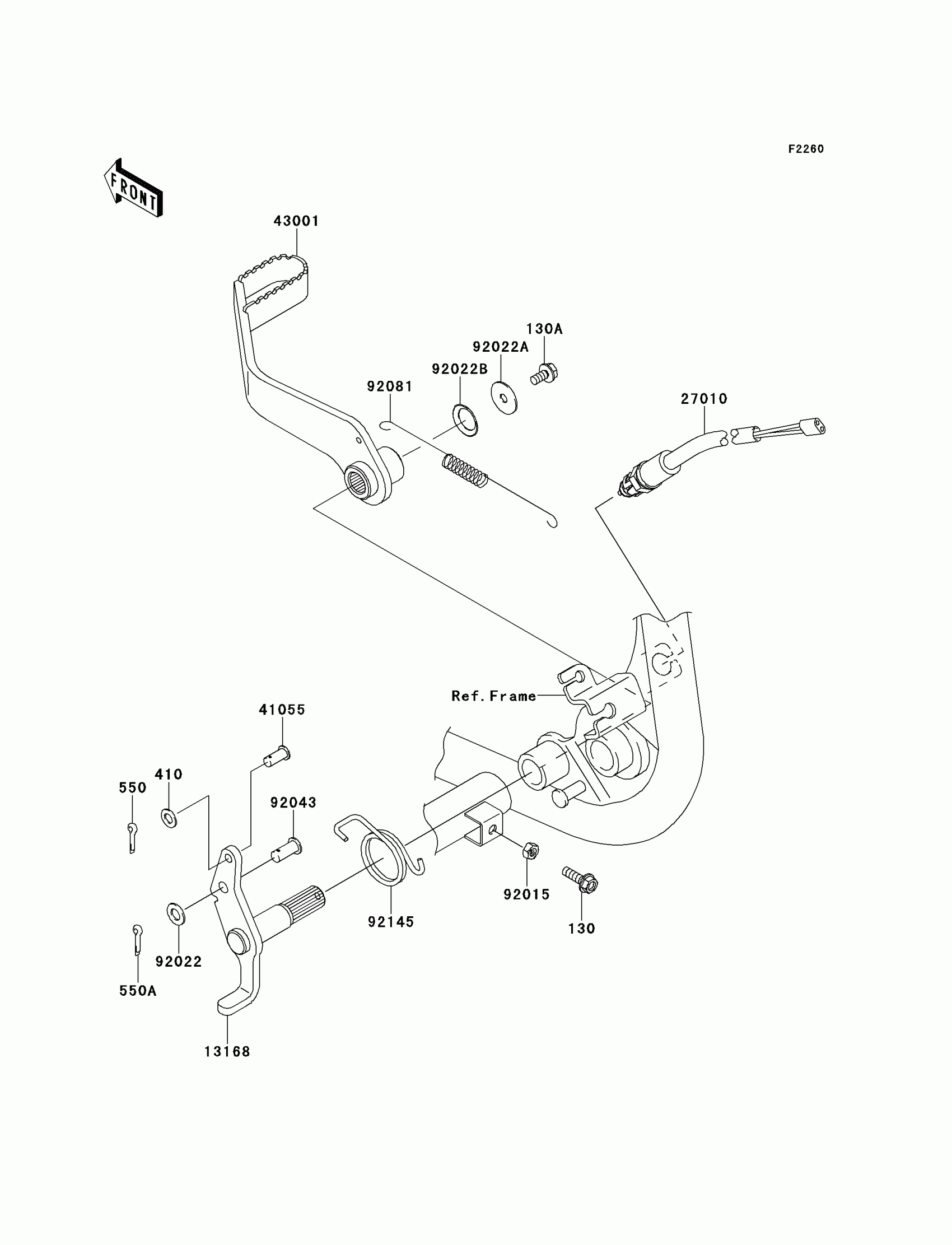

Kawasaki KFX®700 Brake Pedal Diagram

#

Description

Price

130

BOLT-FLANGED,6X20

130BA0620

Unavailable

130A

BOLT-FLANGED,6X12

130BB0612

Unavailable

410

WASHER-PLAIN-SMALL

410AA0600

Unavailable

550

PIN-COTTER,1.2X10

550AA1210

Unavailable

550A

PIN-COTTER,2.0X15

550AA2015

Unavailable

13168

LEVER

13168-0014

Unavailable

27010

SWITCH,BRAKE

27010-1494

Unavailable

41055

PIN BRAKE CONNECT ROD

41055-003

Unavailable

43001

LEVER-BRAKE,PEDAL,G.GRAY

43001-0011-HN

Unavailable

92015

NUT,6MM

92015-1410

Unavailable

92022

WASHER,8.5X16X1.2

92022-1582

Unavailable

92022A

WASHER,6.5X24X2

92022-1690

Unavailable

92022B

WASHER,SPRING,T=0.3

92022-1943

Unavailable

92043

PIN,8X16

92043-1013

Unavailable

92081

SPRING,BRAKE SWITCH

92081-1565

Unavailable

92145

SPRING,BRAKE PEDAL RETURN

92145-1534

Unavailable
