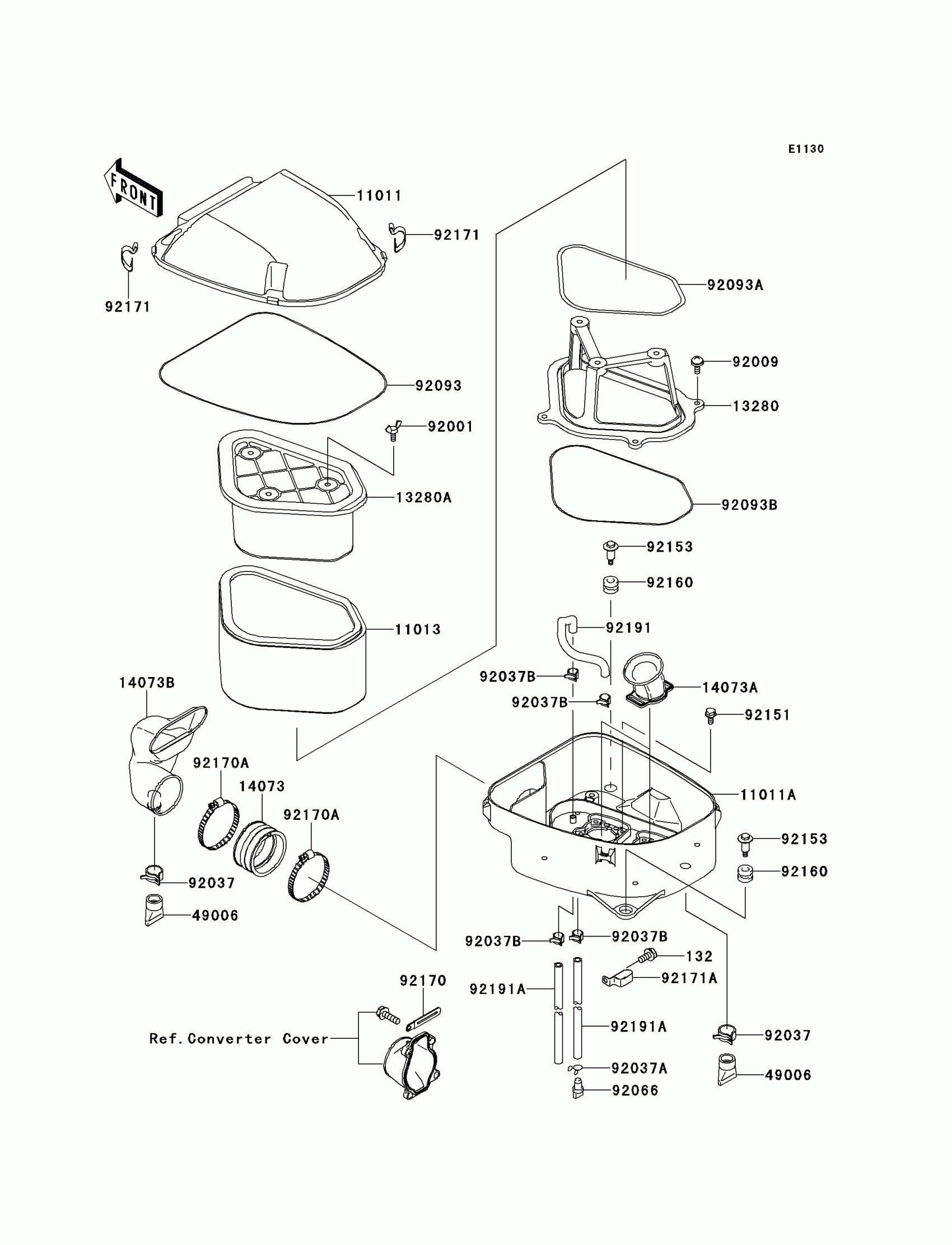

Kawasaki KFX®700 Air Cleaner Diagram
#
Description
Price
132
BOLT-FLANGED-SMALL,6X12
132BD0612
Unavailable
11011
CASE-AIR FILTER,UPP
11011-0046
Unavailable
11011A
CASE-AIR FILTER,LWR
11011-0047
Unavailable
11013
ELEMENT-AIR FILTER
11013-0001
Unavailable
13280
HOLDER
13280-0111
Unavailable
13280A
HOLDER
13280-1272
Unavailable
14073
DUCT,JOINT
14073-1775
Unavailable
14073A
DUCT,AIR FANNEL
14073-1830
Unavailable
14073B
DUCT, INTAKE
14073-1849
Unavailable
49006
BOOT
49006-1292
Unavailable
92001
BOLT,WING,6X15
92001-1703
Unavailable
92009
SCREW,6X16
92009-1621
Unavailable
92037
CLAMP,HOSE CLIP
92037-1460
Unavailable
92037A
CLAMP,TUBE
92037-147
Unavailable
92037B
CLAMP,TUBE
92037-1505
Unavailable
92066
PLUG,DRAIN
92066-1211
Unavailable
92093
SEAL,AIR FILTER CASE
92093-1522
Unavailable
92093A
SEAL,HOLDER-HOLDER
92093-1569
Unavailable
92093B
SEAL
92093-1570
Unavailable
92151
BOLT,FLANGED,5X12
92151-1305
Unavailable
92153
BOLT,FLANGED,6X28.7
92153-1052
Unavailable
92160
DAMPER
92160-1594
Unavailable
92170
CLAMP
92170-1514
Unavailable
92170A
CLAMP
92170-1764
Unavailable
92171
CLAMP,AIR FILTER CASE
92171-1394
Unavailable
92171A
CLAMP,AIR VENT
92171-1522
Unavailable
92191
TUBE,7X11X210
92191-1494
Unavailable
92191A
TUBE,7X11X470
92191-1531
Unavailable
