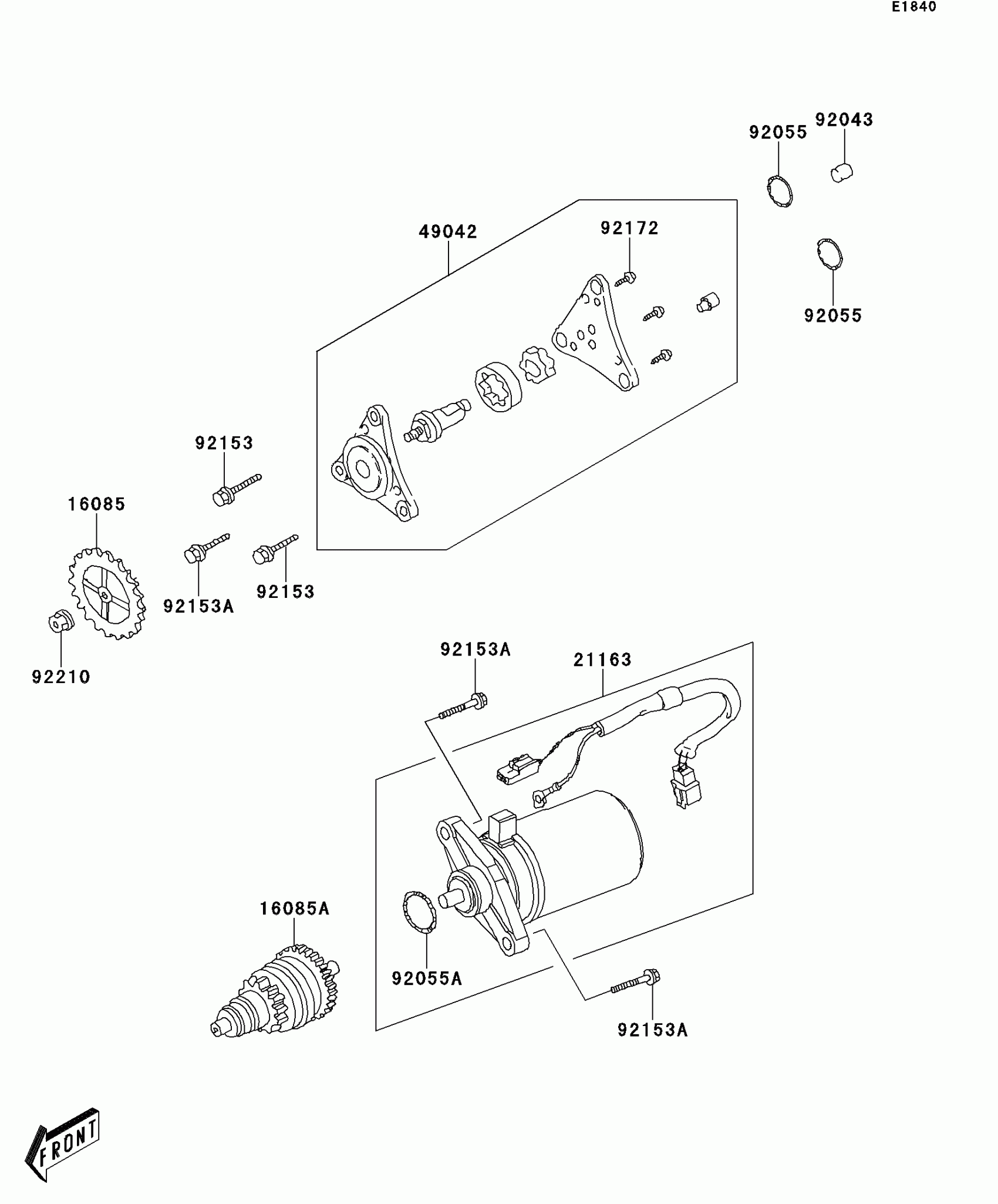

Kawasaki KFX®50 Starter Motor Diagram

#

Description
Price

16085

GEAR,OIL PUMP

16085-Y002

$9.25

16085A

GEAR,STARTER

16085-Y007

$112.71

21163

STARTER-ELECTRIC

21163-Y001

$158.35

49042

PUMP-OIL

49042-Y002

$57.97

92043

PIN,8X12

92043-Y007

$1.24

92055

RING-O,9X1.6

92055-Y009

$0.80

92055A

RING-O

92055-Y012

$1.24

92153

BOLT,FLANGE,6X20

92153-Y049

$0.83

92153A

BOLT,FLANGE,6X25

92153-Y051

$0.90

92172

SCREW,4X10

92172-Y007

$0.81

92210

NUT,6MM

92210-Y027

$0.80
