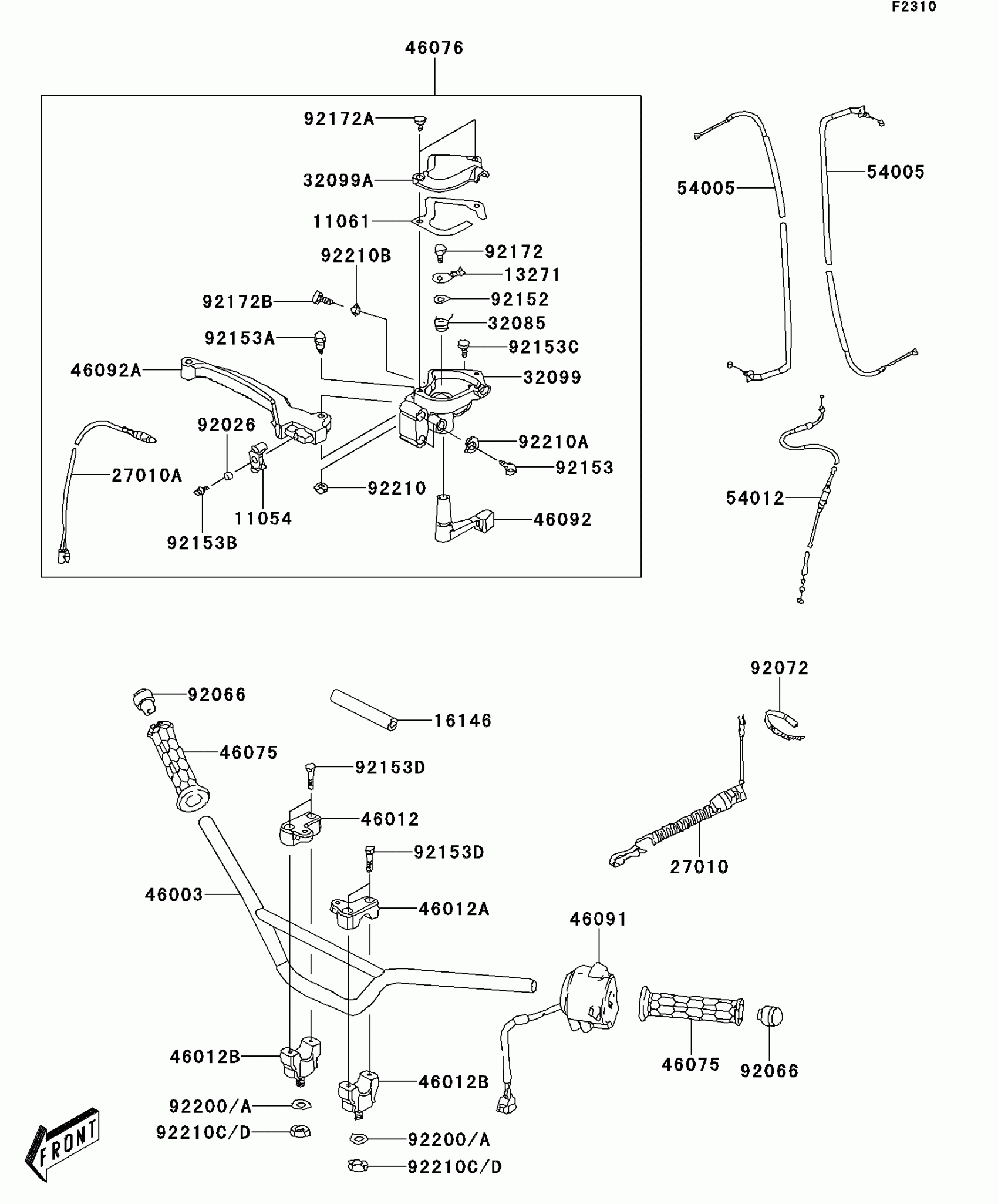

Kawasaki KFX®50 Handlebar Diagram

#

Description
Price

11054

BRACKET

11054-Y001

$9.98

11061

GASKET

11061-Y017

$3.07

13271

PLATE

13271-Y008

$4.31

16146

COVER-ASSY,HANDLE

16146-Y001

$14.19

27010

SWITCH,SAFETY

27010-Y002

$49.60

27010A

SWITCH,STOP

27010-Y003

$13.05

32085

STOPPER

32085-Y001

$4.71

32099

CASE,LWR

32099-Y002

$17.81

32099A

CASE,UPP

32099-Y003

$12.05

46003

HANDLE

46003-Y001

$44.22

46012

HOLDER-HANDLE,UPP,RH

46012-Y001

$6.75

46012A

HOLDER-HANDLE,UPP,LH

46012-Y002

$6.75

46012B

HOLDER-HANDLE,LWR

46012-Y003

$12.90

46075

GRIP,HANDLE

46075-Y001

Unavailable

46076

LEVER-ASSY-GRIP,RH

46076-Y001

$71.81

46091

HOUSING-ASSY-CONTROL,LH

46091-Y001

$78.44

46092

LEVER-GRIP,CHOKE

46092-Y001

$16.05

46092A

LEVER-GRIP,RH

46092-Y002

$13.40

54005

CABLE-BRAKE,FR

54005-Y001

$13.46

54012

CABLE-THROTTLE

54012-Y002

$7.80

92026

SPACER

92026-Y007

$5.75

92066

PLUG

92066-Y002

$0.93

92072

BAND

92072-Y001

$1.61

92152

COLLAR

92152-Y012

$4.95

92153

BOLT

92153-Y002

$4.95

92153A

BOLT,6X22

92153-Y009

$1.61

92153B

BOLT,FLANGE,6X16

92153-Y025

$0.78

92153C

BOLT,SOCKET,6X20

92153-Y060

$1.42

92153D

BOLT,SOCKET,6X25

92153-Y061

$3.93

92172

SCREW,PAN,3X8

92172-Y005

$1.88

92172A

SCREW,PAN,4X16

92172-Y008

$1.88

92172B

SCREW,PAN,5X14

92172-Y009

$0.95

92200A

WASHER,10MM

92200-Y020

$0.78

92210

NUT,6MM

92210-Y008

$1.88

92210A

NUT

92210-Y015

$1.88

92210B

NUT,5MM

92210-Y017

$0.83

92210D

NUT,10MM

92210-Y034

$2.51
