2009 Kawasaki KFX®50 Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 2009 Kawasaki KFX®50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

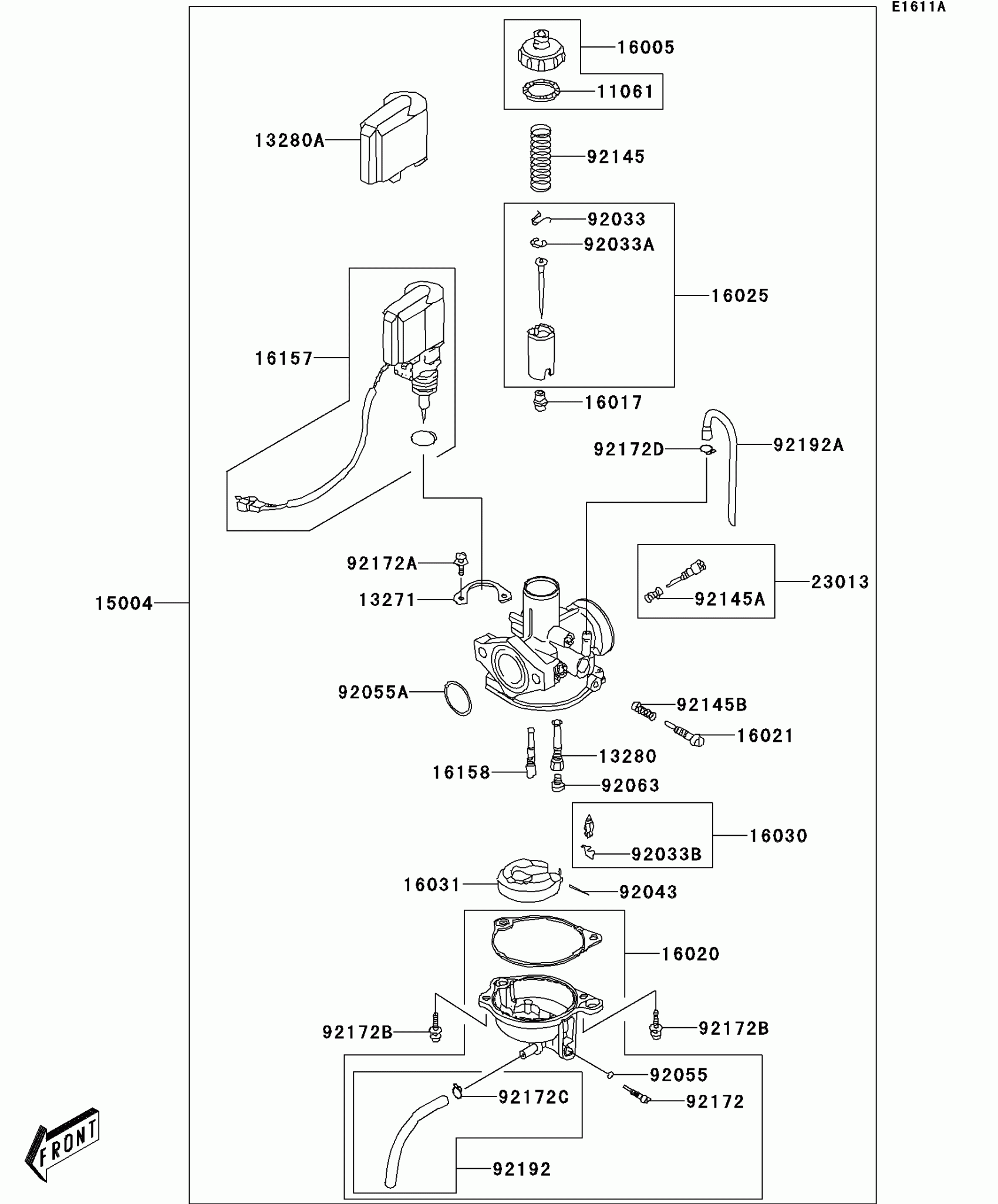

2009 Kawasaki KFX®50 Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET

11061-Y001

1
Out of stock

13271

PLATE

13271-Y001

1
Out of stock

13280

HOLDER,NEEDLE JET

13280-Y007

1

$11.56

In stock

13280A

HOLDER,CAP

13280-Y008

1

$1.63

In stock

15004

CARBURETOR-ASSY

15004-Y001

1
Out of stock

16005

TOP-CHAMBER

16005-Y001

1
Out of stock

16017

JET-NEEDLE

16017-Y001

1
Out of stock

16020

CHAMBER-FLOAT

16020-Y001

1
Out of stock

16021

SCREW-THROTTLE STOP

16021-Y001

1
Out of stock

16025

VALVE-THROTTLE

16025-Y003

1
Out of stock

16030

VALVE-FLOAT,ASSY

16030-Y002

1
Out of stock

16031

FLOAT

16031-Y001

1
Out of stock

16157

JET-STARTER

16157-Y001

1
Out of stock

16158

JET-SLOW

16158-Y001

1
Out of stock

23013

SCREW-ASSY,ADJUST

23013-Y001

1
Out of stock

92033

RING-SNAP

92033-Y002

1
Out of stock

92033A

RING-SNAP

92033-Y003

1
Out of stock

92033B

RING-SNAP

92033-Y004

1
Out of stock

92043

PIN

92043-Y002

1
Out of stock

92055

RING-O

92055-Y001

1
Out of stock

92055A

RING-O

92055-Y016

1
Out of stock

92063

JET-MAIN

92063-Y002

1
Out of stock

92145

SPRING

92145-Y002

1
Out of stock

92145A

SPRING

92145-Y003

1
Out of stock

92145B

SPRING

92145-Y004

1
Out of stock

92172

SCREW,DRAIN

92172-Y001

1
Out of stock

92172A

SCREW

92172-Y012

1
Out of stock

92172B

SCREW

92172-Y013

1
Out of stock

92172C

CLAMP

92172-Y022

1
Out of stock

92172D

CLAMP

92172-Y023

1
Out of stock

92192

TUBE,ASSY

92192-Y006

1
Out of stock

92192A

TUBE

92192-Y011

1
Out of stock
