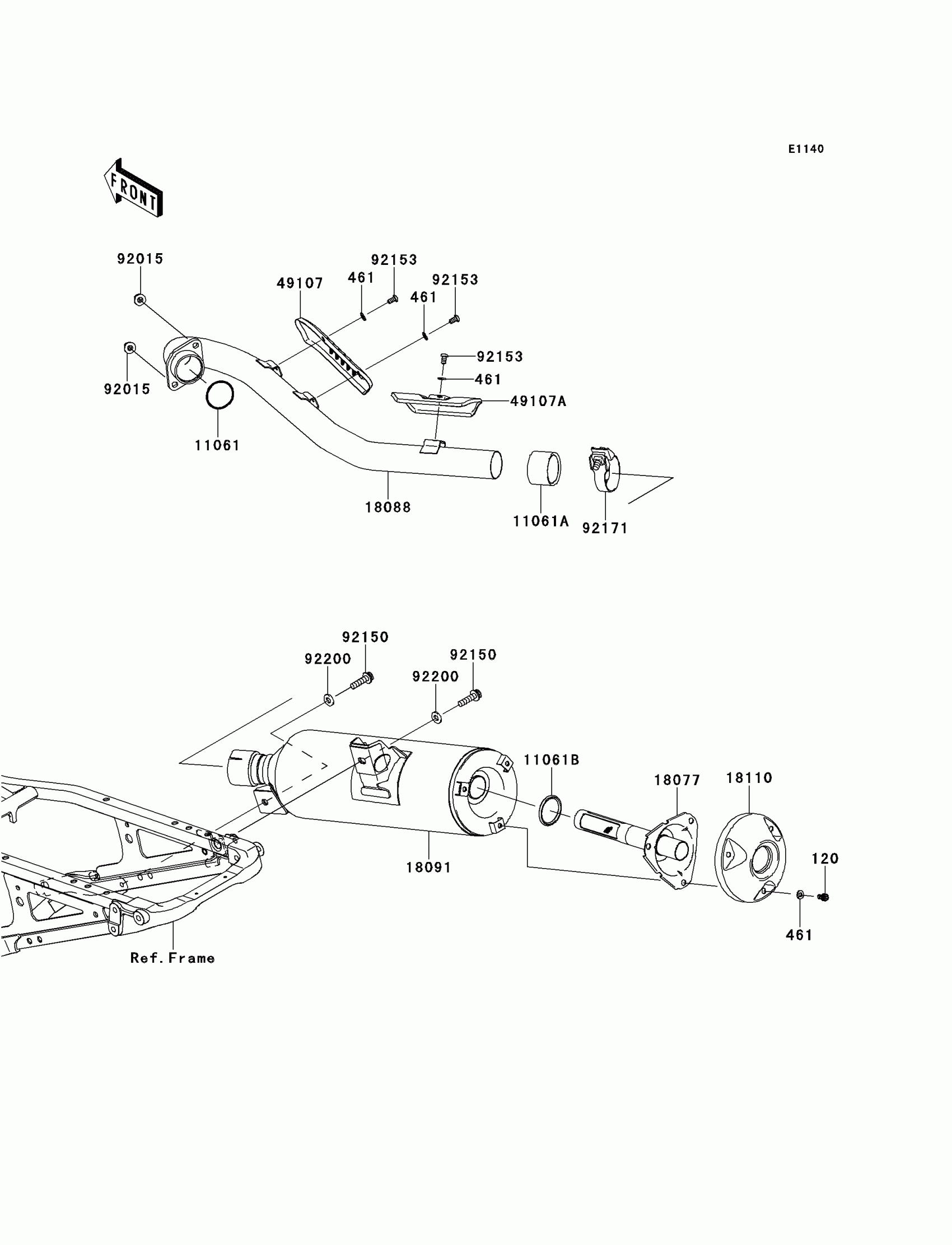

Kawasaki KFX®450R Muffler(s) Diagram

Description

Price

120

BOLT-SOCKET,6X10

120CC0610

$1.93

461

WASHER-SPRING,6MM

461S0600

$0.84

11061

GASKET,38.9X46.4X3.0

11061-0082

$5.80

11061A

GASKET,41.0X48.7X32.0

11061-0226

$31.22

11061B

GASKET,ARRESTER

11061-0298

$13.42

18077

ARRESTER-SPARK

18077-0001

$77.96

18088

PIPE-EXHAUST

18088-0481

$420.71

18091

BODY-COMP-MUFFLER

18091-0446

$379.01

18110

BODY END-MUFFLER

18110-0051

$67.95

49107

COVER-EXHAUST PIPE,FR

49107-0078

$55.87

49107A

COVER-EXHAUST PIPE,RR

49107-0111

$67.33

92015

NUT,8MM

92015-1402

$3.57

92150

BOLT,SOCKET,8X30

92150-1156

$4.97

92153

BOLT,SOCKET,6X11

92153-1863

$1.93

92171

CLAMP

92171-0653

$23.49

92200

WASHER,8.5X18X2.3

92200-1213

$1.85
