2010 Kawasaki KFX®450R Gear Change Drum/shift Fork Diagram

← All diagrams

Find the part on the Gear Change Drum/shift Fork diagram for your 2010 Kawasaki KFX®450R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

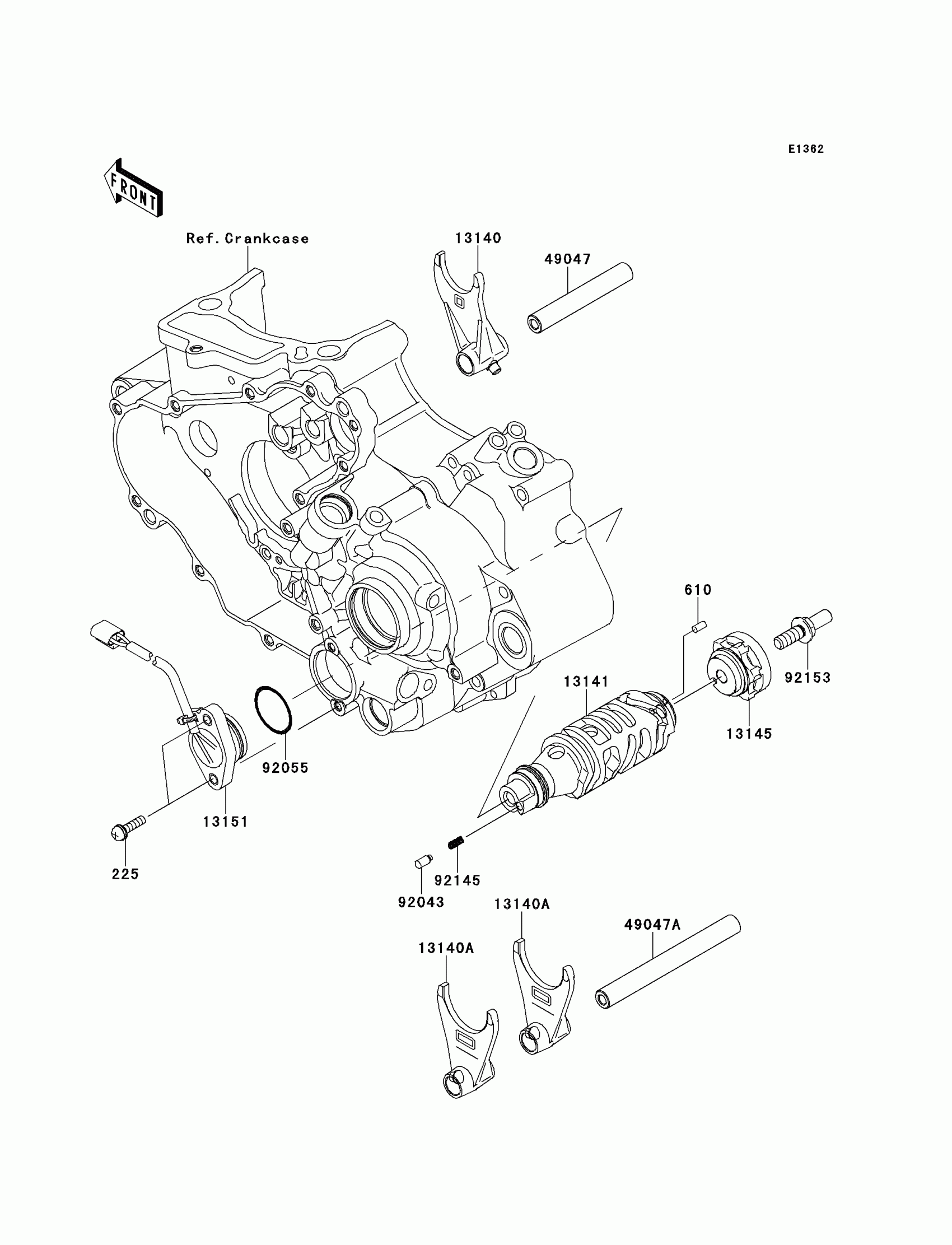

2010 Kawasaki KFX®450R Gear Change Drum/shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

225

SCREW-PAN-WSP-CROS,5X20

225AA0520

1
Out of stock

610

ROLLER,4X8

610A0408

1
Out of stock

13140

FORK-SHIFT,IN

13140-0034

1
Out of stock

13140A

FORK-SHIFT,OUT

13140-0035

1
Out of stock

13141

DRUM-CHANGE

13141-0037

1
Out of stock

13145

CAM-CHANGE DRUM

13145-0022

1
Out of stock

13151

SWITCH-COMP

13151-0038

1
Out of stock

49047

ROD-SHIFT,IN

49047-0024

1
Out of stock

49047A

ROD-SHIFT,OUT

49047-0025

1
Out of stock

92043

PIN

92043-1654

1
Out of stock

92055

RING-O,27.7X2.4

92055-091

1
Out of stock

92145

SPRING

92145-1414

1
Out of stock

92153

BOLT,8X20

92153-0530

1
Out of stock
