2004 Kawasaki KFX 250 Mojave Owner's Tools Diagram

← All diagrams

Find the part on the Owner's Tools diagram for your 2004 Kawasaki KFX 250 Mojave, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

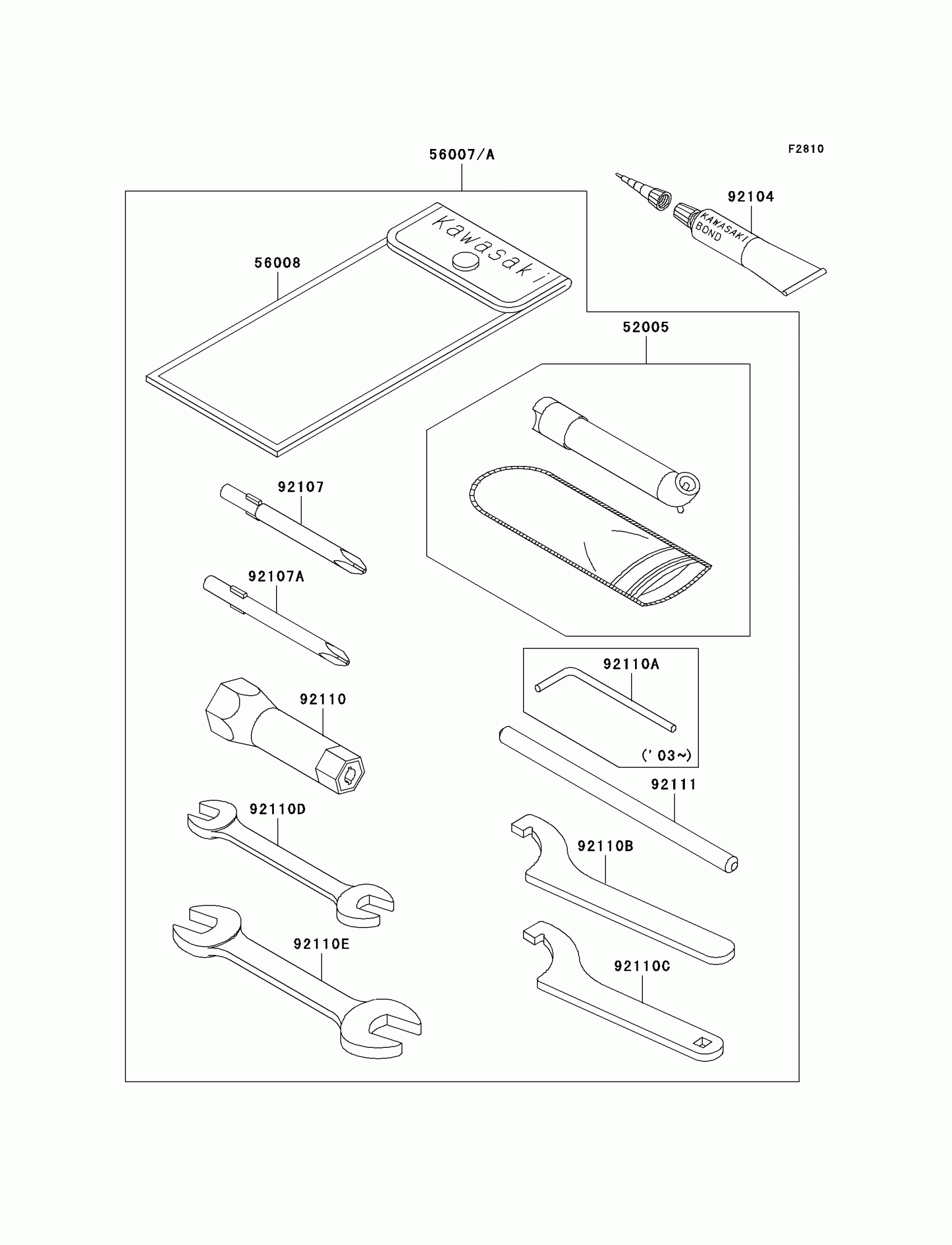

2004 Kawasaki KFX 250 Mojave Owner's Tools Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

52005

GAUGE,AIR

52005-1082

1
Out of stock

56007A

TOOL-KIT

56007-1495

1
Out of stock

56008

BAG,TOOL

56008-1007

1
Out of stock

92104

GASKET-LIQUID,TB1105B,SILVER

92104-002

1
Out of stock

92107

TOOL-DRIVER,#3PHILLIPS

92107-005

1
Out of stock

92107A

TOOL-DRIVER,#2PHILLIPS

92107-1053

1
Out of stock

92110

TOOL-WRENCH,BOX,18MM

92110-1111

1
Out of stock

92110A

TOOL-WRENCH,ALLEN,3MM

92110-1140

1
Out of stock

92110B

TOOL-WRENCH,HOOK

92110-1143

1
Out of stock

92110C

TOOL-WRENCH,HOOK

92110-1144

1
Out of stock

92110D

TOOL-WRENCH,OPEN END,10X12

92110-1152

1
Out of stock

92110E

TOOL-WRENCH,OPEN END,14X17

92110-1153

1
Out of stock

92111

TOOL-BAR,8X150

92111-1053

1
Out of stock
