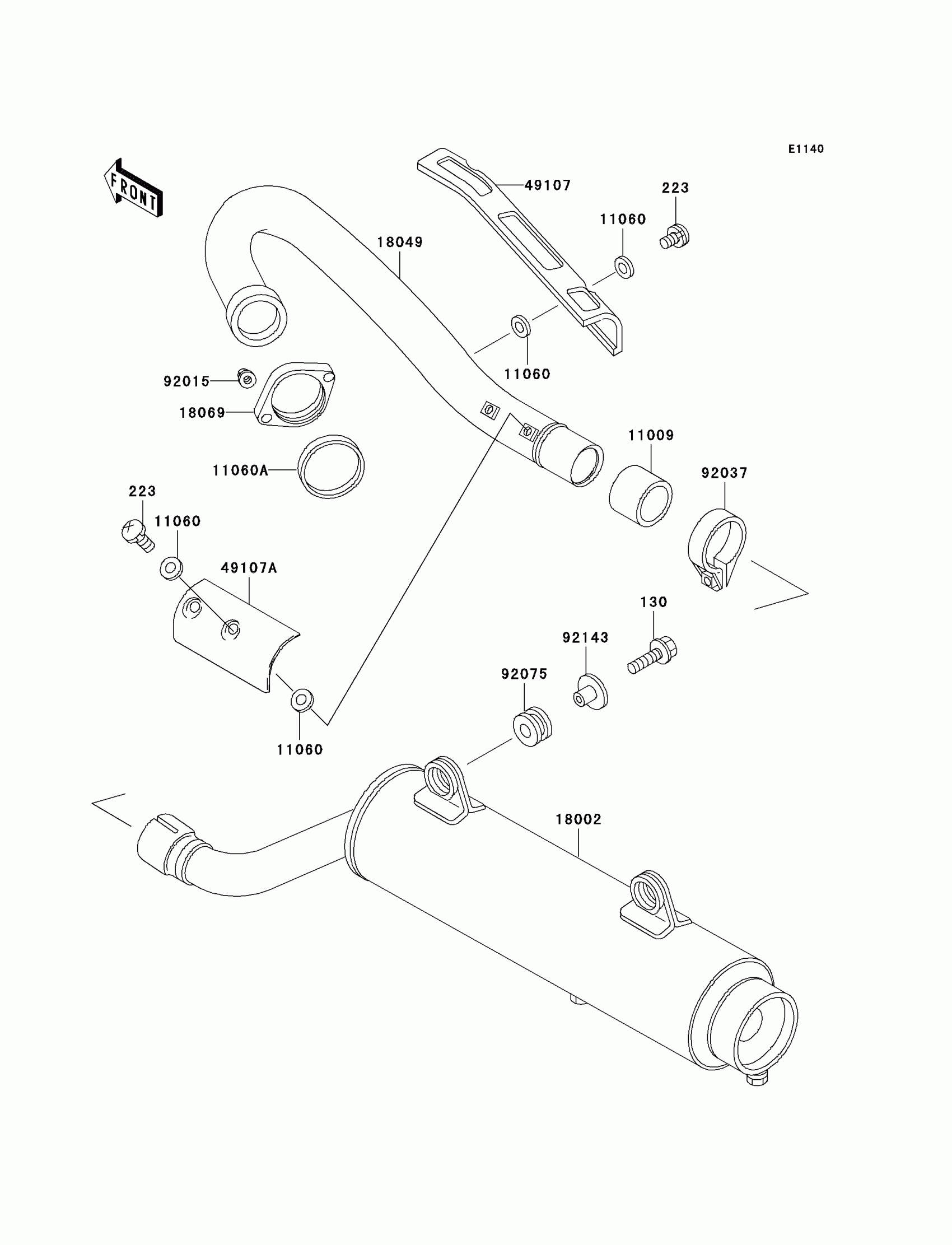

Kawasaki KFX 250 Mojave Muffler(s) Diagram

Description

Price

130

BOLT-FLANGED,8X30

130J0830

Unavailable

223

SCREW-PAN-WS-CROS

223C0610

$3.14

11009

GASKET,EXHAUST PIPE CONNECTING

11009-1667

$18.50

11060

GASKET,6.2X11.5X1.5

11060-1109

$3.49

11060A

GASKET,EXHAUST PIPE

11060-1126

Unavailable

18002

BODY-COMP-MUFFLER

18002-1678

$546.60

18049

PIPE-EXHAUST

18049-1381

$117.89

18069

HOLDER-EXHAUST PIPE

18069-1058

$50.21

49107

COVER-EXHAUST PIPE,FR

49107-1071

Unavailable

49107A

COVER-EXHAUST PIPE,RR

49107-1072

Unavailable

92015

NUT,8MM

92015-1402

$3.57

92037

CLAMP,42MM

92037-1349

$9.84

92075

DAMPER RUBB TANK FRNT

92075-013

$3.76

92143

COLLAR

92143-1946

$5.97
