1979 Kawasaki KE250-B3 Front Hub/brake Diagram

← All diagrams

Find the part on the Front Hub/brake diagram for your 1979 Kawasaki KE250-B3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

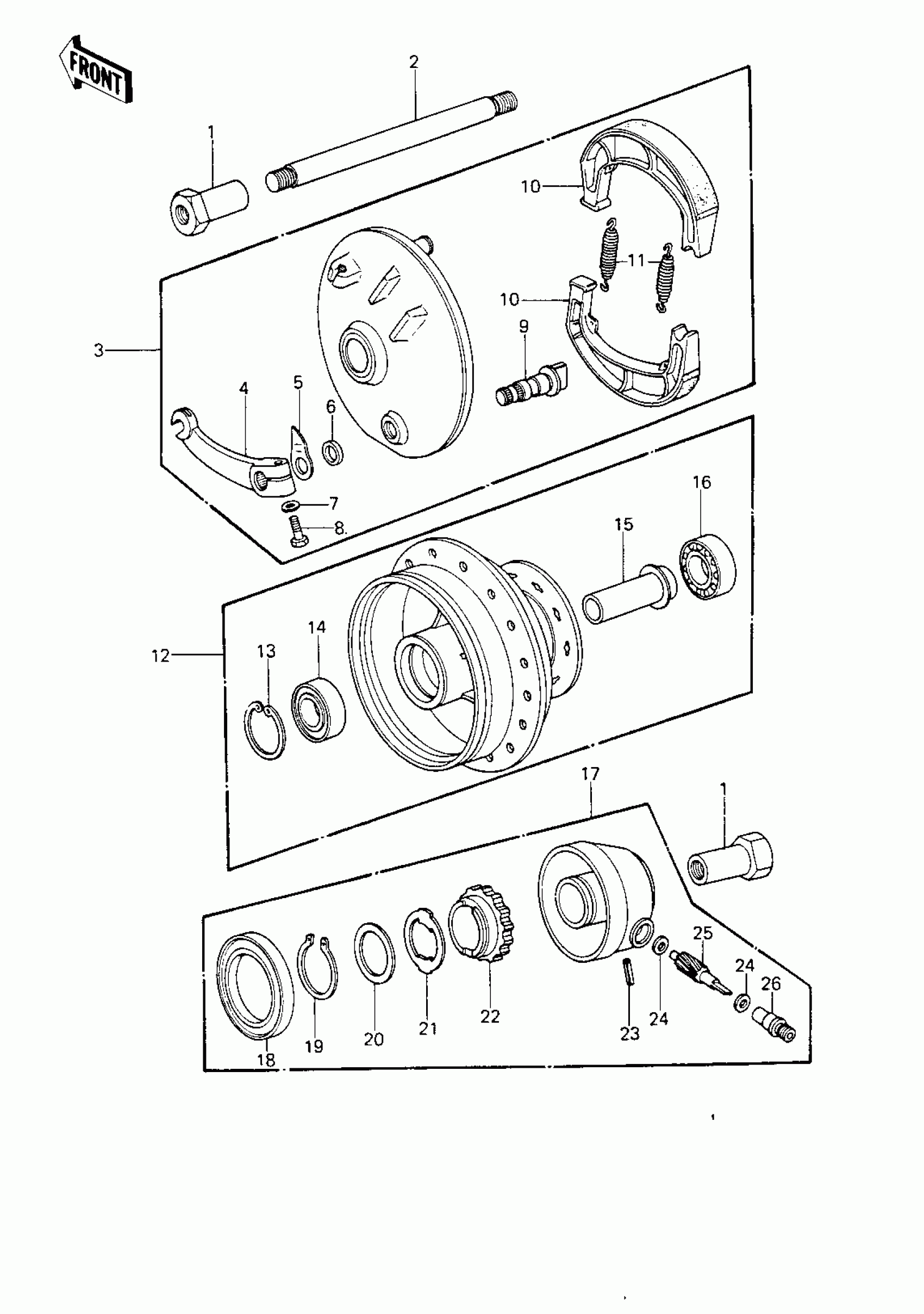

1979 Kawasaki KE250-B3 Front Hub/brake Diagram

#

Description
Price
Status
Order Qty

1

COLLAR,FRONT AXLE

41069-031

Out of stock

2

AXLE,FRONT

41068-048

Out of stock

3

PANEL-ASY,FR BRK

41035-082

$203.81

In stock

4

LEVER,BRAKE CAM

41053-028

$31.49

In stock

5

INDICATOR,FR BRK SHOE

41085-017

Out of stock

6

SEAL,BRAKE CAM

41051-001

$3.39

In stock

7

WASHER-PLAIN-SMALL,6MM

410B0600

Out of stock

8

BOLT-UPSET

112G0625

Out of stock

9

CAM SHAFT,BRAKE

42026-027

Out of stock

10

SHOE-BRAKE

41048-1068

$24.30

In stock

11

SPRING,BRAKE SHOE

42020-004

Out of stock

12

DRUM-ASSY,FR BRK

41034-052

$236.20

In stock

13

RING-SNAP,42MM

92033-1041

Out of stock

14

BEARING,FRONT DRUM

92045-033

Out of stock

15

$9.88

In stock

16

BEARING-BALL,#6302C3

601B6302

Out of stock

17

CASE-ASSY-METER GEAR

41078-011

Out of stock

18

OIL SEAL,#50659

654A506509

Out of stock

19

CIRCLIP-TYPE-C,24MM

480J2400

Out of stock

20

WASHER,24.5X32X0.8

41065-005

Out of stock

21

RECEIVER-SPEEDOMETER

41064-015

Out of stock

22

GEAR-METER SCREW

41059-027

Out of stock

23

PIN,SPRING

41082-001

Out of stock

24

WASHER,5.1X9X0.4

41063-001

$4.17

In stock

25

GEAR-METER SCREW,8T

41060-015

Out of stock

26

$18.66

In stock
