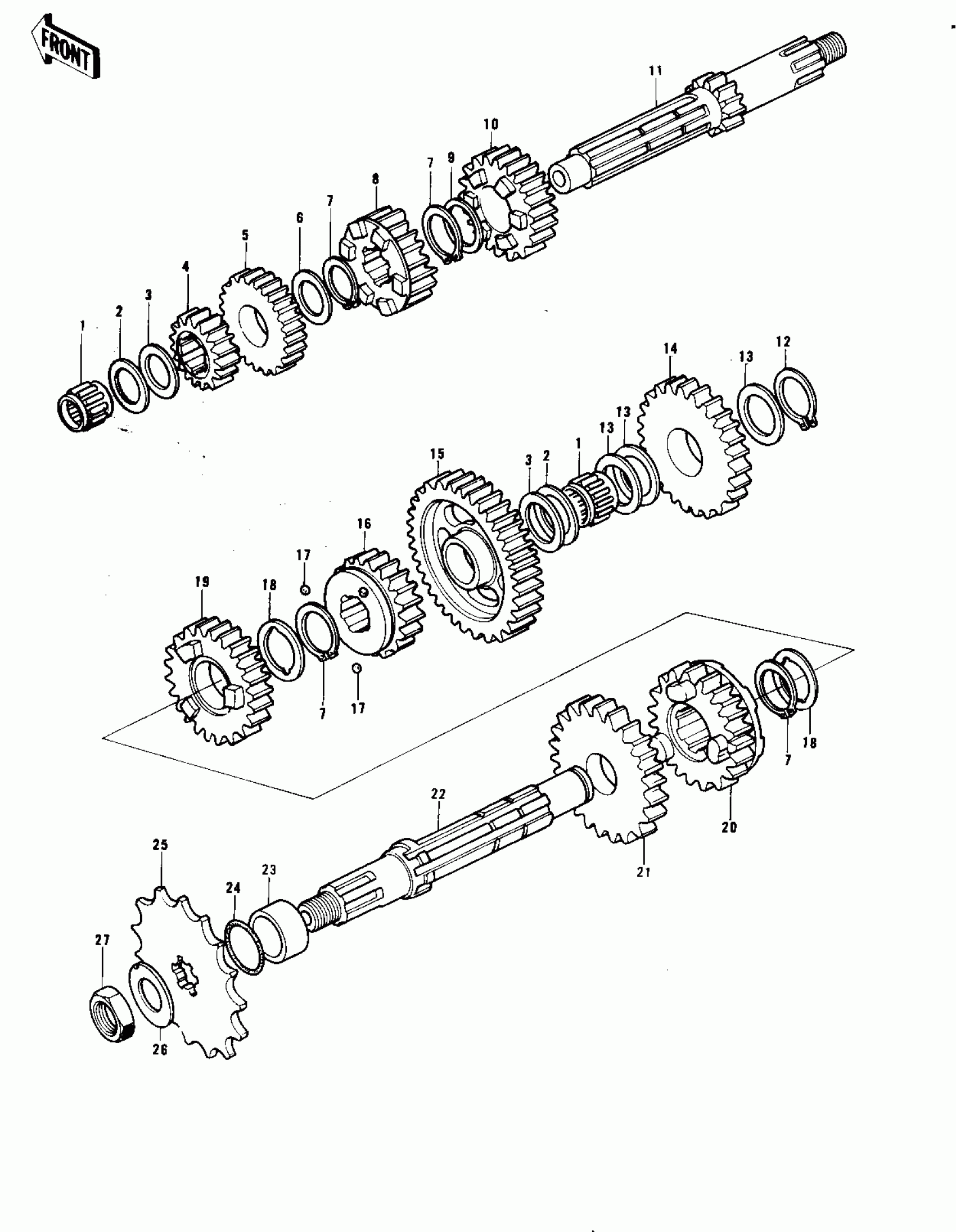

Kawasaki KE175 TRANSMISSION Diagram

#

Description
Price

1

BEARING-NEEDLE,#7E-HKS162412-1

92046-026

$22.22

2

WASHER,THRUST,16.5X28X1

92022-170

$9.02

3

WASHER-THRUST

92022-171

Unavailable

4

2ND GEAR-DRIVE

13130-024

Unavailable

5

4TH GEAR,DRIVE

13134-023

Unavailable

6

WASHER,22.5X30X2.6

92022-181

Unavailable

7

CIRCRIP TYPE-C,21MM

480J2100

$4.63

8

3RD GEAR-DRIVE

13132-022

Unavailable

9

WASHER 22MM

92022-106

$4.08

10

TOP GEAR,DRIVE

13136-052

Unavailable

11

SHAFT-DRIVE

13127-029

Unavailable

12

CIRCLIP-TYPE-C,15MM

480J1500

$1.85

13

WASHER,16.5X28X0.5

92022-169

$3.97

14

IDLE GEAR-KICKSTARTER

13073-009

Unavailable

15

LOW GEAR,OUTPUT SHAFT

13129-051

Unavailable

16

TOP GEAR,OUTER

13137-034

Unavailable

17

BALL-STEEL,5/32

600A0500

$0.80

18

WASHER-LOCK

92024-031

$5.81

19

3RD GEAR-OUTPUT

13133-021

Unavailable

20

4TH GEAR,OUTER

13135-029

Unavailable

21

2ND GEAR-OUTPUT

13131-029

Unavailable

22

SHAFT-OUTPUT

13128-028

Unavailable

23

COLLAR-ENG SPROCKET

92027-180

$41.31

24

RING-O,17.5X1.5

92055-022

$4.93

25

SPROCKET-OUTPUT,14T

13144-1058

Unavailable

25

SPROCKET-OUTPUT,14T

13144-1058

Unavailable

25

ENGINE SPROCKET,13T

13144-053

Unavailable

25

SPROCKET-OUTPUT,15T

13144-054

$52.01

26

WASHER LOCK 12MM

92024-002

$4.61

27

NUT,12MM

92016-024

Unavailable
