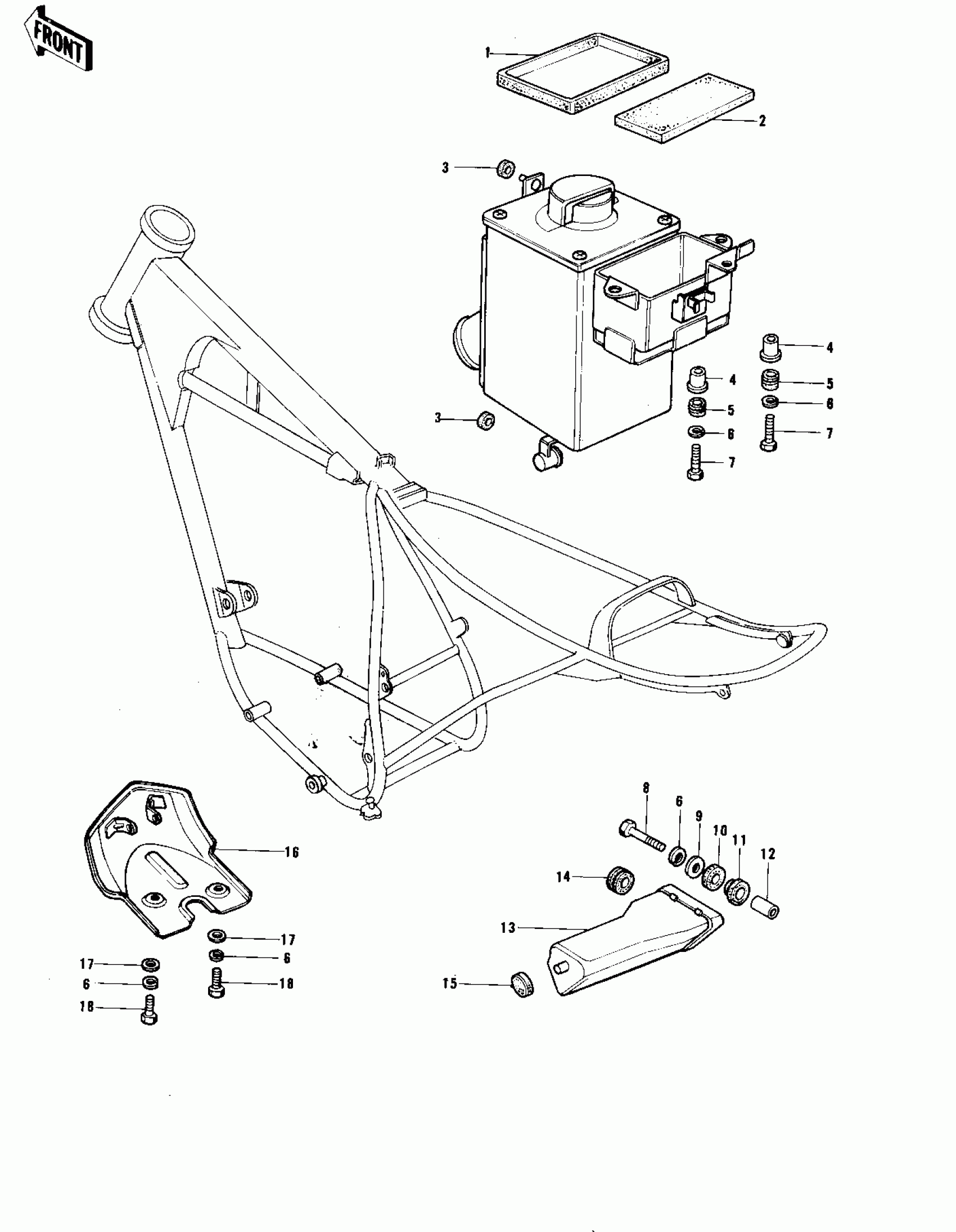

Kawasaki KE175 TOOL CASE Diagram

#

Description
Price

1

DAMPER,BATTERY BOTTOM

32103-023

Unavailable

2

DAMPER,BATTERY

32103-027

$11.41

3

DAMPER RUBBER,CLENER

92075-217

$3.92

4

COLLAR

92027-153

$4.93

5

DAMPER RUBBER

92075-051

$2.34

6

WASHER SPRING 6MM

461F0600

Unavailable

7

BOLT-UPSET,6X16

112G0616

Unavailable

8

BOLT-UPSET

112G0625

Unavailable

9

WASHER,7X24X1.6

92022-228

$3.12

10

DAMPER,FEMALE

92075-175

$3.49

11

RUBBER,FENDER COVER

92075-174

$3.80

12

COLLAR,6.8X10X12

92027-162

$5.21

13

CASE,TOOL

32098-022

Unavailable

14

DAMPER RUBBER-OIL TNK

92075-150

Unavailable

15

DAMPER RUBBER

92075-107

Unavailable

16

GUARD,ENGINE

55011-023

$40.05

17

WASHER,6.5X20X1.6

92022-125

$1.25

18

BOLT-UPSET,6X16

112G0616

Unavailable
