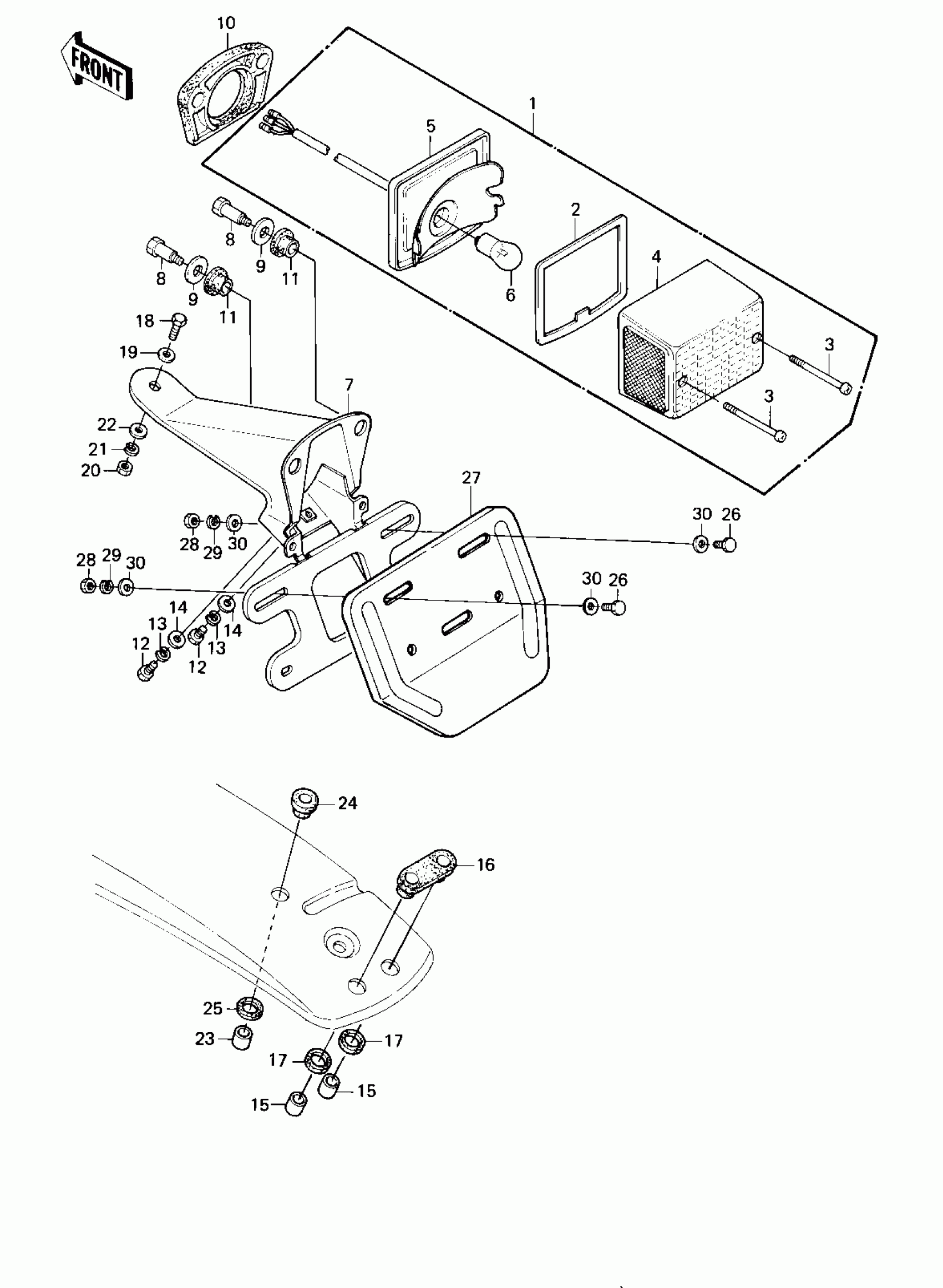

Kawasaki KE175 TAILLIGHT ('80-'81 KE175-D2/D3) Diagram

#

Description
Price

1

LAMP UNIT TAIL WHN EXH USE

23025-1006

Unavailable

1

LAMP-TAIL

23025-1032

Unavailable

2

GASKET,TAIL LAMP LENS

11009-1078

$7.44

3

SCREW-PAN-CROS,4X40

220R0440

Unavailable

4

LENS,TAIL LAMP

23026-1003

Unavailable

5

BODY-COMP-TAIL LAMP

23027-1020

$96.26

5

BODY-COMP-TAIL LAMP

23027-1020

$96.26

6

BULB,6V 32/3CP

92069-074

Unavailable

7

BRACKET-TAIL LAMP

23036-1010

Unavailable

8

BOLT,HEX HEAD

92001-1118

Unavailable

9

WASHER,8.5X20X1.6

92022-1561

$3.43

10

DAMPER,TAIL LAMP

92075-1094

Unavailable

11

DAMPER

92075-1095

$3.63

12

BOLT-UPSET

112G0630

Unavailable

13

WASHER SPRING 6MM

461F0600

Unavailable

14

WASHER,6.5X20X1.6

92022-125

$1.25

15

COLLAR,6.8X10X14.5

92027-156

$3.97

16

DAMPER,TAIL LAMP

92075-1005

Unavailable

17

DAMPER,RUBBER

92075-310

Unavailable

18

BOLT-UPSET

112G0630

Unavailable

19

WASHER PLAIN 6MM

411B0600

Unavailable

20

NUT 6MM

311B0600

Unavailable

21

WASHER SPRING 6MM

461F0600

Unavailable

22

WASHER,6.5X20X1.6

92022-125

$1.25

23

COLLAR,2.5X5X9.8

92027-256

$4.92

24

DAMPER,TAIL LAMP

92075-1004

Unavailable

25

DAMPER,RUBBER

92075-310

Unavailable

26

BOLT-UPSET,6X20

112G0620

Unavailable

27

BRACKET,LICENSE PLATE

11034-1117

Unavailable

28

NUT 6MM

311B0600

Unavailable

29

WASHER SPRING 6MM

461F0600

Unavailable

30

WASHER,6.5X20X1.6

92022-125

$1.25
