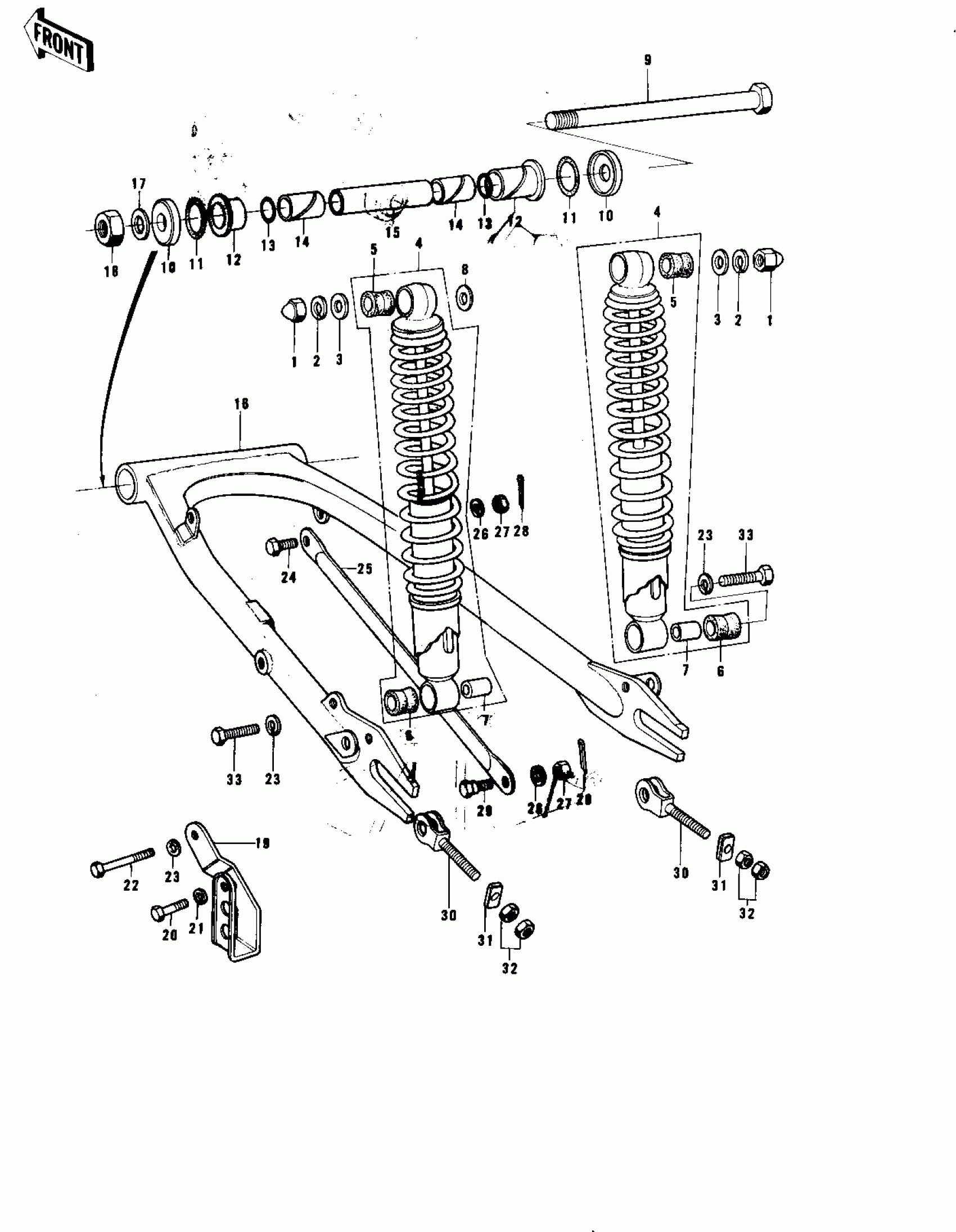

Kawasaki KE175 SWING ARM/SHOCK ABSORBERS Diagram

#

Description
Price

1

NUT,CAP,10MM

92020-003

$5.16

2

WASHER SPRING 10MM

461F1000

Unavailable

3

WASHER,10.5X26X2.3

92022-044

$3.12

4

SHOCK ABSBR RR

45014-113

$264.13

4

SHOCK ABSBR RR

45014-1017

$241.38

5

BUSH A-SHCK ABS RUBER

45017-010

Unavailable

6

DAMPER,SHOCKABSORBER

92075-1020

$4.34

6

DAMPER,SHOCKABSORBER

92075-1020

$4.34

7

COLLAR,SHOCKABSORBER

45016-003

$15.05

8

WASHER-PLAIN-SMALL,12MM

410B1200

Unavailable

9

SHAFT-SWING ARM

33032-034

Unavailable

10

CAP-SWINGING ARM

33035-005

Unavailable

11

"0" RING,30MM

671B2530

$4.01

12

BUSHING-SWING ARM

33033-009

$103.86

13

O RING,16MM

670B2016

$1.20

13

"0" RING,16MM

92055-001

Unavailable

14

SLEEVE-SWINGING ARM

33034-016

$21.36

15

COLLAR,SWING ARM,LONG

33036-007

$9.49

16

SWING ARM

33001-080

$169.64

17

WASHER-PLAIN-SMALL,12MM

410B1200

Unavailable

18

NUT-LOCK,12MM

92019-009

$7.20

19

GUARD,CHAIN

55020-016

Unavailable

20

BOLT-SMALL-UPSET,8X16

115G0816

Unavailable

21

WASHER SPRING 8MM

461F0800

Unavailable

22

BOLT,HEX HEAD,10X50

92001-1254

Unavailable

23

WASHER SPRING 10MM

461F1000

Unavailable

24

BOLT,HEX HEAD,AX24

92003-143

Unavailable

25

TORQUE LINK,REAR BRK

43007-039

Unavailable

26

WASHER SPRING 8MM

461F0800

Unavailable

27

NUT,8MM

320B0800

Unavailable

28

PIN-COTTER,2.0X20

550D2020

Unavailable

29

BOLT,RR TORQUE LINK

92003-144

Unavailable

30

ADJUSTER,CHAIN

33040-073

Unavailable

31

PLATE,CHAIN ADJUSTER

33041-005

$8.64

32

NUT,8MM

311B0800

Unavailable

33

BOLT HEX HEAD 10X35

113N1035

Unavailable
