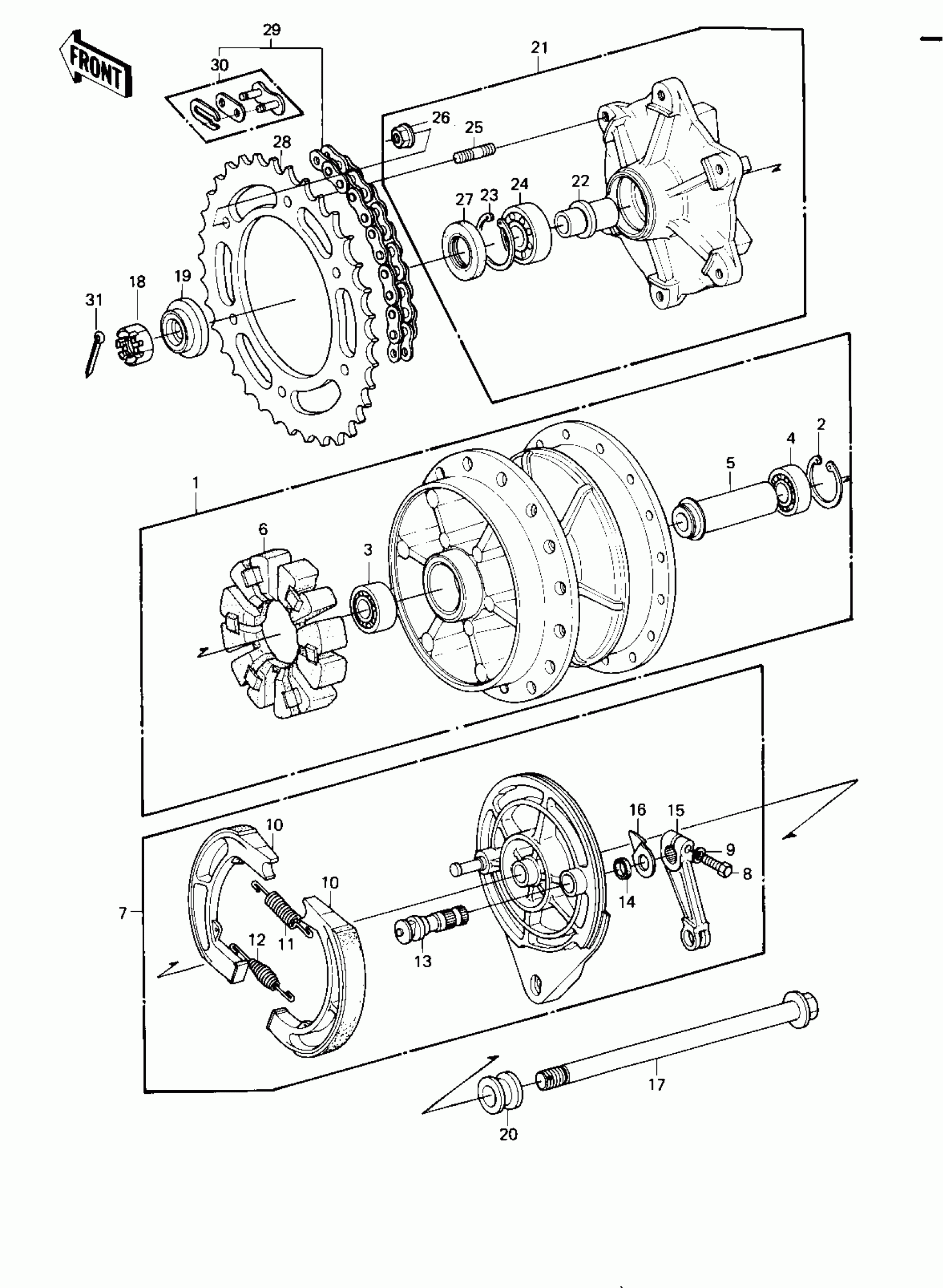

Kawasaki KE175 REAR HUB/BRAKE/CHAIN ('80-'81 KE175-D2/D Diagram

#

Description
Price

1

DRUM-ASSY,RR BRK

41034-1015

$310.13

2

CIRCLIP-TYPE-C,35MM

481J3500

$1.64

3

BEARING-BALL,#6202C3

601B6202

$6.86

4

BEARING-BALL,#6202UC3

601B6202U

$16.17

5

COLLER,REAR BRAKE

92027-1099

$20.00

6

DAMPER,SHOCK,RR HUB

92075-1068

$43.39

7

PANEL-ASY,RR BRK

41035-1017

$330.71

8

BOLT-UPSET

112G0625

Unavailable

9

WASHER-PLAIN-SMALL,6MM

410B0600

$1.19

10

SHOE BRAKE

41048-1012

$30.45

11

SPRING,BRAKE SHOE

92081-1766

$6.39

12

SPRING,BRAKE SHOE

92081-1550

$9.20

13

CAM,BRAKE,REAR

41050-1011

Unavailable

14

SEAL,BRAKE CAM

41051-001

$3.39

15

LEVER,BRAKE CAM,REAR

41053-1013

$57.81

16

INDICATOR,FR BRK SHOE

41085-017

Unavailable

17

AXLE,RR,L=266

41068-1103

$92.98

17

AXLE,RR,L=266

41068-1103

$92.98

18

NUT,14MM

92015-1407

$7.86

18

NUT,CASTLE,14MM

42045-020

$7.80

19

COLLAR,REAR AXLE,L.H

92027-1100

$31.12

20

COLLAR,REAR AXLE,R.H

92027-1101

$7.53

21

COUPLING ASSY,RR HUB

42033-1007

$143.75

22

SLEEVE,RR HUB COUPLIN

42036-1020

Unavailable

23

RING-SNAP,42MM

92033-1041

$4.88

24

BEARING-BALL,#6004C3

601B6004

$9.84

25

STUD,8X17

92004-1015

Unavailable

26

NUT,FLANGED,8MM

92015-1022

$0.53

27

SEAL-OIL,26X42X8

92050-060

$16.98

28

SPROCKET,REAR,44T

42041-1050

$80.68

29

CHAIN,DR.EK428SHX116L

92057-1096

$132.17

30

JOINT-CHAIN

92058-1015

Unavailable

31

PIN-COTTER,3.0X30

550D3030

$2.08
