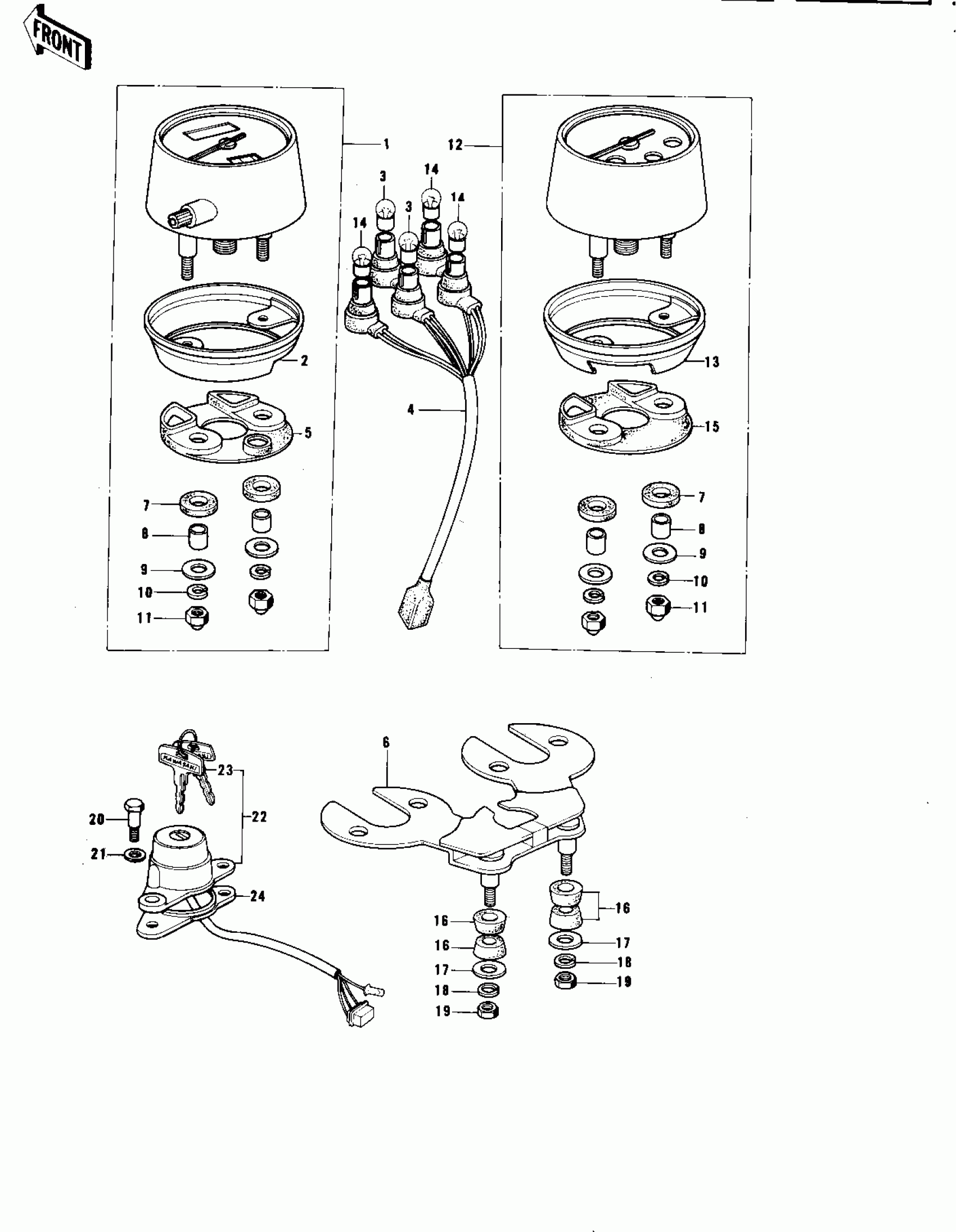

Kawasaki KE175 METERS/IGNITION SWITCH Diagram

#

Description
Price

1

SPEEDOMETER ASSY

25006-051

$205.39

1

*** N.L.A.*** (Canada)

25006-059

$165.40

2

COVER-SPEEDOMETER

25012-017

$36.00

3

BULB,6V 1.7W

92069-024

$3.80

4

SOCKET,SPEEDOMETER

25011-038

$44.46

5

SHOCK DAMPER,METER

25019-018

Unavailable

6

BRACKET,METER

25008-034

$69.87

7

DAMPER RUBBER,METER

25019-019

Unavailable

8

COLLAR,METER FITTING

25021-004

$4.63

9

WASHER,5.2X18X1.2

92022-285

$7.75

10

WASHER SPRING 5MM

461F0500

Unavailable

11

NUT-CAP,5MM

322N0500

Unavailable

12

TACHOMETER ASSY

25027-010

$224.75

13

COVER,TACHOMETER

25012-018

Unavailable

14

BULB,6V 3W,CLEAR

92069-053

$3.33

15

DAMPER RUBBER,METER

25019-020

Unavailable

16

DAMPER RUBBER,METER

92075-248

Unavailable

17

WASHER,6.5X22X1.6

92022-237

$3.12

18

WASHER SPRING 6MM

461F0600

Unavailable

19

NUT 6MM

311B0600

Unavailable

20

BOLT-HEX HEAD,6MM

92007-026

Unavailable

21

WASHER PLAIN 8MM

410B0800

Unavailable

22

SWITCH,IGNITION

27005-077

$113.64

23

KEY SET #431

27008-054-31

$19.97

23

KEY SET #432

27008-054-32

$14.51

23

KEY SET #433

27008-054-33

$14.32

23

KEY SET # 434

27008-054-34

Unavailable

23

KEY SET #435

27008-054-35

$19.93

23

KEY SET #436

27008-054-36

Unavailable

23

KEY SET #437

27008-054-37

Unavailable

23

KEY SET #438

27008-054-38

$19.97

23

KEY SET #439

27008-054-39

Unavailable

23

KEY SET #440

27008-054-40

$14.32

23

KEY SET,#441

27008-054-41

$14.32

23

KEY SET,#442

27008-054-42

$19.93

23

KEY SET,#443

27008-054-43

$22.81

23

KEY SET,#444

27008-054-44

$12.03

23

KEY SET,#445

27008-054-45

$19.93

23

KEY SET,#446

27008-054-46

$12.07

23

KEY SET,#447

27008-054-47

$19.97

23

KEY SET,#448

27008-054-48

$19.81

23

KEY SET,#449

27008-054-49

Unavailable

23

KEY SET,#450

27008-054-50

$19.93

23

KEY-LOCK,BLANK

27008-1024

$20.31

23

KEY-LOCK,BLANK

27008-1025

$20.31

23

KEY,BLANK

27008-1026

Unavailable

23

KEY,BLANK

27008-1027

$16.97

24

DAMPER RUBBER

92075-077

$8.83
